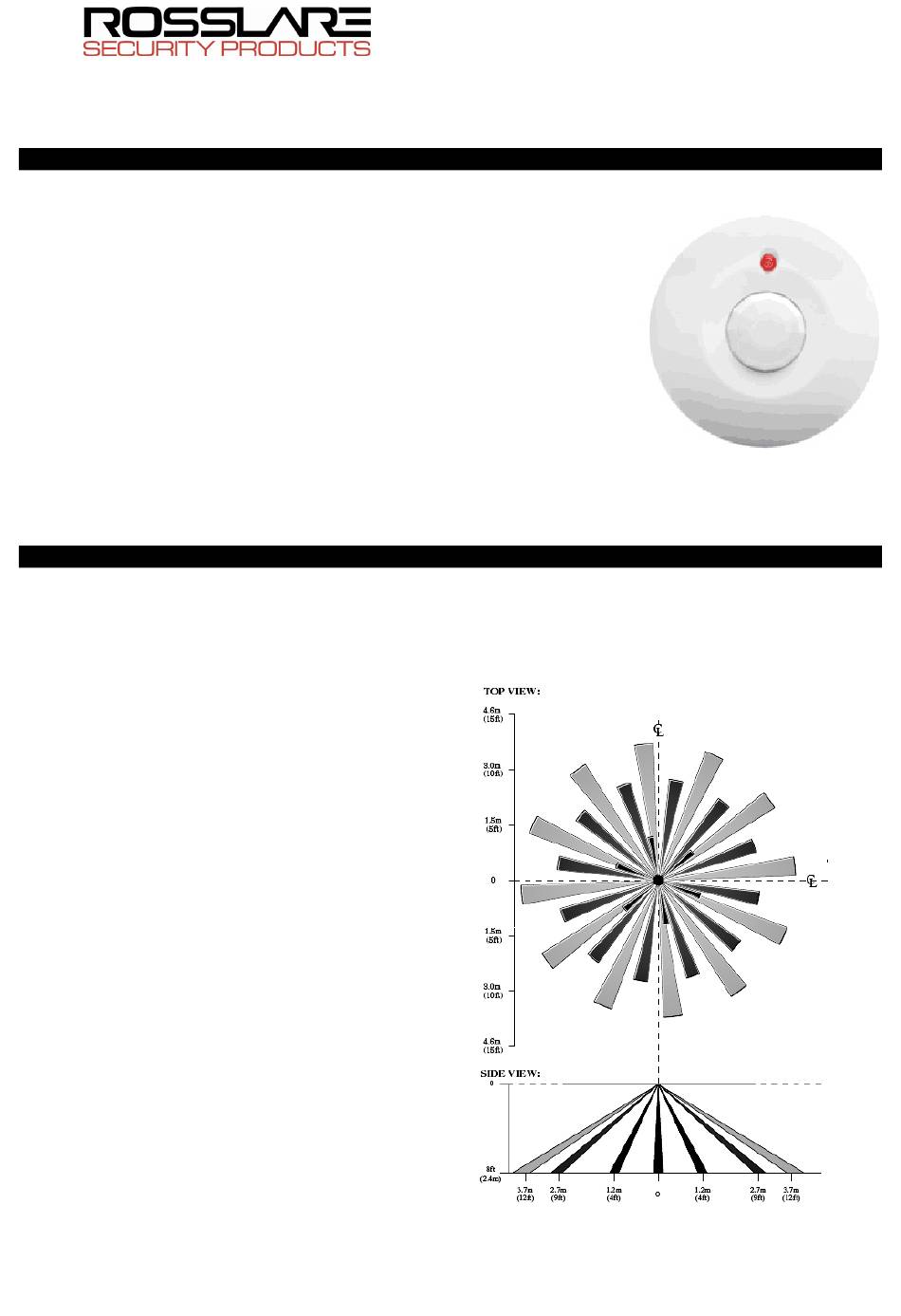

Rosslare PYR-3011 Installation Instructions

Installation Instructions
1.

Introduction

The PYR-3011 Digital Wireless Passive Infrared (PIR) ceiling-mount
motion detector is a high-performance, ultra low power intrusion
sensor with advanced design ideal for residential and commercial
applications. This unit works with Rosslare's control panels like
HomeLogiX™, which is wireless, and AuraSys™, which is wired. For
the PYR-3011 to work with AuraSys™, the AuraSys™ panel must
have the XR-16 wireless expansion.
The PIR senses slight motion within a coverage area by detecting
infrared energy with a Pyroelectric sensor. Serving as an anti-
intrusion sensor, the PIR can monitor open space within line of sight.
"Walk & Radio" test is an easy, as well as friendly, ceiling installation
that makes it very comfortable for placing and setting.
The PYR-3011 uses fuzzy logic to improve detections and reduce
false alarms.
It also provides digital temperature compensation and self-test
capability.
The PYR-3011 is supplied with front and back tampers for high
security.
As a wireless device, it includes a supervised mechanism as well as
a battery-checker and tamper announcement.
2.

Technical Specifications

2.1 Optical Characteristics
Lens Type: High density Polytilan lens
Optical Filter: White light protection
Maximum Coverage: 7m (23ft) diameter at 2.4M (7.874ft) height.
2.2 Electrical Characteristics
Battery type: CR123 (3V/1300mhA)
Current Consumptions: Standby 15µa, 10ma transmission.
Battery Life (nominal): 3 years (150tr/day)
Detector Type: Quad-matrix PYRO IR element (IR filter 5um÷14um)
Alarm Signaling: Red LED 2 seconds on (push button setting)
Events Transmission: Alarm, Tamper, Low battery.
Sensitivity: 3 levels fuzzy logic (jumper setting)
Speed Detect: 0.2m/s ÷ 3m/s ∆ t= 1.1°C (0.66 ft/s ÷ 9.84 ft /s ∆ t= 34°
F)
Temperature Compensation: Digital dual slope (+/- 1°C)
Tamper Switches: Back and front Cover tampers
Supervisory Signals: Electronic malfunction, temperature out of
range (by flashing LED)
Arming types:
Normal- 2 minutes sleep, followed by last alarm
Dynamic- 2 minutes sleep, followed by last movement
(retriggerable)
Test modes- walk test (no sleep) 1 min
Radio Test- 10 transmissions
2.3 RF Transmission Characteristics
Frequency: model H = 868.35 MHz; model G = 433.92 MHz
Range: 200 meters (656 ft) open field conditions
Supervision transmission: automatic, at 20-minute intervals
Self check: 3 hours from last alarm (retriggered)
2.4 Environmental Characteristics
Operating Environment: Indoor use
Operating Temperature: -10 to 60°C (14 to 140°F)
Operating Humidity: 0 to 95% (non-condensing)
RFI Protection: >20 V/m up to 1000 MHz
2.5
1
PYR-3011
Wireless Passive Infrared
Ceiling-Mount Motion Detector
Note 1: This product must be installed professionally, and has
only one available channel.
Note 2: Pursuant to
FCC §15.21 [ 54 FR 17714
, Apr. 25, 1989, as
amended at 68 FR
68545 , Dec. 9, 2003],
changes or
modifications made to
equipment, which are
not expressly approved
by Rosslare Enterprises,
Ltd., may void the user's
authority to operate the
equipment.
Physical Characteristics
Dimensions top diameter x height x bottom diameter: 106 x 31 x 71
mm (4.2 x 1.2 x 2.8 inch)
Weight: 106 grams (3.8 oz)
Note: The PYR-3011 is an indoor use PIR, and should not be
used in outdoor applications.
