Rosslare AS-36 Installation Instructions

Installation Instructions
1. Introduction
The AS-36 maximum heat detector sounds an alarm
whenever the unit temperature reaches 55±2ºC. The
unit is supplementary to smoke detectors and should be
placed only in areas where smoke detectors cannot be
used. AS-36 is operated by a single 9V battery, which
can sustain the unit's operation for up to 1 year.
AS-36 has an 85-decibel horn, test button, and an alarm
LED indicator. The AS-36 heat detector is ideal for
kitchens, garages, cellars, boiler rooms, attics and other
areas where there are normally high levels of fumes,
smoke or dust which preclude the use of smoke
detectors due to the risk of false alarms.
The detector can connect to Rosslare's security system
panel, or to any standard wireless security system. To
connect the AS-36 Maximum heat detector to a wired
or wireless system, mount it on Rosslare's SA-13G
(wireless; 433.92MHz), SA-13H (wireless, 868.35MHz), or
SA-13W (wired) base.
NOTE: A fully mounted unit (AS-36 + SA-13G/H/W)
is referred to as SA-36G/H (wireless) or SA-36W
(wired).
2. Technical Specifications
2.1 Electrical Characteristics
AS-36 Detector Current:
Standby: 10 µA
Maximum alarm: 150 mA
SA13G/H Base Current:
Standby: 16 µA
Transmitting: 16 mA
Transmitting distance: up to 200m in open
space
SA13W Base Current:
NC output:
Standby: 21 mA
Operating: 7 mA
NO output:
Standby: 10 mA
Operating: 23 mA
Battery:
1604A (9V Alkaline)
Battery Life:
1 year
Low Battery Detection:
3. Installation
The SA-36 is a heat detector; it can be operated as a
standalone unit or as an alarm system together with the
SA-13 wireless or wired base.
3.1 Wiring the SA-36W
For wiring instillations follow the instructions below.
To set and wire the SA-36W:
1. set the alarm output setting to either Normally
Open or Normally Closed using the select switch on
the SA-13W.
1
Last 7 days of battery life
AS-36/SA-36G/H/W
Maximum Heat Detector
NOTE: The AS-36 maximum heat detector is not
designed to serve as a substitute for a primary fire
detection system.

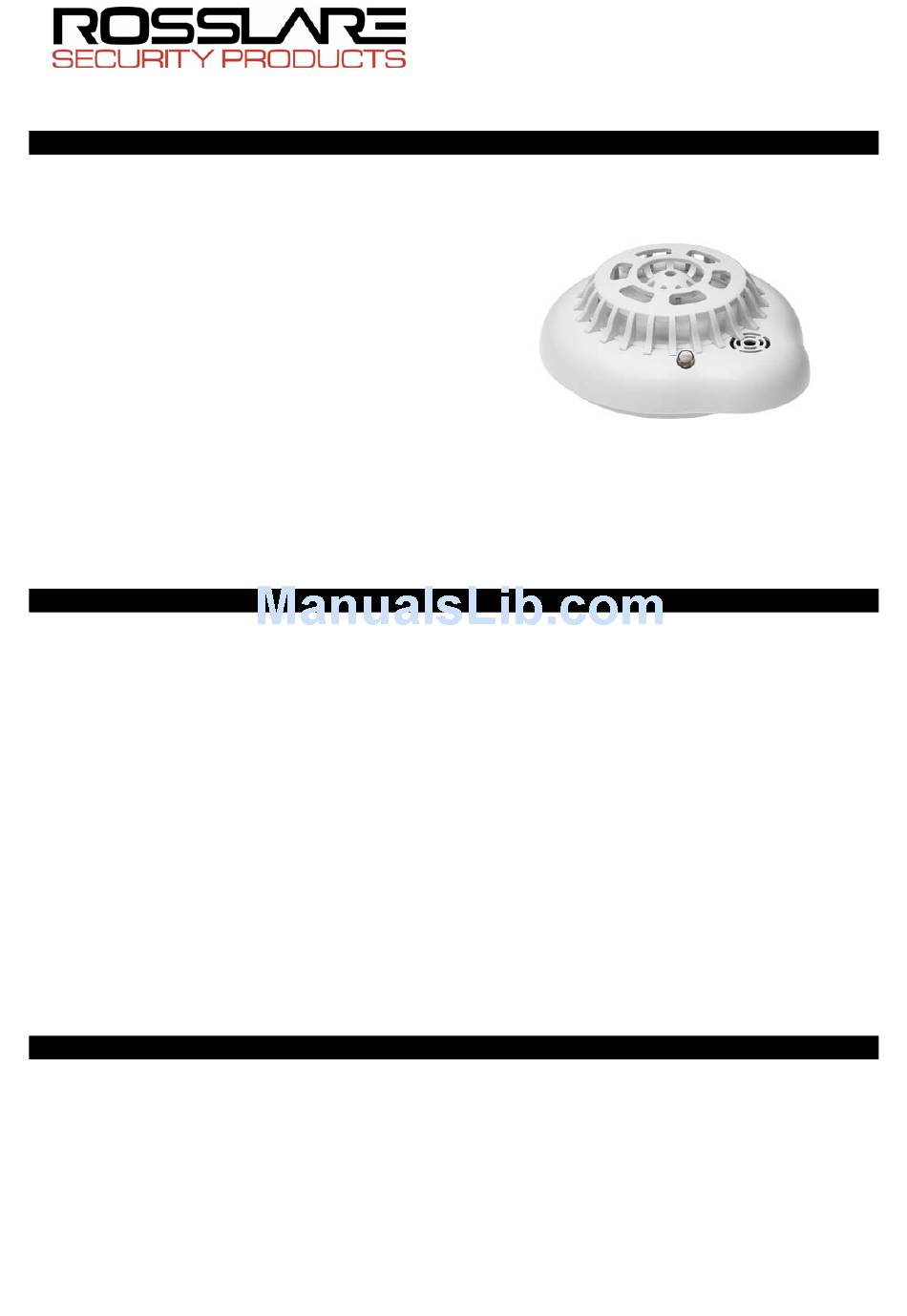

Figure 1: AS-36 Unit
2.2 Environmental Characteristics
Use Environment:
Indoor
Operating Temperature:
Operating Humidity:
10% to 90% non-condensing
2.3 Physical Characteristics
Sensitivity:
Alarm temperature 55±2ºC
Alarm Indication:
LED and siren
Indicators Siren Volume:
Dimensions:
AS-36:
SA-36G/H
SA-36W:
Weight:
AS-36:
SA-36G/H: 291.3g (10.27 oz)
SA-36W:
2. Connect the power between the Security Alarm
system and the SA-13W's Vin and ground terminal
blocks.
3. Connect the Tamper outputs to the Security Alarm
system's inputs
4. Connect the Alarm terminal blocks to the Security
Alarm system, refer to the installation manual of the
alarm system you are connecting the detector to.
0º–60ºC (32º–140º F)
85dB at 3m (10ft)
118.4 x 107 x 40 mm
4.66 x 4.21 x 1.57 inch
126.5 x 124 x 63.7 mm
4.98 x 4.88 x 2.5 inch
121 x 112.6 x 58.5 mm
4.76 x 4.43 x 2.3 inch
130g (4.59oz)
176g (6.2 oz)
