Rosslare SA-17 Installation Instructions

Installation Instructions
1. Introduction
The SA-17 Wireless Heat Detector is a supervised system for
detecting high temperatures and sudden temperature
increases within an area.
The detector can be used in any residential or commercial
location, requires no wiring and is fully equipped for RF wireless
control from a central security unit. The detector is easy to
install and powered by one 9V battery, giving a typical battery
life of one year.
Mount the detector on the SA-13 RF base. Using the SA-13's
wireless transmitter, the detector can connect to any standard
wireless security system. For best performance, Rosslare
recommend using the SA-17 with our custom designed
HomeLogiX and SP-03 wireless security panels. The SA-13 is
powered by an additional 9V battery.
The detector has anti-tampering sensors on its cover and back
plate, and sends a standard status message to its host security
panel every 20 minutes. When the unit's battery is running low,
2. Technical Specifications
2.1 Electrical Characteristics
Battery:
IEC 6LR61 (9V Carbon-Zinc) or
IEC 6LF22 or MN1604 (9V Alkaline)
Detector Current Standby: 10µA
Alarm State: 10–15mA
Transmitter Current
Standby: 16 µA
Transmitting: 16mA
Battery Life
1 year
Low Battery
Last 7 days of battery life
Detection
2.2 Environmental Characteristics
Environment
Operating Temperature:
Operating Humidity
3. Installation
The SA-17 is a single station detector and must not be
connected to other fire alarm systems.
3.1 Location
For full protection, every room should have a heat detector
fitted. At the very least, a home built on a single storey should
have at least one heat detector in the hall, close to all the
living areas, including bedrooms and kitchens. Ensure the alert
siren is audible from every room.
In a home with more than one storey, at least one heat
detector should be fitted on each landing and at the bottom
of the staircase.
3.2 Mounting the Detector
Before mounting the SA-17 Heat Detector, ensure that your
chosen mounting area is not in front of any electrical wiring or
pipe work.
1
Indoor Use
0°C–40°C (32°F –104°F)
10% to 90% Non-Condensing
SA-17
Wireless Rate-of-Rise Heat
Detector
the unit beeps, flashes its LED indicator and sends an alert
message to its host control panel.
NOTE: The SA-17 Heat Detector is not designed as a
substitute for a primary fire detection system.
2.3 Physical Characteristics
Alarm Temperature
Alarm Rate-of-Rise
Operation Indicators:
Siren Volume:
Dimensions:
Weight:
2.4 Standards
USA:
Europe:
Mark two mounting points in the wall, using the SA-13 mounting
bracket.
Drill into the marked points and insert wall plugs.
Screw the mounting bracket into the wall. Be careful not to
over-tighten the screws.
Insert a battery into the SA-17 Heat Detector and push down
the metal tab fully.
Attach the detector to the mounting bracket.
NOTE: Do not paint or cover the detector.

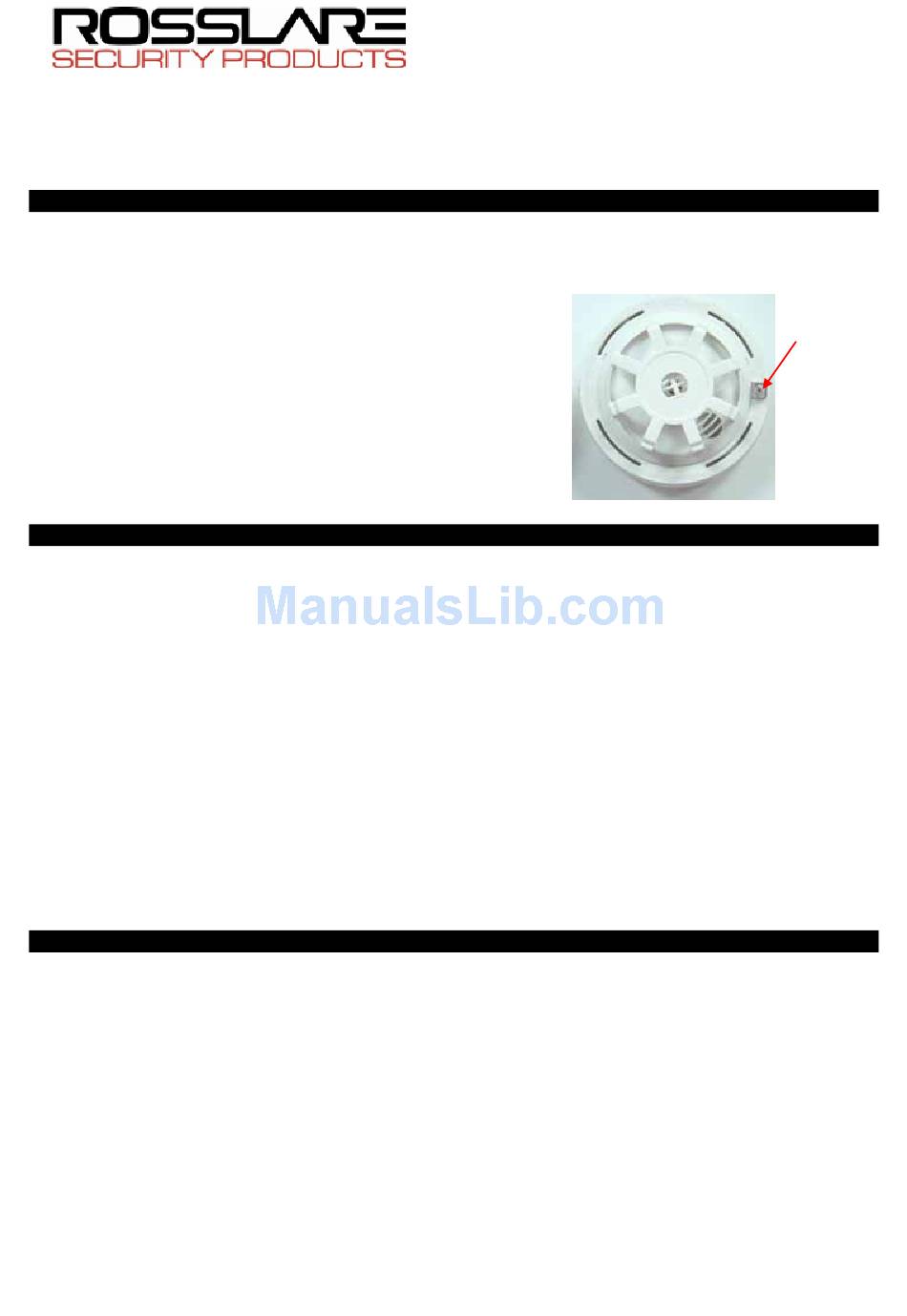

Test
Button
70°C ±5°C
12°C per minute
LED and siren
85dB at 3m (10ft)
48mm height, 107mm diameter
(1.89" height, 4.21" diameter)
206 grams (7.266 oz)
NFPA #74,
UL 217,
FCC
CE,
ETSI
