Rosslare SA-01P Installation Instructions

Installation Instructions
1. Introduction
The SA-01P Digital Wireless Pet Immune Passive Infrared (PIR)
Motion Detector is a high-performance ultra low power
intrusion sensor made with the highest level of SMD
components and microprocessor technologies, making it ideal
for both residential and commercial usage. This unit works with
Rosslare's control panels.
The PIR senses slight motion within a coverage pattern by
detecting infrared energy with a pyroelectric sensor. Serving as
an anti-intrusion sensor, the PIR can monitor open space within
line of sight while ignoring house pets and other small animals,
thus reducing false alarms significantly.
The SA-01P uses a pet lens with fuzzy logic implementing a
special algorithm to improve human detection while at the
same time ignoring pets and other small animals thus reducing
false alarms. It also provides digital temperature compensation
and self-test capability.
2. Technical Specifications
2.1 Optical Characteristics
Lens Type: Pet immune multi-zone, high density polytilan type
Optical Filter: White light protection
Maximum Coverage: 14 x 14 m (45.9 x 45.9 ft) 88°
Vertical Adjustment: By slot (+/- 2°)
2.2 Electrical Characteristics
Battery type: CR123 (3V/1300mAh)
Current consumptions : Standby 15µA, 10mA transmission.
Battery life (nominal): 3 years (150tr/day)
Detector Type: Dual pyro IR element (IR filter 5um÷14um)
Alarm Signaling: Red LED 2 seconds on event transmission:
alarm, tamper, low battery.
Sensitivity: 2 levels fuzzy logic (jumper setting)
Speed Detect: 0.2M/s÷5M/s∆t=1.1°C (0.66 ft/s÷16.4 ft/s∆t=2° F)
Pet Immune: Up to 25Kg.
Temperature Compensation:
Tamper Switches: Back & cover tamper
Supervisory Signals: Electronic malfunction or temperature out
of range is indicated by a flashing LED.
Arming types: Normal: 2 minutes sleep following last alarm
Dynamic: 2 minutes following last movement
(retriggerable).
Test modes: walk test (no sleep) 1 min, radio test (10
transmission) by push button.
3. SA-01P General Features
These are the main features of the SA-01P:
•
Advanced micro-controller electronics: 10-bit A-to-D and
advanced algorithms for superior movement speed
spectrum analysis.
•
Shielded dual-element pyro: Inside a dust-proof chamber
designed to reduce thermal changes and insect
protection.
•
Two levels of sensitivity: Normal and harsh environments,
by jumper selection.
•
Adjustable height calibration of PCB: The detector may
be adjusted and placed at any height from 1.8 meters to
2.3 meters.
1
Digital dual slope (+/- 1°C)
SA-01P
Digital Wireless Pet Immune
Passive Infrared Motion Detector
For high-security, the SA-01P is supplied with a
back and cover tamper which detects
tampering with the sensor if the case is opened
or an attempt is made to remove it from the wall.
As a wireless device, the SA-01P includes a
supervision mechanism as well as features such
as walk and RF transmission test functions,
movement and speed spectrum analysis, selectable pulse
counting, ultra-bright LED, cover and wall tamper detection,
ultra-low current consumption, APS (Auto Power Save)
technology, and automatic low battery detection. The SA-01P
also has an optional mount bracket.
Caution: Changes or modifications to this equipment
not expressly approved by the party responsible for
compliance (Rosslare Ltd.) could void the user's
authority to operate the equipment.
RF Characteristics
RF Frequency: G=433.92MHz and H=868.35MHz
RFI Protection: >20 V/m up to 1000 MHz
2.3 Environmental Characteristics
Operating Environment:
Operating Temperature:
Operating Humidity:
2.4 Physical Characteristics
Dimensions: 90mm x 65mm x 52mm (3.5 in. x 2.5 in. x 2.2 in.)
Weight: 84.2 grams (2.97 oz)
Note: The SA-01P is an indoor PIR, and should not be
used in outdoor applications.

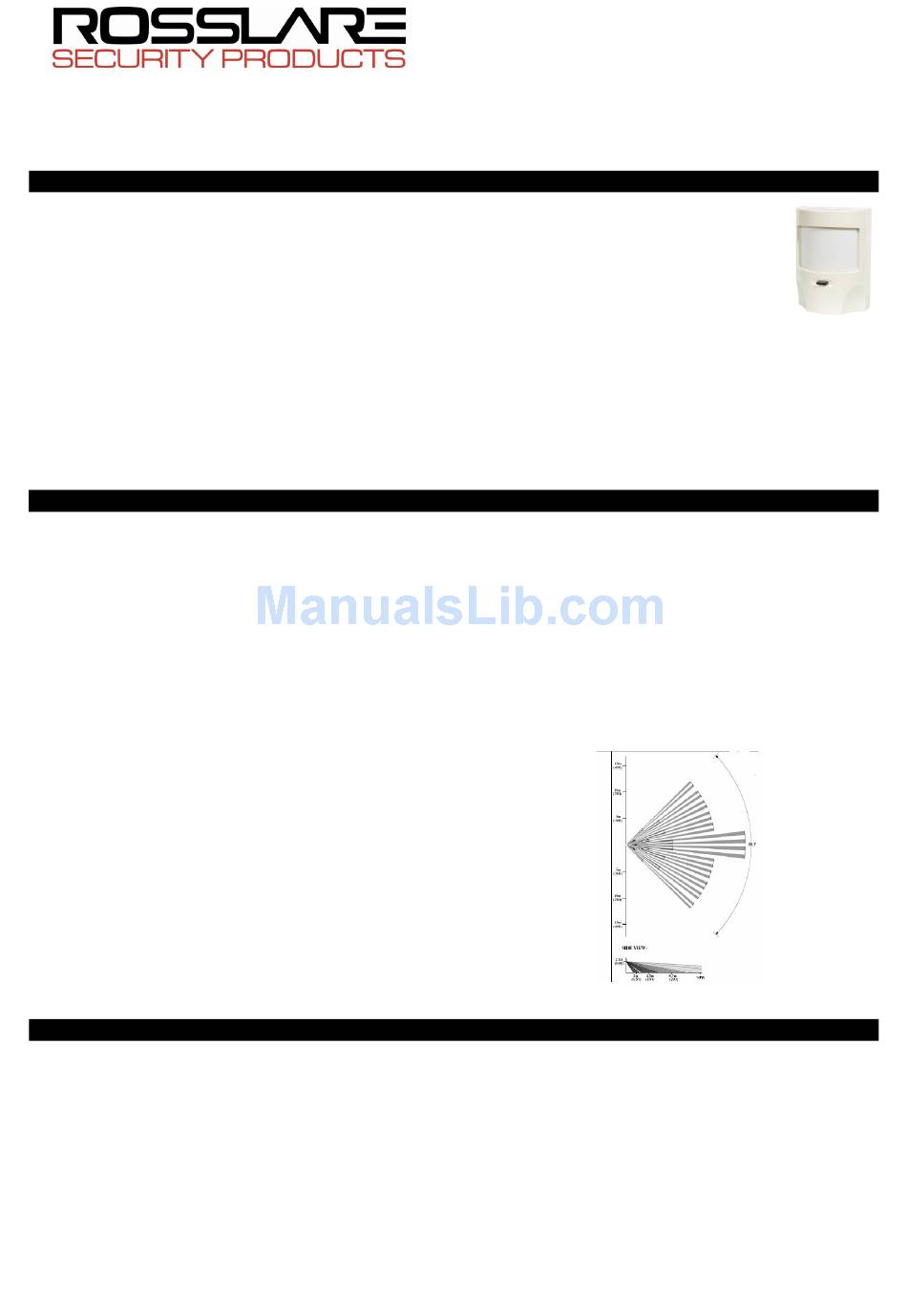

Figure 1: Lens Top and Side View
•
Back and cover tamper switch: Protection against
opening the cover or wall removal.
•
Power saving: Two transmission modes set by jumper.
•
Walk and radio tests: Both can be checked quickly, using
LED indication and without opening the case.
•
Energy detection system: By using fuzzy logic algorithms,
detection is improved and false alarms are reduced.
•
Power level discriminator: Special lens combined with a
power algorithm ignores small to medium sized animals
while maintaining a high level of human detection.
Indoor use
-10 to 60°C (14 to 140°F)
0 to 95% (non-condensing)
0706-0960212+00
