Rosslare SA-01WL Installation Instructions

Installation Instructions
1. Introduction
The SA-01WL Digital Wired Passive Infrared (PIR) motion
detector is a high-performance intrusion sensor with
advanced design ideal for residential and commercial
applications.
The PIR senses slight motion within a coverage pattern by
detecting infrared energy with a Pyro sensor. Serving as an
anti-intrusion sensor, the PIR can monitor open space within
line of sight.
2. Technical Specifications
2.1 Optical Characteristics
Lens Type: High density Polytilan type
Optical Filter: White light protection
Maximum Coverage: 14 × 14 m (45.9 × 45.9 ft)
Vertical Adjustment: By slot (+/- 2°)
2.2 Electrical Characteristics
Input Power: Nominal +12 V DC 10mA (+9 to +16 V).
Detector Type: Dual PYRO IR element (IR filter 5um÷14um)
Alarm Signaling: Red LED 2 seconds on (EN/DIS jumper)
Alarm Output: Solid states relay (SSR) N.C (35V/100ma max)
Sensitivity: 3 levels fuzzy logic (jumper setting)
Speed Detect: 0.2M/s ÷ 5M/s ∆ t= 1.1°C
(0.66 ft/s ÷ 16.4 ft /s ∆ t= 2° F)
Temperature Compensation: Digital dual slope (+/- 1°C)
Tamper Switches: Cover tamper
Supervisory Signals: Electronic malfunction, temperature out
of range (by flashing LED)
2.3 Environmental Characteristics
Operating Environment: Indoor use
Operating Temperature: -10 to 60°C (14 to 140°F)
Operating Humidity: 0 to 95% (non-condensing)
RFI Protection: >20 V/m up to 1000 MHz
2.4 Physical Characteristics
Dimensions: 90mm x 65mm x 52mm
(3.5 in. x 2.5 in. x 2.2 in.)
Weight: 84.2 grams (2.97 oz)
Note: The SA-01WL is an indoor use PIR, and should not
be used in outdoor applications.
3. SA-01WL Features
These are the main features of the SA-01WL:
• Advanced micro-controller electronics: 10-bit A-to-D
and advanced algorithms for superior movement speed
spectrum analysis
• Shielded dual-element Pyro: Inside a dust-proof
chamber designed to reduce thermal changes and
insect protection
• Three levels of sensitivity: High, medium or low; by
jumper selection
• Input/output Line protection: For added resistance to
transient shock, ESD, and RFI interference
• Adjustable height calibration of PCB: The detector may
be adjusted and placed at any height from 1.8 meters
to 2.3 meters
• Cover tamper switch: Protection against opening the
cover for higher security
1
SA-01WL
Digital Wired Passive Infrared
Motion Detector
The SA-01WL uses fuzzy logic to improve
detections and reduce false alarms. It
also provides digital temperature
compensation and self-test capability.
The SA-01WL is supplied with a cover
tamper to detect tampering with the
sensor by opening the case.

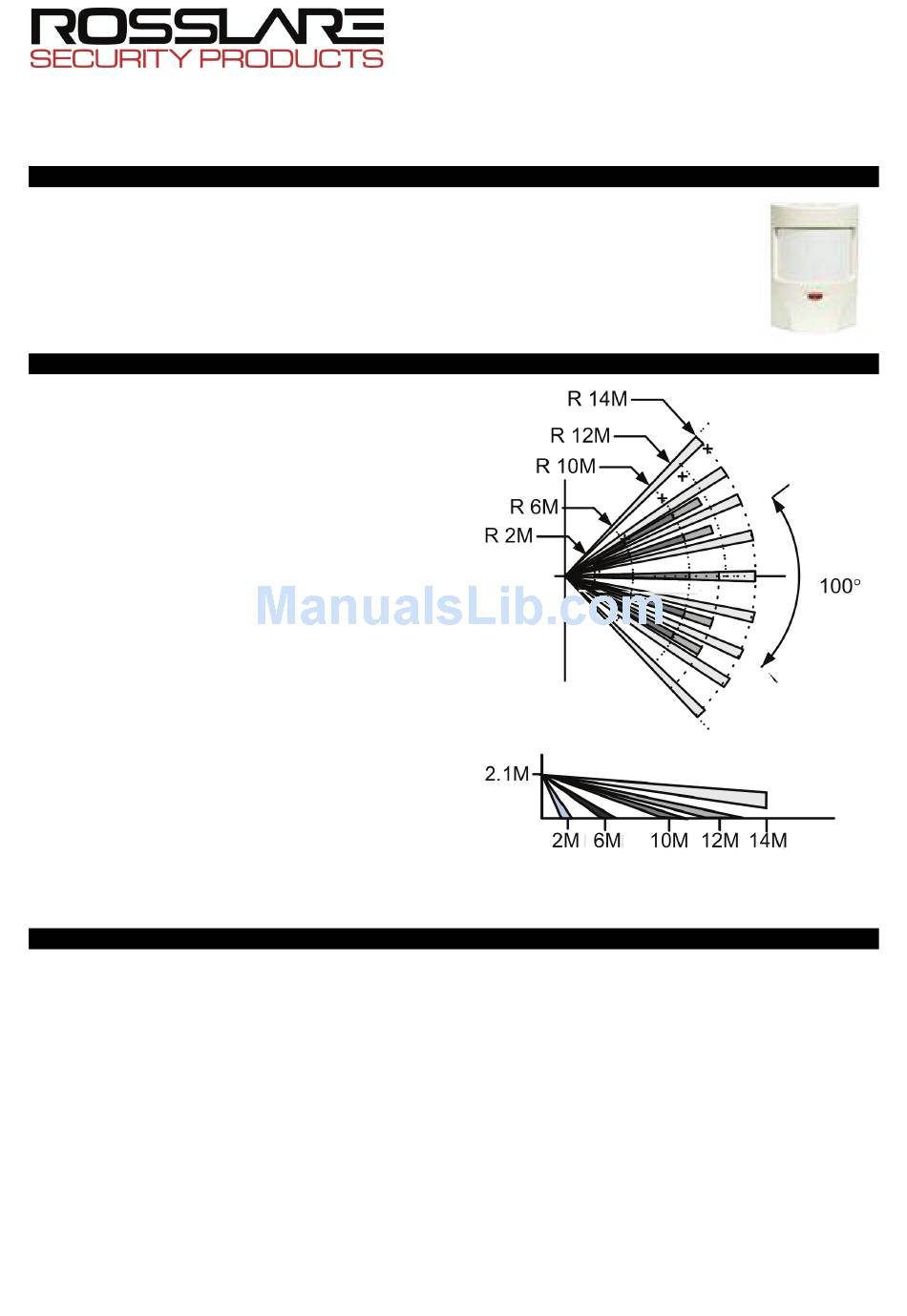

Figure 1: Lens Top View
Figure 2: Lens Side View
• Walk test mode: Detection is indicated by a red LED
(enabled or disabled) with an internal jumper for
additional security
• Energy detection system: By using fuzzy logic algorithms,
detection is improved and false alarms are reduced
• Environment temperature compensation: Maintains
constant detection capability
• Adaptive filter: Compensates for changes in a detected
object's speed
• Continuous monitoring: Sends visual alerts in case of
malfunction (digital and analog) and temperature alerts
if the environment temperature is out of range
• Solid state relay: Provides a nearly unlimited lifespan,
EMC resistance and silent operation
• Digital Electrical and Magnetic Protection: Distinguishes
between electrical interference and real temperature
changes
