Rosslare SA-01PW Installation Manual

SA-01PW
Digital Hardwired Pet Immune
PIR Motion Detector
Installation Manual
1. Introduction
The SA-01PW Digital Hardwired PET immune PIR motion detector is
a high-performance intrusion sensor with advanced design ideal for
residential and commercial applications.
The PIR senses slight motion within a coverage pattern by detecting
infrared energy with a pyroelectric sensor and with a unique fuzzy
logic algorithm. Serving as an anti-intrusion sensor, the PIR can
monitor open space within its line of sight while ignoring house pets
and other small animals, thus reducing false alarms significantly.
The SA-01PW is supplied with a cover tamper to detect tampering
with the sensor if the case is opened.
2. Technical Specifications
2.1 Optical Characteristics
Lens Type Pet immune multi-zone, high density Polytilan type
Optical Filter White light protection
Max. Coverage 14 x 14 m (46 x 46 ft)
Vertical Adjustment By slot (+/- 2°)
2.2 Electrical Characteristics
Input Power Nominal 12 VDC 10 mA (9 to 16 V)
Detector Type Dual pyro IR element (IR filter 5 µm ÷ 14 µm)
Alarm Signaling Red LED 2 seconds on (EN/DIS jumper)
Sensitivity 2 levels of fuzzy logic (jumper setting)
Alarm Output Solid states relay (SSR) N.C. (35 V/100 mA max)
0.2 m/s ÷ 5 m/s, ∆t = 1.1°C (0.66 ft/s ÷ 16.4 ft/s,
Speed Detect
∆t = 2°F)
Pet Immune Up to 25 kg
Temperature Digital dual slope (+/- 1°C)
Compensation
Tamper Switches Cover tamper
Supervisory Signals Electronic malfunction or temperature out of
range is indicated by a flashing LED
2.3 Environmental Characteristics
Operating Environment Indoor use only
Operating Temperature -10°C to 60°C (14°F to 140°F)
Range
Operating Humidity 0 to 95% (non-condensing)
Range
RFI Protection >20 V/m up to 1000 MHz
2.4 Physical Characteristics
Dimensions 90 x 65 x 52 mm (3.5 x 2.5 x 2.2 in.)
Weight 84.2 g (2.97 oz.)

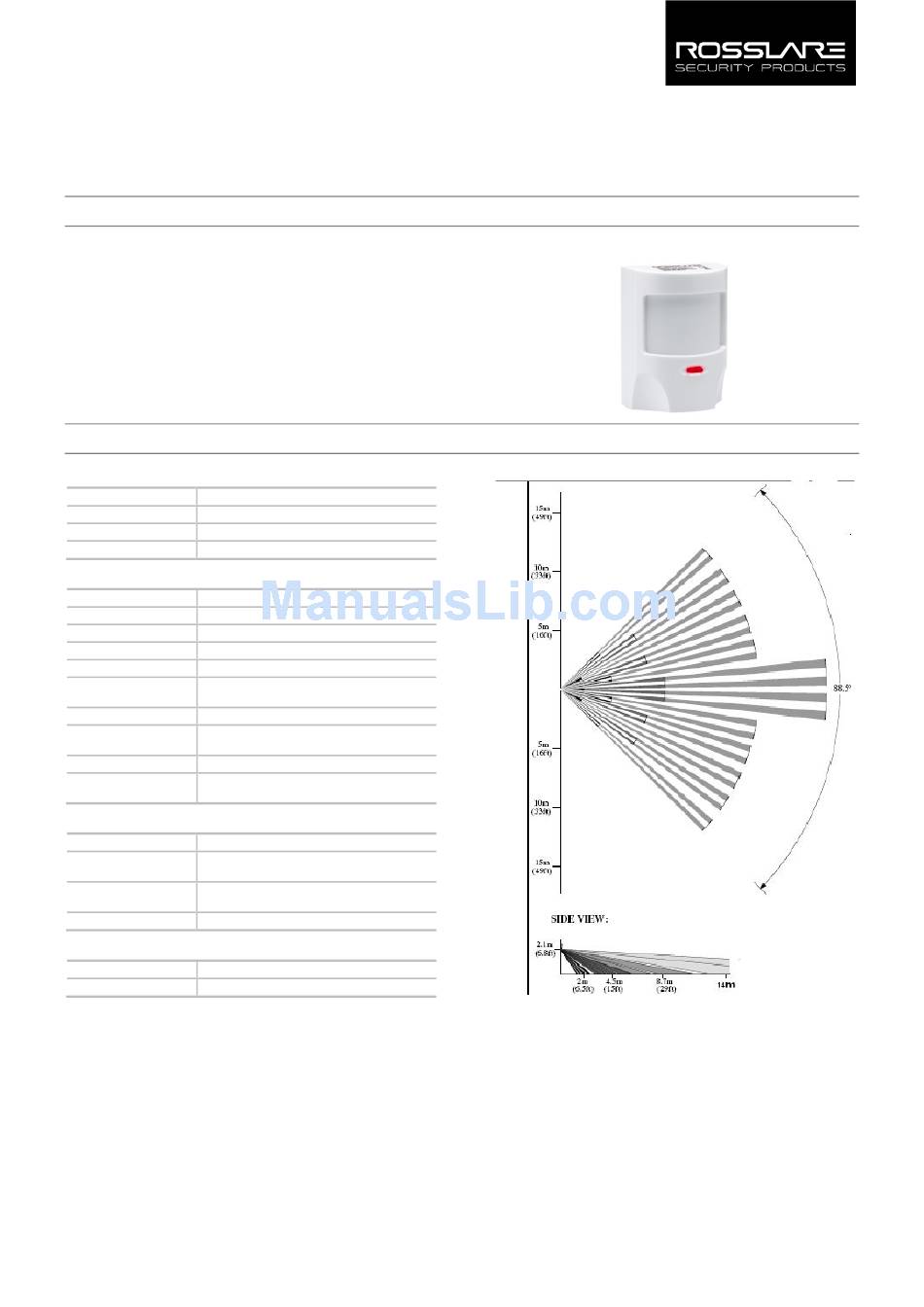

Figure 1: SA-01PW
Figure 2: Lens Top and Side View
