Wireless passive infrared ceiling mount motion detector

Advertisement

Quick Links

Installation Instructions

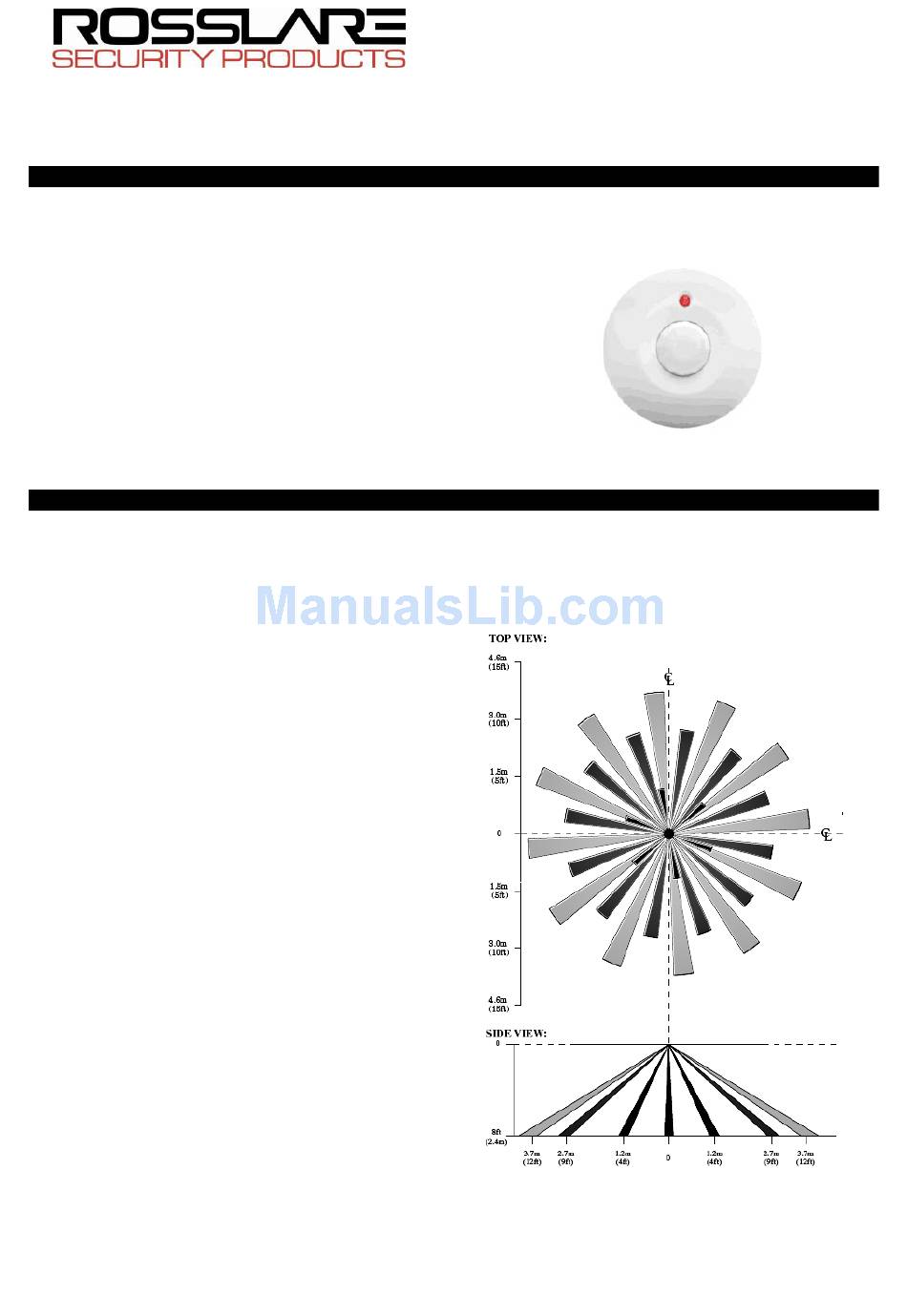

1. Introduction
Th
e PYR-3011 H/G Dig
ital Wireless Passive Infrared (PIR)
ceiling-mount motion detector is a high-performance, ultra
low power intrusion sensor with advanced design ideal for
residential and commercial applications. This unit works with
Rosslare's control panels like HomeLogiX™, which is wireless,
and AuraSys™, which is wired. For the PYR-3011 H/G to work
with AuraSys™, the AuraSys™ panel must have the XR-16
wireless expansion.
The PIR senses slight motion within a coverage area by
detecting infrared energy with a Pyroelectric sensor.
Serving as an anti-intrusion sensor, the PIR can monitor open
space within line of sight.
"Walk & Radio" test is an easy as well as friendly ceiling
installation that makes it very comfortable for placing and
setting. The PYR-3011 H/G uses fuzzy logic to improve
detections and reduce false alarms. It also provides digital
temperature compensation and self-test capabilities.
2. Technical Specifications
2.1 Optical Characteristics
Lens Type: High density Polytilan lens
Optical Filter: White light protection
Maximum Coverage: 7m (23ft) diameter at 2.4M (7.874ft)
height.
2.2
Electrica
l Characteristics
Battery type: CR123 (3V/1300mhA)
Current Consumptions: Standby 15µa, 10ma transmission.
Battery Life (nominal): 3 years (150tr/day)
Detector Type: Quad-matrix PYRO IR element (IR filter
5um÷14um)
Alarm
Signaling:
Re
d LED 2 seconds on (push button setting)
Events Transmission: Alarm, Tamper, Low battery.
Sensitivity: 3 levels fuzzy logic (jumper setting)
Speed Detect: 0.2m/s ÷ 3m/s ∆ t= 1.1°C
(0.66 ft/s ÷ 9.84 ft /s ∆ t= 34° F)
Temperature Compensation: Digital dual slope (+/- 1°C)
Tamper Switches: Back and front Cover tampers
Supervisory Signals: Electronic malfunction, temperature out of
range (by flashing LED)
Arming types:
Normal- 2 minutes sleep, followed by last alarm
Dynamic- 2 minutes sleep, followed by last movement
(retriggerable)
Test modes- walk test (no sleep) 1 min
Radio test- 10 transmissions
2.3 RF Transmission Characteristics
Frequency: model H = 868.35 MHz; model G = 433.92 MHz
Range: 180 meters (590.55ft) open field conditions
Supervision transmission: automatic, at 20-minute intervals
Self check: 3 hours from last alarm (retriggered)
2.4 Environmental Characteristics
Operating Environment: Indoor use
Operating Temperature: -10 to 60°C (14 to 140°F)
Operating Humidity: 0 to 95% (non-condensing)
RFI Protection: >20 V/m up to 1000 MHz
1
PYR-3011 H/G
Wireless Passive Infrared Ceiling-
Mount Motion Detector
The PYR-3011 H/G is supplied with front and back tampers for
high security.
As a wireless device, it includes a supervised mechanism as
well as a battery-checker and tamper announcement.
2.5 Physical Characteristics
Dimensions: 106.5mm top diameter x 30.85mm height x
70.7mm bottom diameter (4.192 in. x 1.214 in. x 2.783 in.)
Weight: 106 grams (3.79 oz)
Note: The PYR-3011 H/G is an indoor use PIR, and should
not be used in outdoor applications.
0706-0960213+00
