Rosslare SA-01P Installation Manual

SA-01P
Digital Wireless Pet Immune
Passive Infrared Motion Detector
Installation Manual
1. Introduction
The SA-01P Digital Wireless Pet Immune Passive Infrared (PIR) Motion
Detector is a high-performance ultra-low-power intrusion sensor
made with the highest level of SMD components and microprocessor
technologies, making it ideal for both residential and commercial
usage. This unit works with Rosslare's control panels.
The PIR senses slight motion within a coverage pattern by detecting
infrared energy with a pyroelectric sensor and with a unique fuzzy
logic algorithm. Serving as an anti-intrusion sensor, the PIR can
monitor open space within its line of sight while ignoring house pets
and other small animals, thus reducing false alarms significantly.
For high-security, the SA-01P is supplied with a back and cover
tamper that detects tampering with the sensor if the case is opened
or an attempt is made to remove it from the wall.
As a wireless device, the SA-01P includes a supervision mechanism as
well as features such as walk and RF transmission test functions,
movement and speed spectrum analysis, selectable pulse counting,
2. Technical Specifications
2.1 Optical Characteristics
Lens Type Pet immune multi-zone, high density polytilan
type
Optical Filter White light protection
Max. Coverage 14 x 14 m (46 x 46 ft), 88°
Vertical Adjustment By slot (+/- 2°)
2.2 Electrical Characteristics
Battery Type CR123 (3 V/1300 mAh)
Current Consumptions Standby 15 µA, 10 mA transmission
Battery Life (nominal) 3 years (150 tr/day)
Detector Type Dual pyro IR element (IR filter 5 µm ÷ 14 µm)
Alarm Signaling Red LED 2 seconds on event transmission: alarm,
tamper, low battery
Sensitivity 2 levels of fuzzy logic (jumper setting)
0.2 m/s ÷ 5 m/s, ∆t = 1.1°C (0.66 ft/s ÷ 16.4 ft/s,
Speed Detect
∆t = 2°F)
Pet Immune Up to 25 kg
Temperature Digital dual slope (+/- 1°C)
Compensation
Tamper Switches Back and cover tamper
Supervisory Signals Electronic malfunction or temperature out of
range is indicated by a flashing LED
Arming Types •
Normal: 2 minutes sleep following last alarm
•
Dynamic: 2 minutes following last movement
(retriggerable)
Test Modes •
Walk Test (no sleep): 1 min
•
Radio Test: 10 transmissions by push button
an ultra-bright LED, cover and wall tamper detection, ultra-low
current consumption, APS (Auto Power Save) technology, and
automatic low battery detection. The SA-01P also has an optional
mount bracket.

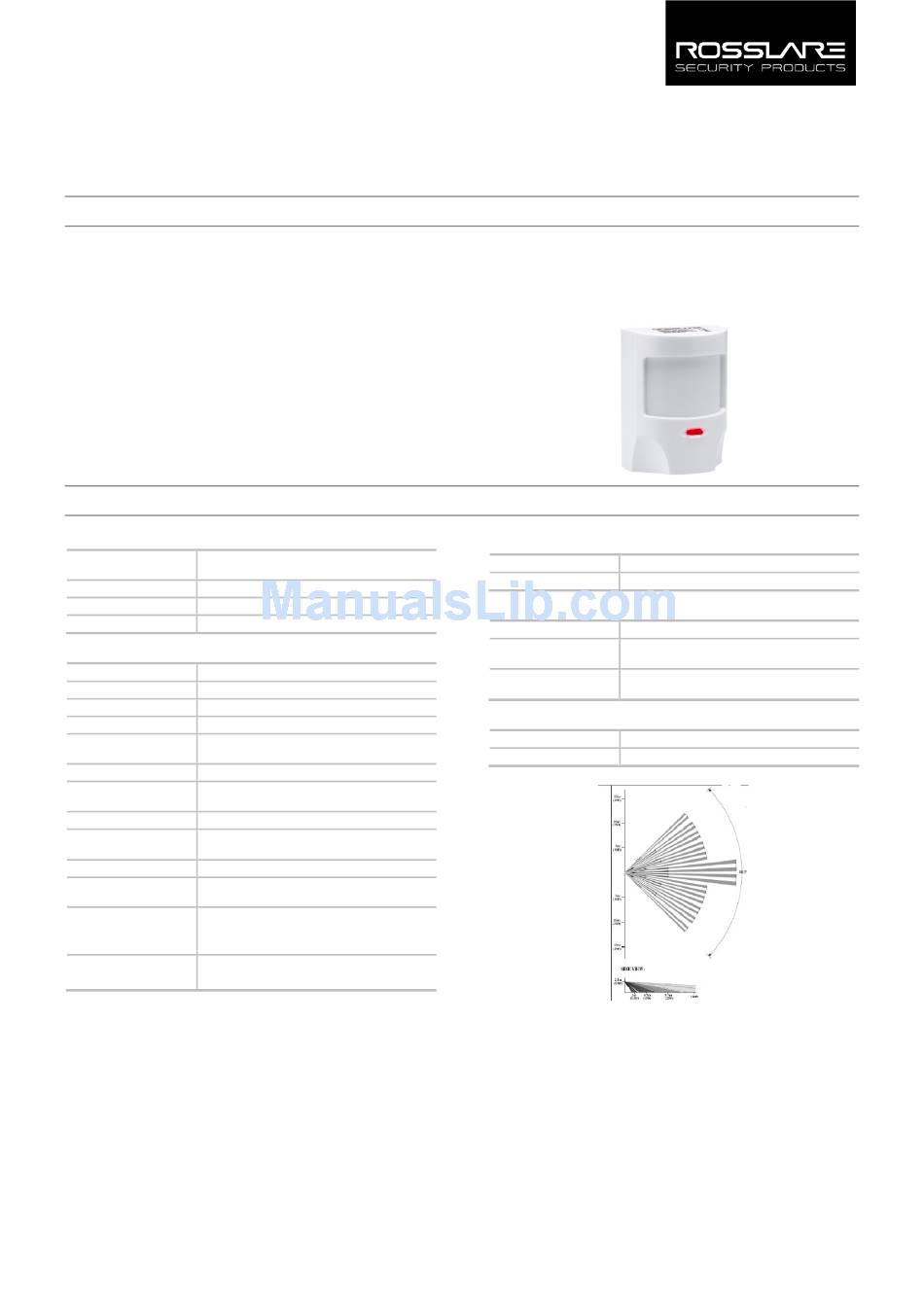

Figure 1: SA-01P
2.3 RF Characteristics
RF Frequency G = 433.92 MHz and H = 868.35 MHz
RFI Protection >20 V/m up to 1000 MHz
2.4 Environmental Characteristics
Operating Environment Indoor use only
Operating Temperature -10°C to 60°C (14°F to 140°F)
Range
Operating Humidity 0 to 95% (non-condensing)
Range
2.5 Physical Characteristics
Dimensions 90 x 65 x 52 mm (3.5 x 2.5 x 2.2 in.)
Weight 84.2 g (2.97 oz.)
Figure 2: Lens Top and Side View
