Schaffert Rebounder Mounting Instructions

SCHAFFERT MFG. CO. INC. - phone: 800-382-2607 - fax: 308-364-2410
REBOUNDER
John Deere 750/1560/1590/1690/1860/1890/1990 Drills
Before working on your planter or drill
When storing or working on the drill always install cylinder stops or place the drill on stands to prevent personal injury or damage to the Rebounder.
DANGER:
Do not roll back or back up the drill in or on the ground as this can result in damage to the Rebounder.
WARNING:

Rebounder Mounting Instructions

Before you begin, verify all items listed in the "package contents" table at the right.
Step #1: Remove the 1/4" bolt and washer holding the seed flapper in place on the seed boot of
the John Deere drill. Now you are ready to mount the Rebounder in the place where the
John Deere seed flapper was.

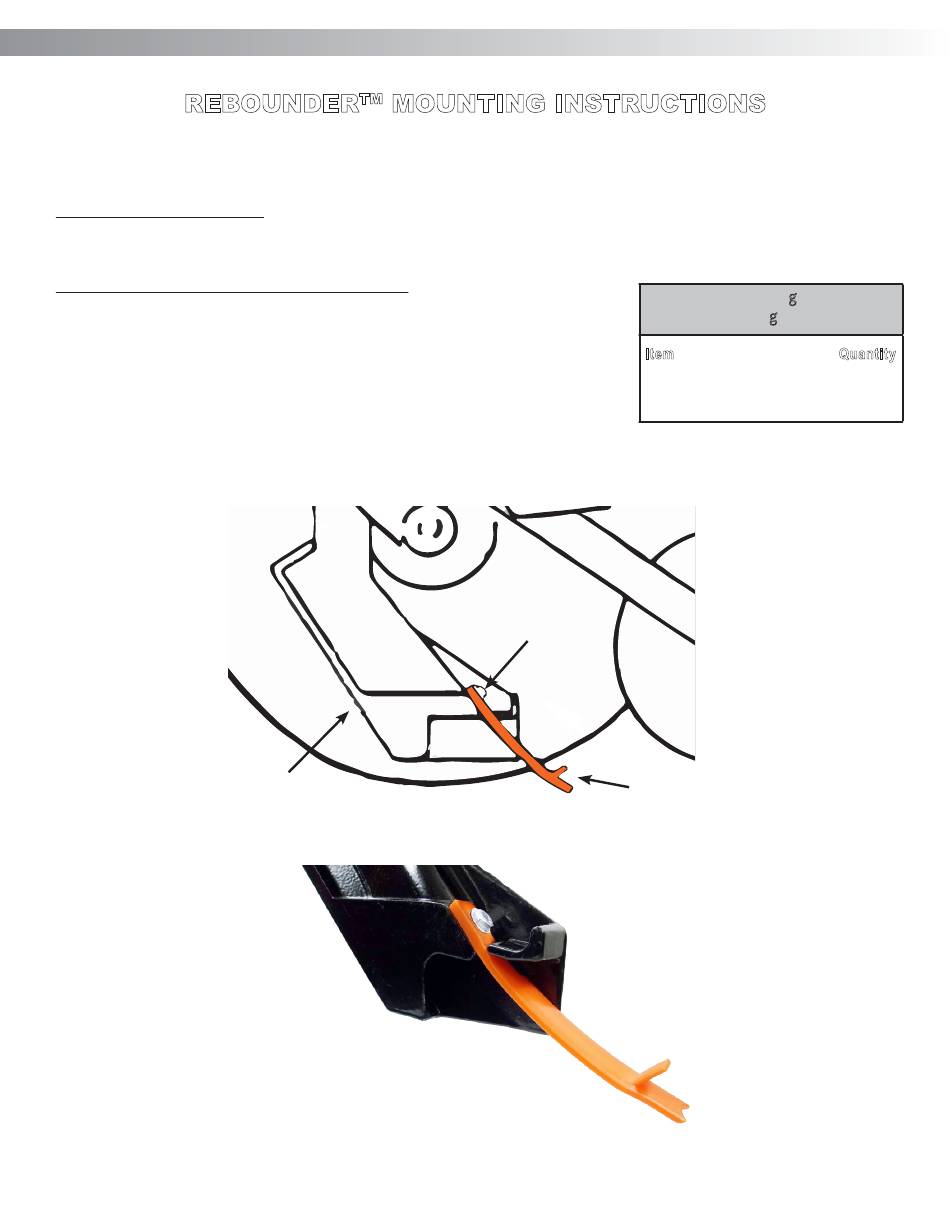

Step #2: Place the Rebounder in the bottom of the seed boot as shown below. Raise the press
wheel and let it rest on the square collar. Place the 1/4 x 7/8" whiz bolt through the
Rebounder and tighten it into place.
John Deere
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832; 6,763,773 and 7,121,216.
71495 rd. 397 - indianola, ne 69034 - phone: 800-382-2607 - fax: 308-364-2410 - sales@schaffert.com - www.schaffert.com - 26 aug 2014
MOUNTING INSTRUCTIONS
TM
(Read Instructions Completely before Beginning Installation)
seed boot

Rebounder Package Contents

Item
Rebounder . . . . . . . . . . . . . . . . . . . . . . . 1
1/4" x 7/8" Whiz Bolt . . . . . . . . . . . . . . . 1
Instruction Sheet . . . . . . . . . . . . . . . . . . 1
Whiz bolt
Rebounder
(per single row)
Quantity
