Schaffert Rebounder Mounting Instructions

SCH FFERT MFG. CO. INC. - phone: 800-382-2607 - fax: 308-364-2410
Before working on your planter or drill
DANGER: when storing or working on the planter always install cylinder stops or place the planter on stands to prevent personal injury or
damage to the Rebounder. WARNING: do not roll back or back up the planter in or on the ground as this can result in damage to the
Rebounder.
Mounting Instructions
Before you begin, verify all items listed in the "package contents" table.
Step #1: before installing the first Rebounder on your drill, read the HELPFUL
HINTS FOR MOUNTING REBOUNDERS TO DRILLS on the reverse side of
this sheet.
Step #2:
remove one opener disc from the drill. Remove scraper nuts and washers.
With Rebounder bracket in place, replace bolt with 5/16" x 1 1/4" bolt pro-
vided. Center Rebounder bracket between discs and tighten nut in place.
Step #3: now you are ready to install the Rebounder to the bracket. (3 of the 7
holes have been trimmed off the top of the drill Rebounder so it will fit the
Rebounder bracket on the Haybuster drill.) place the Rebounder on the
bottom side of the Rebounder bracket. Place the 1//4" x 1" bolts in the
2nd and 3rd holes of the Rebounder (counting up from the bottom of the
Rebounder) and insert into the 2nd and 4th holes of the Rebounder brack-
et. With this setting, set planter on a flat surface, the Rebounder should be
about 3/8" off the floor or flat surface. Tighten the nut on the Rebounder.
Example Settings: with the new discs on the drill and the press wheel washers set in the middle position (that is, with
approximately 4 washers on the top side), proceed as follows:
Step #4:
Place the L-bracket over the top bolt using the 1/4" whiz nut; use the common nut on the other bolt. Tighten both bolts
in place.
Step #5: If discs are worn, make adjustments accordingly.
Optional fittings are available for fertilizer/chemical applications. Options include, Y-Not Split-It, Hose Holder, or the
Straight Shot, each available for an additional charge.

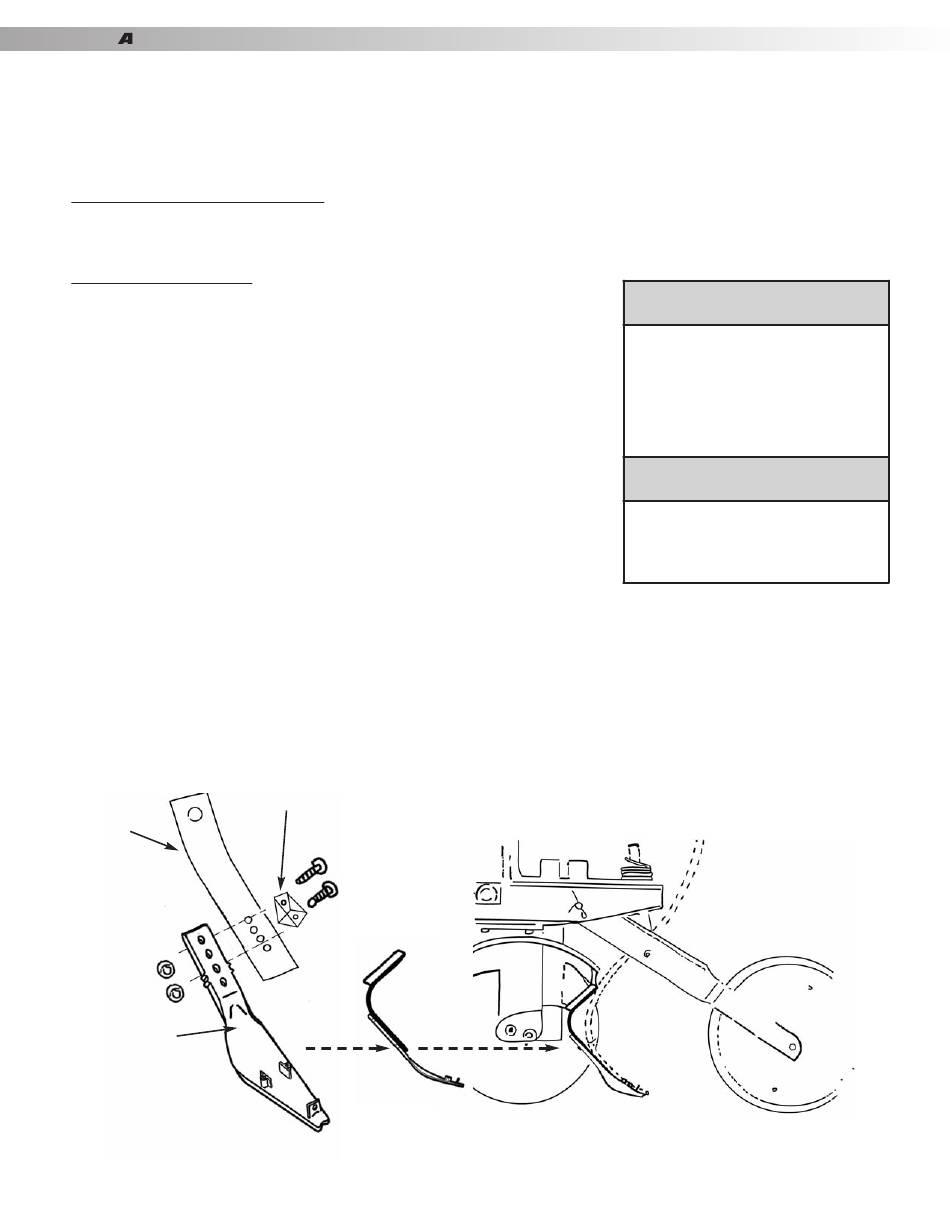

bracket
Rebounder
Rebounder, bracket
and components
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832, 6,763,773 and 7,121,216.
71495 rd. 397 - indianola, ne 69034 - phone: 800-382-2607 - fax: 308-364-2410 - info@schaffert.com - www.schaffert.com - Setp 18,2009
REBOUNDER MOUNTING INSTRUCTIONS
TM
Haybuster Drills
(Read Instructions Completely before Beginning Installation)
L-bracket
Rebounder mounted
on bracket
Rebounder Package Contents
(per single row)
Item
Rebounder. . . . . . . . . . . . . . . . . . 1
1/4 x 1" bolts . . . . . . . . . . . . . . . 2
L-bracket . . . . . . . . . . . . . . . . . . . 1
Whiz Nut . . . . . . . . . . . . . . . . . . . 1
1/4" Nut . . . . . . . . . . . . . . . . . . . 1
Instruction Sheet. . . . . . . . . . . . . 1
Bracket Package Contents
(per single row)
Item
Bracket . . . . . . . . . . . . . . . . . . . . 1
5/16 x 1 1/4" bolt . . . . . . . . . . . 1
5/16" lock nut . . . . . . . . . . . . . . 1
Final Assembly
Quantity
Quantity
