Schaffert Rebounder Mounting Instructions

SCHAFFERT MFG. CO., INC.
REBOUNDER
Before working on your planter or drill
When storing or working on the planter always install cylinder stops or place the planter on stands to prevent personal injury or damage to the attachments.
DANGER:
Read instructions completely and verify all package contents before beginning installation.
PLEASE:
NOTE:
You may or may not have to take off the cover disc for Rebounder installation
RUNNING FERTILIZER HOSE
#1:
If applying liquids in furrow with the Rebounder, attach either Y-Not
Split It, Hose Holder, or Straight Shot kit by following kit directions.
INSTALL KIT BEFORE INSTALLING REBOUNDER
TO PLANTER UNIT.
#2:

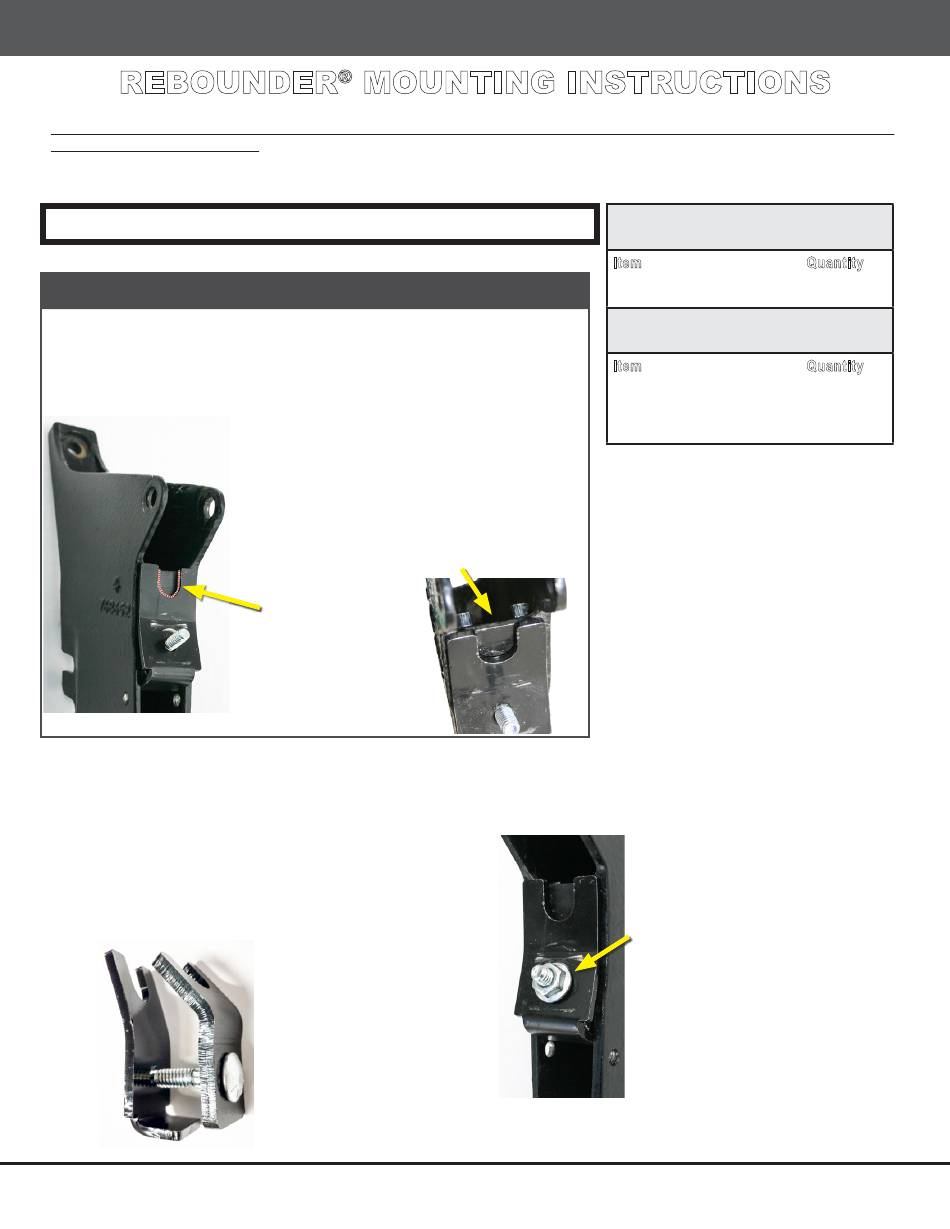

The two piece mounting bracket attaches to the
back of the speed meter seed boot, on the flat piece
in the center back of the boot.
Place the mounting bracket piece with a bolt
pounded through it on the underside of this piece.
The bracket should be rotated with the hose notch
at the top.
Lay the other mounting bracket piece over the top
of this bolt from the outside. It should be rotated so
Rebounder covered by one or more of the following U.S. patents: 5,640,915; 5,918,557; 6,082,275; 6,283,050; 6,453,832; 6,763,773 and 7,121,216.
71495 rd. 397 ∙ indianola, ne 69034 ∙ 308-364-2607 or 800-382-2607 ∙ fax: 308-364-2410 ∙ sales@schaffert.com ∙ www.schaffert.com ∙ 28 mar 2018
MOUNTING INSTRUCTIONS
®
Speed Meter Boot on Case IH
SEE KIT INSTRUCTIONS.
TO RUN FERTILIZER HOSE, YOU
MUST CUT OUT A NOTCH IN THE
BACK OF THE SEED BOOT.
Use the notches in the mounting brackets as a
guide, lining it up flush with the top of the boot's
center flat piece in the back.
CUT OUT NOTCH BEFORE
INSTALLING REBOUNDER TO
PLANTER UNIT.
that the hose notch is at the
top, and the curved piece
at the bottom is pointed in
towards the seed boot.
308-364-2607
Rebounder Package Contents
Item
1-Hole Rebounder . . . . . . . . . . . . . . . . . . . 1
Instruction Sheet . . . . . . . . . . . . . . . . . . . . 1
Bracket Package Contents
Item
Mounting bracket with pounded in bolt . . 1
Mounting bracket front piece . . . . . . . . . . 1
Whiz Nut . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
#3:
The mounting brackets must be secured in place
in order for the Rebounder to fit on the pounded-
in bolt.
To lock the mounting brackets
in, place the whiz nut (included)
over the bolt and loosely tighten
it .
This will keep the bracket from
springing back up. Once the bolt has
secured into place, remove the whiz
nut.
ONCE TIGHTENED
DOWN, THE MOUNTING
BRACKETS WILL REMAIN
SECURED IN PLACE.
USE A SCREWDRIVER OR OTHER TOOLS
FOR REMOVAL
800-382-2607
OR
(per single row)
Quantity
(per single row)
Quantity
OVER ▬ ►
