Nanosecond Pulsed Laser
Description

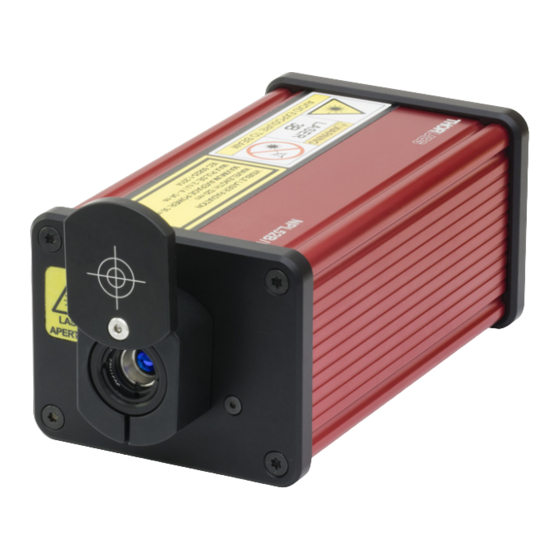

The NPL52B diode laser outputs 520 nm, nanosecond pulse trains with an adjustable pulse width at
repetition frequencies up to 10 MHz. It supports user-triggered operation and also offers an internal
oscillator that triggers the laser pulses at 1, 5, or 10 MHz. The optical output is a free-space beam with
an integrated factory-set collimated lens.
The components included with each NPL52B laser are the laser head, DS15 +15 V power supply with
location-specific plug, interlock pin (installed), a set of keys, two ECM225 clamps, a 2 mm flathead
screwdriver, and this Quick Start Guide.
The manual, which contains detailed information, is available from www.thorlabs.com/manuals.cfm.

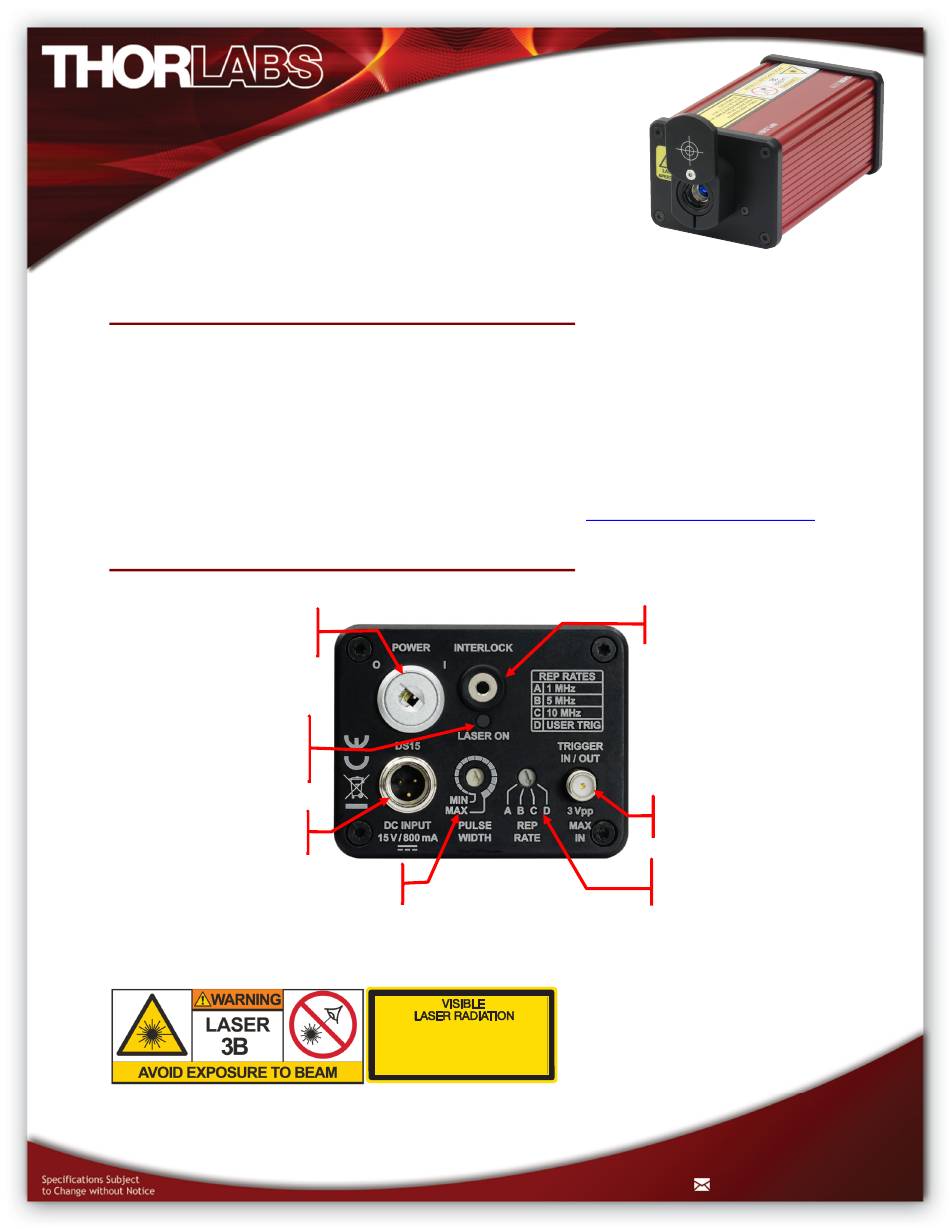

Back Panel Features
Key
Switch
Laser
Status
LED
Power
Jack
NPL52B
Pulse Width
Control
Back Panel of the Laser Head
WAVELENGTH: 520 nm
MAXIMUM AVERAGE POWER: 50 mW
MAX PULSE: 3 nJ, 60 ns
IEC 60825-1:2014
Interlock
Jack
Trigger
Port
Repetition Rate
Control
www.thorlabs.com/contact
January 10, 2019
TTN122961‐D04, Rev G
