NPL Series

Nanosecond Pulsed Lasers

User Guide

Table of Contents

Need help?

Do you have a question about the NPL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for THORLABS NPL Series

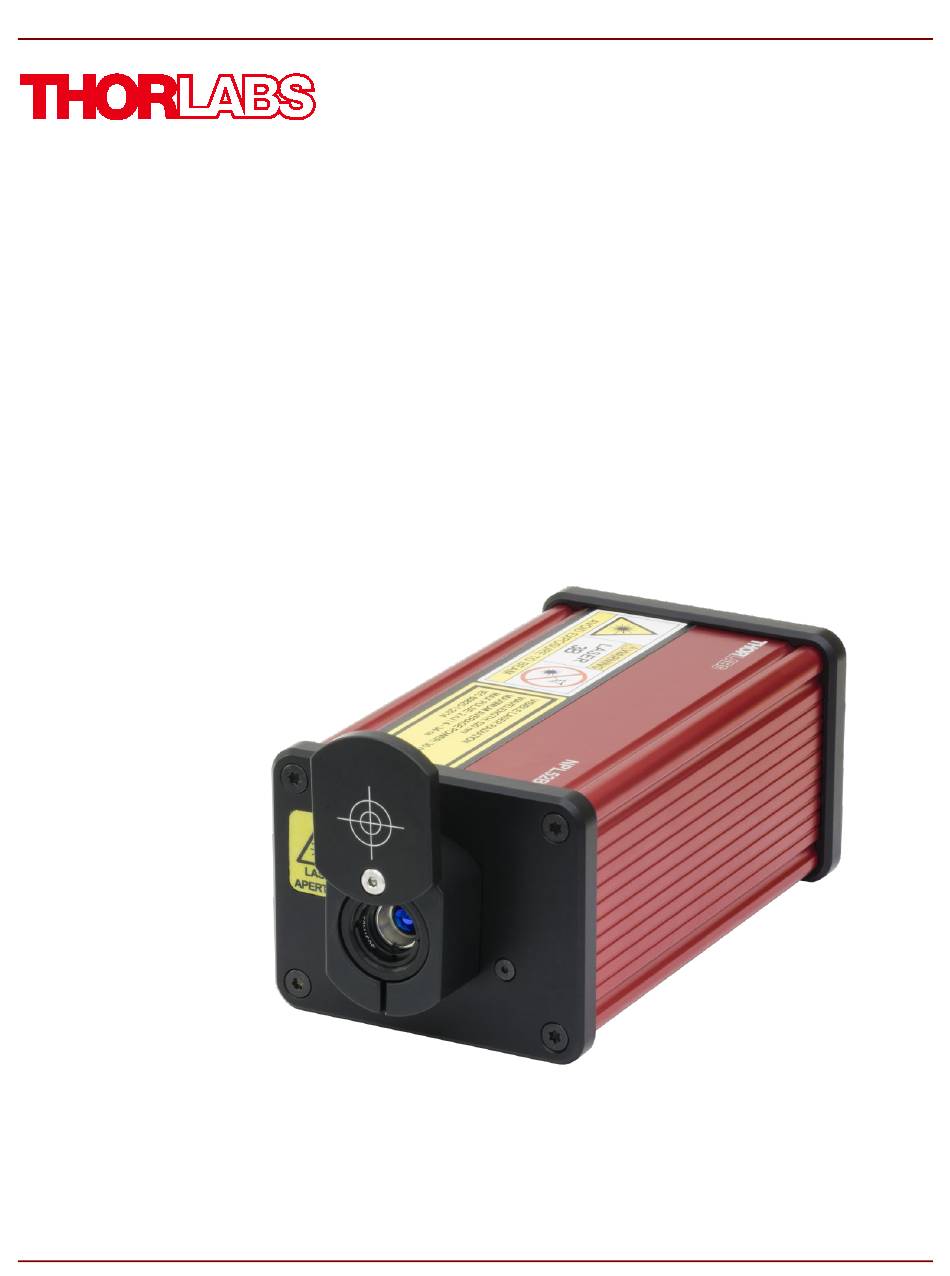

Page 1 NPL Series Nanosecond Pulsed Lasers User Guide...
Page 3: Table Of Contents
4.4 Pulse Widths and Repetition Rates ..................17 4.5 Trigger Port .......................... 18 4.6 Optical Output ........................18 Chapter 5 Maintenance and Cleaning ..................18 Chapter 6 Troubleshooting and Repair ..................19 Chapter 7 Disposal ........................19 Chapter 8 Thorlabs Worldwide Contacts ................... 20...
Page 4: Chapter 1 Introduction
Description The NPL series of pulsed diode lasers are designed to provide a convenient, turn-key source of nanosecond pulse trains. Model options are summarized in the table below and include different typical emission wavelengths, output powers, repetition frequency range, and fixed or adjustable pulse widths.
Page 5 Nanosecond Pulsed Lasers Chapter 1: Introduction Peak Output Internal Max Rep. Item # Typical Center Wavelength Pulse Width Power Trigger Rate NPL64A 640 ± 10 nm 10 ns 13 mW 10 MHz NPL41B 405 ± 10 nm 6 ns to 38 ns 38 mW NPL45B 450 ±...
Page 6: Technical Data
Nanosecond Pulsed Lasers Chapter 1: Introduction Technical Data 1.4.1 Optical Specifications Item # NPL64A NPL41B NPL45B NPL49B NPL52B Center Wavelength (Typ.) 640 ± 10 nm 405 ± 10 nm 450 ± 10 nm 488 ± 10 nm 520 ± 10 nm 6 ±...
Page 7 Nanosecond Pulsed Lasers Chapter 1: Introduction Item # NPL64B NPL79B NPL82B NPL91B NPL98B Center Wavelength (Typ.) 640 ± 10 nm 785 ± 10 nm 820 ± 10 nm 905 ± 10 nm 980 ± 10 nm 5 ± 1 ns 6 ±...
Page 8 Nanosecond Pulsed Lasers Chapter 1: Introduction Item # NPL41C NPL45C NPL52C NPL64C NPL81C NPL94C Center Wavelength (Typ.) 405 ± 10 nm 450 ± 10 nm 520 ± 10 nm 640 ± 10 nm 808 ± 10 nm 940 ± 10 nm 6 ±...
Page 9: Trigger Specifications
The maximum supported edge transition time is 1 ms. b. Available only on NPL series lasers with Item # suffix B. c. Applies to external triggering (all Item #s) and internal triggering (only models with Item # suffix B).
Page 10: Mechanical Drawings
Nanosecond Pulsed Lasers Chapter 1: Introduction 1.4.4 Mechanical Drawings Figure 1 Mechanical Drawing of the NPL64A Rev. J, March 20, 2025 Page 7...
Page 11 Nanosecond Pulsed Lasers Chapter 1: Introduction Figure 2 Mechanical Drawing for NPL Series Lasers with Item # Suffix B Page 8 000-105-199...
Page 12: Inputs And Controls
Chapter 1: Introduction Figure 3 Mechanical Drawing for NPL Series Lasers with Item # Suffix C Inputs and Controls The only differences in the back panels of the A, B, and C versions, shown below, are the pulse width and repetition rate controls.
Page 13 Laser Status Switch Trigger Port Power Jack Repetition Rate Pulse Width Control Control Figure 5 Back Panel of NPL Series Lasers with Item # Suffix B Interlock Jack Laser Status Switch Trigger Port Power Jack Pulse Width Control Figure 6...
Page 14: Simplified Declaration Of Conformity
However, there is no guarantee that interference will not occur in a particular installation. Thorlabs is not responsible for any radio television interference caused by modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Thorlabs. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
Page 15: Chapter 2 Safety
If equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Only with written consent from Thorlabs may changes to single components be carried out or components not supplied by Thorlabs be used.
Page 16: Laser System With Item # Ending In A
Nanosecond Pulsed Lasers Chapter 3: Installation 2.1.1 Laser System with Item # Ending in A 2.1.2 Laser Systems with Item #s Ending in B 2.1.3 Laser Systems with Item #s Ending in C Chapter 3 Installation Packing List 3.1.1 Laser System with Item # Ending in A •...
Page 17: Laser Systems With Item #S Ending In B Or C
1. Mount the laser head as needed using the supplied ECM225 clamps and either imperial or metric screws. After screwing the ECM225 clamps to any convenient base or post, such as one of Thorlabs’ TR series optical posts, snap the clamps on to the bottom side of the NPL housing. Firmly tighten the clamps using the locking screws.
Page 18: Chapter 4 Operation
Control and Oscillators provide internally-generated trigger signals, which make it possible for the B versions to produce stable trains of nanosecond pulses without an external trigger. Figure 8 Block Diagram of the NPL Series Laser Head Rev. J, March 20, 2025 Page 15...
Page 19: Power
The shorting device (interlock pin) installed in all units shipped from Thorlabs performs this function. Leave the shorting device installed unless using an external safety circuit or other type of remotely controlled switch to enable laser output.
Page 20: Pulse Widths And Repetition Rates
Pulse Widths and Repetition Rates NPL series lasers with Item # suffix A and C require a user trigger input to the SMA connector on the back panel. The NPL64A laser supports rates up to 10 MHz. The C version supports rates up to 50 kHz. The slowest supported edge transition time for the trigger signal is 1 ms.
Page 21: Trigger Port
Do not use acetone, chemical solvents, or harsh cleaning solutions, and do not spray cleaning solutions directly onto the unit. See Chapter 6 for advice on cleaning the lens. The NPL does not contain any user-serviceable components. If malfunctions occur, please contact Thorlabs’ technical support ( ).
Page 22: Chapter 6 Troubleshooting And Repair
Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user’s responsibility to delete all private data stored on the device prior to disposal.
Page 23: Chapter 8 Thorlabs Worldwide Contacts
Nanosecond Pulsed Lasers Chapter 8: Thorlabs Worldwide Contacts Chapter 8 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. Corporate Headquarters Product Manufacturer Thorlabs, Inc. Thorlabs, Inc. 43 Sparta Ave...
Page 24 www.thorlabs.com...
