5.4 Initializing the Devices on the CDB43131 Board

The following steps show how to detect the presence of the CS43131s on the CDB43131 Board.
1. Under the CDB431XX_I2C_GPIP_EXP menu, click on QUICK_START, and click CDB_INIT.txt. This will reset the
board into a default mode.

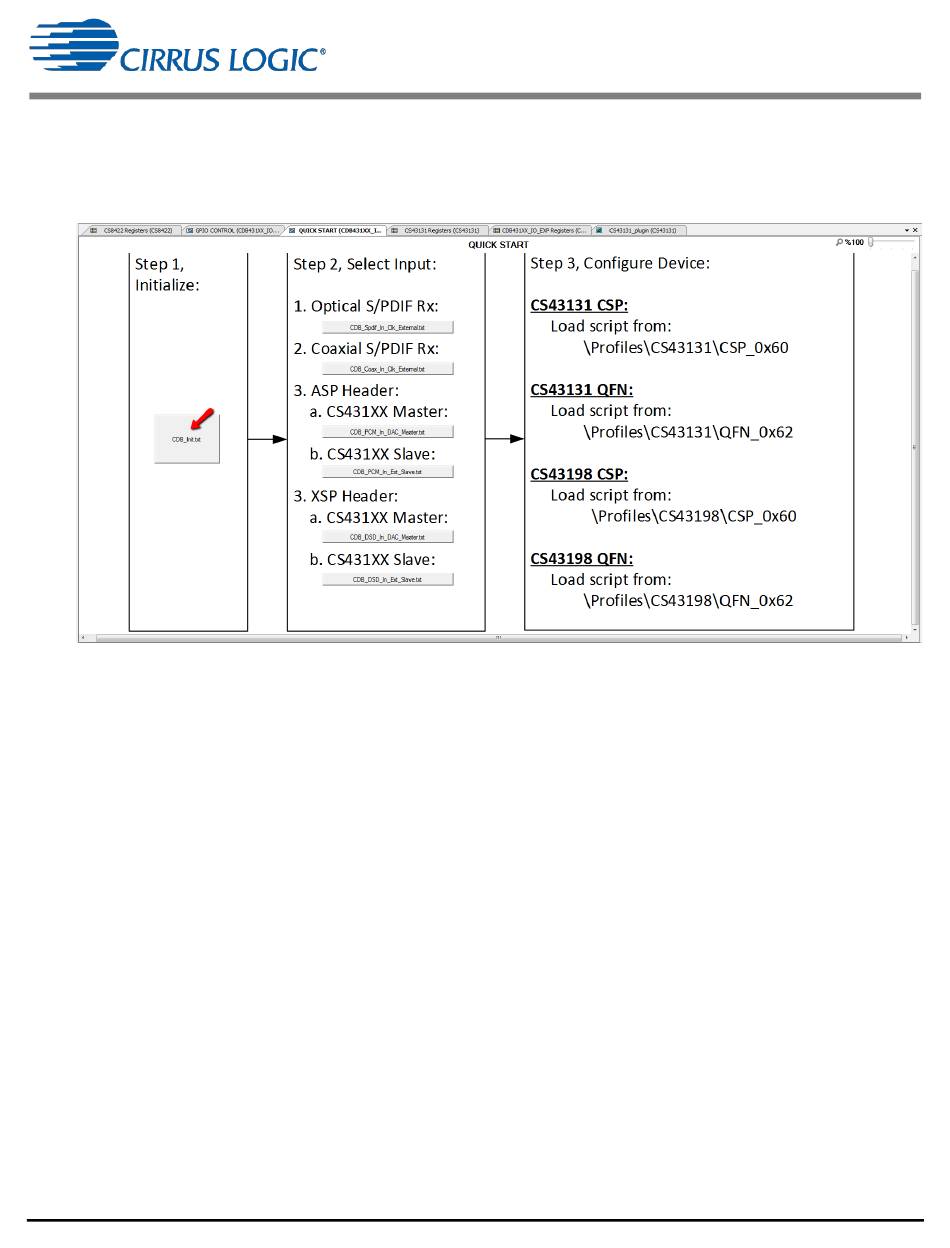

Figure 27 Initialize DACs
26 DS1155V2DB1
