5.3 Loading the CS43131 Plugins and Register Map

To load the CS43131 Plugin and Register Map, launch the "Change Device" pop-up window by either double clicking on
Unknown Device or right clicking on Unknown Device at address 0x60 and selecting Properties. Select "CS43131 Rev
A1" from the Device drop-down menu and click Accept to load the plugin and register map for the CS43131.
24

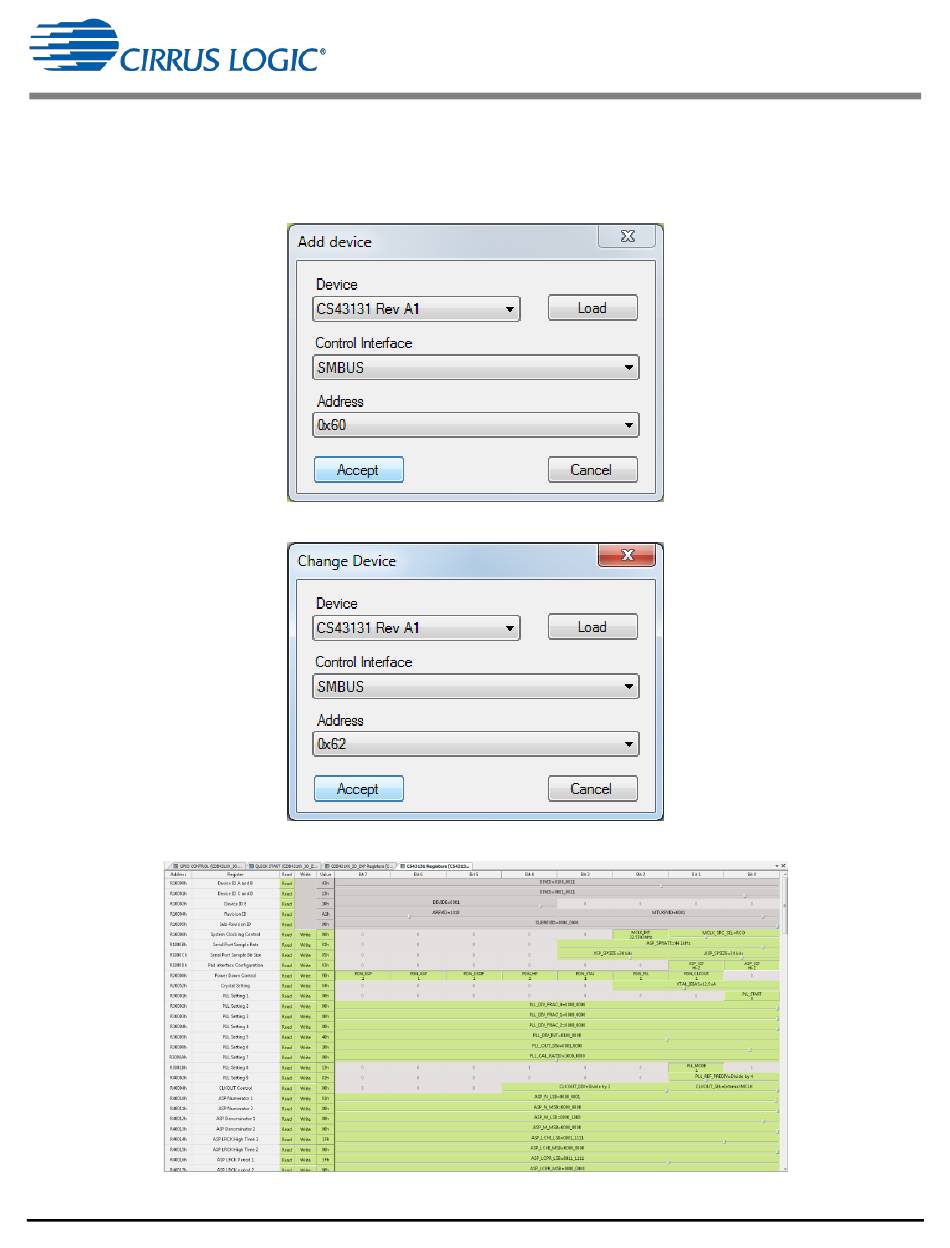

Figure 23 Select CS43131 CSP
Figure 24 Select CS43131 QFN
Figure 25 CS43131 Register Map
