Features
• Configurable serial audio headers for PCM, DSD and DoP audio
• Headphone and line outputs
• Analog and S/PDIF audio input
• USB audio module capability
• WISCE™ I
2
C-based software control
• Windows® compatible
Description
The CDB43131-GBK is a dedicated platform for testing and evaluating the CS43131. The CS43131 is a high-performance
audio DAC with integrated impedance detection and headphone drivers. To allow comprehensive testing and evaluation
of the performance of the CS43131, extensive software-configurable options are available through the CDB43131
evaluation kit. The kit also included the CDB-HDR-MEAS, for measuring the 130 dB dynamic range performance of the
CS43131.
Software options, such as register settings for the CS43131, are configured via the WISCE software tool, which
communicates with the CDB43131-GBK via an Aardvark I
cable.
http://www.cirrus.com
CDB43131-GBK Kit Manual
2
C/SPI host adapter from a Windows computer, or via Mini-USB

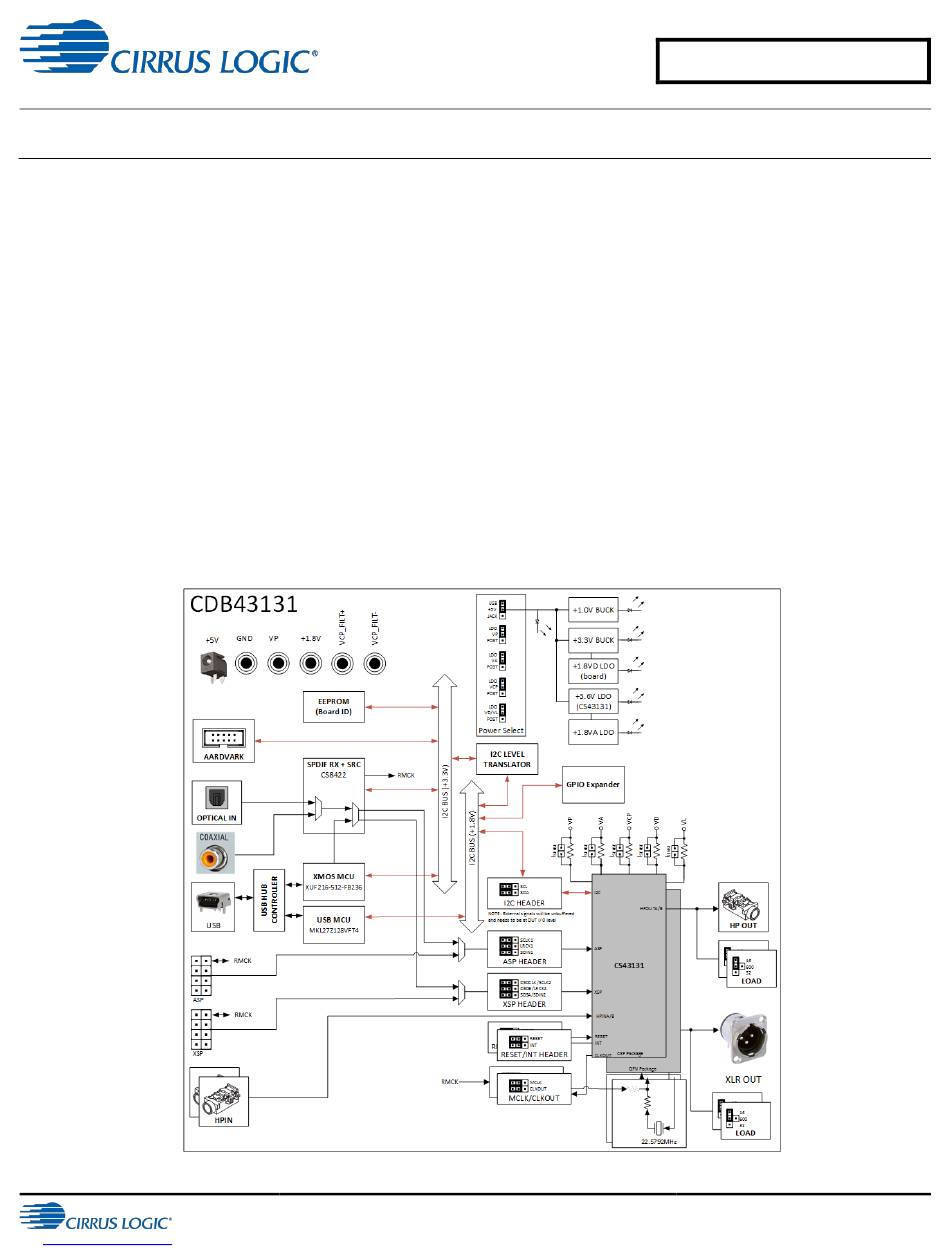

Figure 1 CDB43131 Board Block Diagram
Copyright © 2018 Cirrus Logic, Inc. and
Cirrus Logic International Semiconductor Ltd.
All rights reserved.
CDB43131-GBK
DS1155V2DB1
JUL '18
