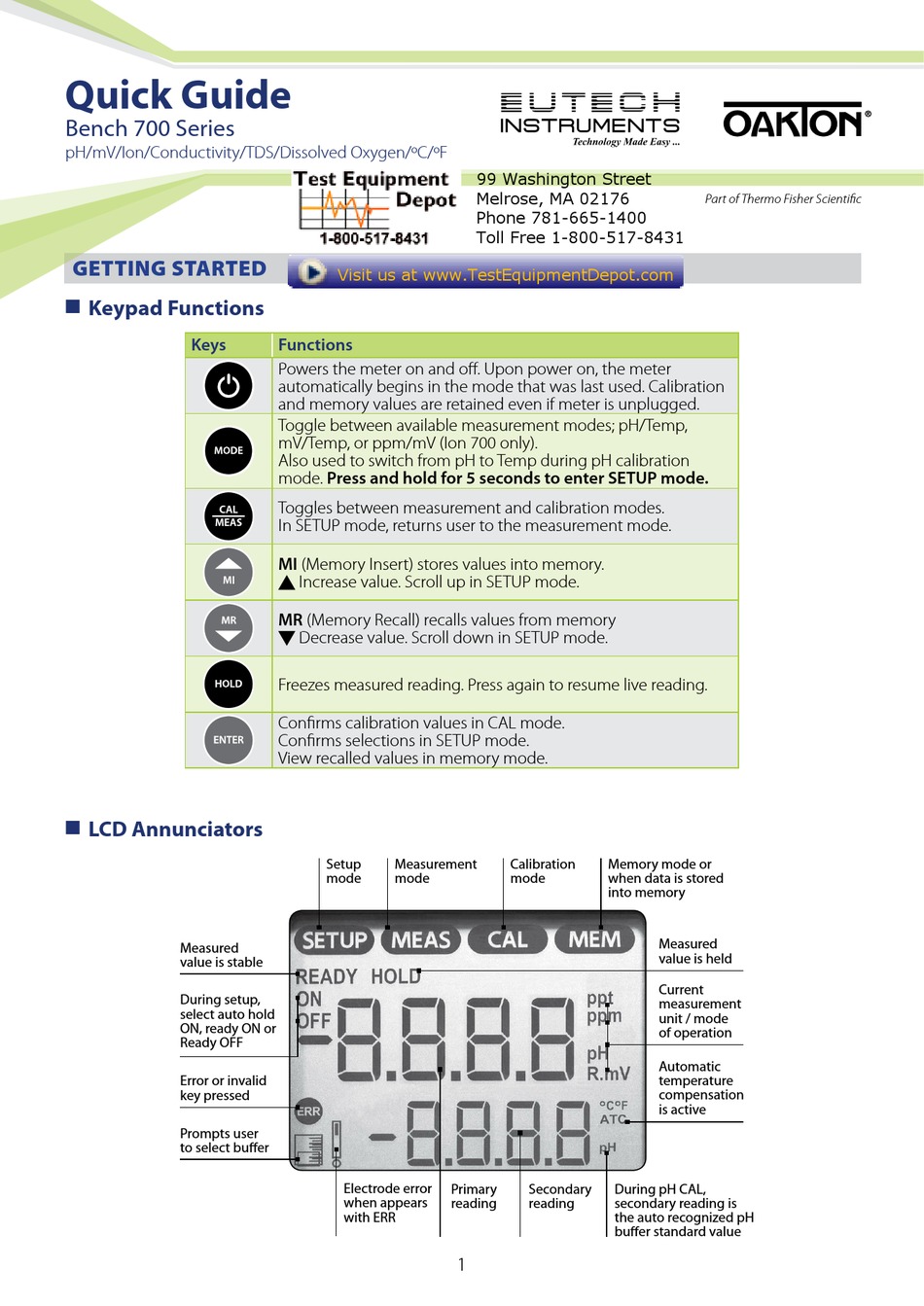

Quick Guide
Bench 700 Series
pH/mV/Ion/Conductivity/TDS/Dissolved Oxygen/ºC/ºF

GETTING STARTED

Keypad Functions

n
Keys

LCD Annunciators

n
Measured
value is stable
During setup,
select auto hold
ON, ready ON or
Ready OFF
Error or invalid
key pressed
Prompts user
to select bu er
Visit us at www.TestEquipmentDepot.com
Functions
Powers the meter on and off . Upon power on, the meter
automatically begins in the mode that was last used. Calibration
and memory values are retained even if meter is unplugged.
Toggle between available measurement modes; pH/Temp,
mV/Temp, or ppm/mV (Ion 700 only).
Also used to switch from pH to Temp during pH calibration
mode. Press and hold for 5 seconds to enter SETUP mode.
Toggles between measurement and calibration modes.
In SETUP mode, returns user to the measurement mode.
MI (Memory Insert) stores values into memory.
Increase value. Scroll up in SETUP mode.
MR (Memory Recall) recalls values from memory
Decrease value. Scroll down in SETUP mode.
Freezes measured reading. Press again to resume live reading.
Confi rms calibration values in CAL mode.
Confi rms selections in SETUP mode.
View recalled values in memory mode.
Setup
Measurement
mode
mode
Electrode error
Primary
when appears
reading
with ERR
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Calibration
Memory mode or
mode
when data is stored
into memory
Secondary
During pH CAL,
reading
secondary reading is
the auto recognized pH
bu er standard value
1
Part of Thermo Fisher Scientifi c
Measured
value is held
Current
measurement
unit / mode
of operation
Automatic
temperature
compensation
is active

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Oakton 700 Series

  • Page 1: Getting Started

    Quick Guide Bench 700 Series pH/mV/Ion/Conductivity/TDS/Dissolved Oxygen/ºC/ºF 99 Washington Street Melrose, MA 02176 Part of Thermo Fisher Scientifi c Phone 781-665-1400 Toll Free 1-800-517-8431 GETTING STARTED Visit us at www.TestEquipmentDepot.com Keypad Functions Keys Functions Powers the meter on and off . Upon power on, the meter automatically begins in the mode that was last used.
  • Page 2 Meter Connections BNC connection for pH, ORP (Redox), or Ion Selective Electrodes (ISE). Pin connection for half cell reference electrodes. Requires separate half cell BNC electrode. ATC REF. Note: REF is not commonly used and is not required. For Automatic Temperature Compensation probe. Power supply.
  • Page 3: Temperature Calibration

    Temperature Calibration The thermistor sensor used for automatic temperature compensation and measurement is both accurate and stable. Temperature calibration is recommended upon electrode replacement, whenever the temperature reading is suspect, or if matching against a certified thermometer is desired. 1. Connect the temperature probe to the meter and place into a solution with a known accurate temperature such as a constant temperature bath.
  • Page 4 STORING AND RECALLING DATA The 700 series meters can retain up to 100 points into memory for later retrieval. 1. In the measurement mode, press to insert the measured value into memory.
