ADDAC213A Assembly Guide
STEP 3:

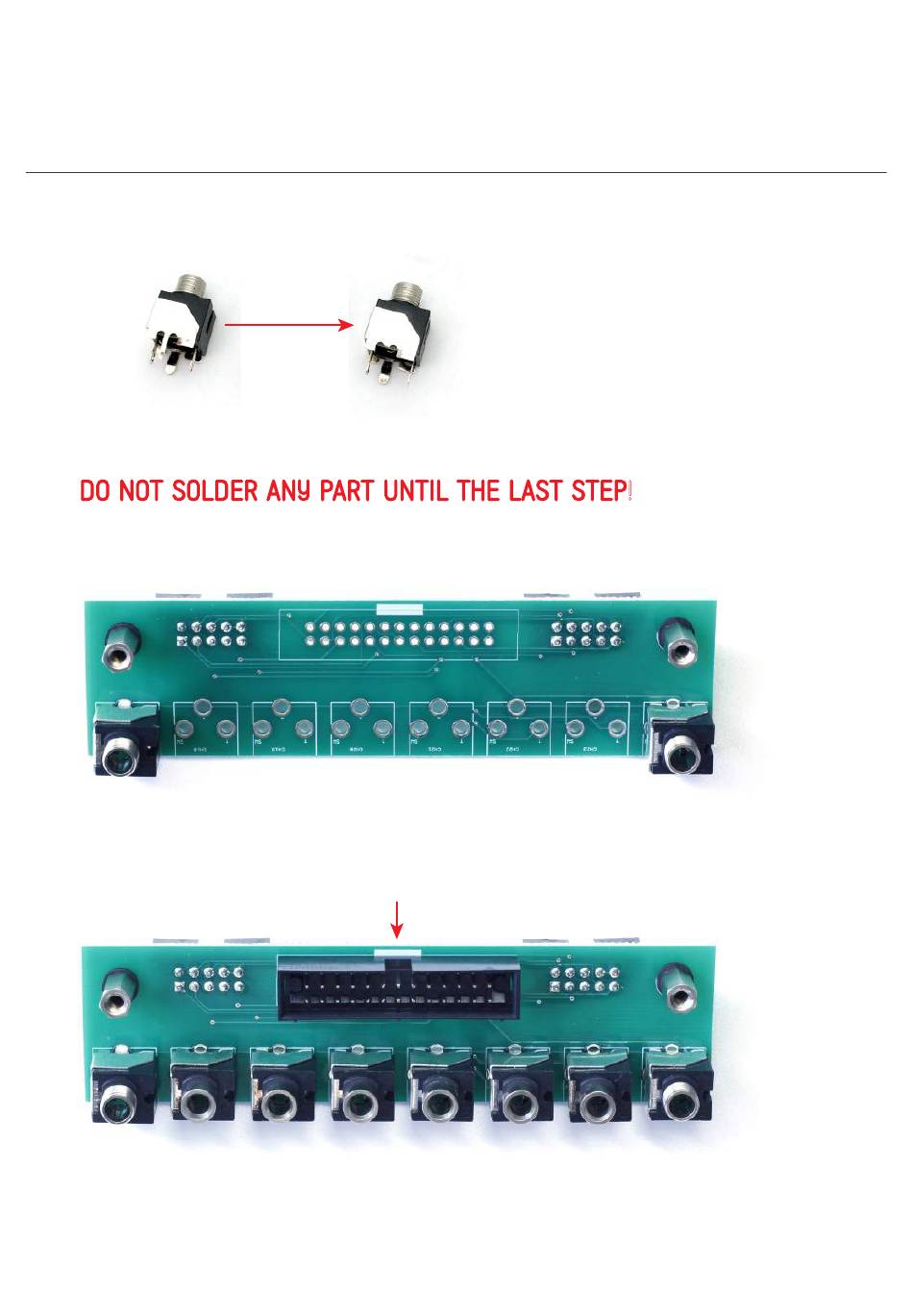

Locate the jacks and cut the smallest legs like shown below.
We'll now populate all front panel parts:
DO NOT SOLDER ANY PART UNTIL THE LAST STEP!
STEP 4:
Next we'll place the threaded jacks on both ends.
STEP 5:
Place the remaining non-threaded jacks and the 2x13 IDC boxed header, once again, notice the
orientation of the header below.
