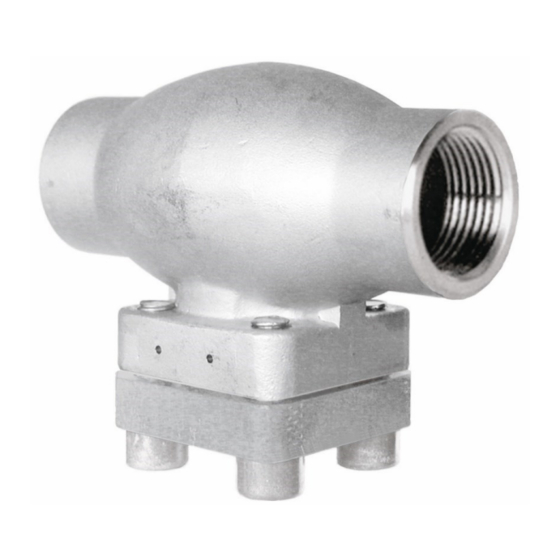

- Page 1 HEROSE GMBH ARMATUREN UND METALLE Operating instructions Cryogenic-strainer...
- Page 3 Operating instructions READ CAREFULLY BEFORE USE! RETAIN FOR FUTURE REFERENCE! © 2019 HEROSE GMBH ARMATUREN UND METALLE Elly-Heuss-Knapp-Straße 12 23843 Bad Oldesloe Germany Phone: +49 4531 509 – 0 Fax: +49 4531 509 – 120 E-mail: info@herose.com Web: www.herose.com 1st issue 02/2019 The transmission or duplication of this document and the use or communication of its content are forbidden unless expressly permitted.
-
Page 4: Table Of Contents
Operating instructions Table of contents About these instructions ....................1 Safety ..........................1 Transport and storage ....................4 Description of the valve ....................4 Assembly ........................7 Operation ........................10 Maintenance and service ..................... 10 Disassembly and disposal ................... 12 Phone +49 4531 509-0... -
Page 5: About These Instructions
People could be seriously injured or killed if the operating instructions are not followed. Read and observe the operating instructions before using the valve. Retain the operating instructions and make sure they are available. Pass on the operating instructions to subsequent users. herose.com... - Page 6 Operating instructions Instructions for people who work with the valve People could be seriously injured or killed if the valve is used improperly. In order to avoid accidents, all persons who work on the valve must meet the following minimum requirements. ...
- Page 7 When carrying out electric welding work, do not use functional parts of the valves for earthing. Exceeding the maximum permissible operating temperature. Damage to the valve! Create the welding/soldering stepwise so that the warming in the middle of the body does not exceed the maximum permissible operating temperature. herose.com...
-
Page 8: Transport And Storage
The valves are provided with an individual marking for identification. Symbol Explanation DN….. Nominal size Rated working pressure (max. permissible operating PN….. pressure) -…..°C +…..°C Temperature Manufacturer's mark "HEROSE" 01/18 Date of manufacture MM/YY 12345 Type 01234567 Serial no. EN1626 Standard CE-mark and number of the notified body 0045 e.g. - Page 9 Strainers are used to filter contamination out of media. The cleaning effect with this model depends on the mesh size. Operating data Valve Rated pressure Temperature Mesh size* 08411 PN50 -196 °C to +120 °C ≤ 0.25 mm 08412 PN50 -196 °C to +120 °C ≤...
- Page 10 Operating instructions Materials DN10 - 150 Part Name Material Body CC491K; 1.4308; 1.4409 Screen 1.4301; 1.4404; 2.4360; CW483K Cover CC493K; 1.4301; 1.4404 Screws A2-70; A4-70 DN200 Part Name Material Body 1.4308 Screen 1.4301 Cover 1.4301 Screws A2-70 Scope of delivery Valve ...
-
Page 11: Assembly
Operating instructions Lifetime The user is obligated to use Herose products only for their intended purpose. In this case, a technical service life may be assumed in accordance with the underlying product standards (e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves). - Page 12 Operating instructions Welding / soldering Welding / soldering of the valves and any heat treatment that may be required are the responsibility of the contracting construction company or operating company. Before welding / soldering Loosen the bolts Direction of rotation: counter clockwise ...
- Page 13 Use suitable transport and lifting equipment for the installation. Mount the bolts Tighten the bolts to the specified tightening torque in a criss-cross pattern Direction of rotation: clockwise Assembly sequence for the bolts herose.com...
-
Page 14: Operation
Operating instructions Red Brass Nominal bonnet/ Brass bonnet/ bolt size bonnet/ Red Brass body SS-body body [Nm] [Nm] [Nm] DN 10 DN 15 DN 20 DN 25 Tightening torque for cover / body DN 32 DN 40 DN 50 DN 65 DN 80 DN 100... - Page 15 desired method of dispatch. Returns / complaints Use the Service form in case of returns/complaints. Contact in case of service: Herose.com › Service › Product service › Complaints E-mail: service@herose.com Fax: +49 4531 509 – 9285 herose.com...
-
Page 16: Disassembly And Disposal
Operating instructions Disassembly and disposal Notes regarding the disassembly Take note of all national and local safety requirements. The pipework system must be depressurised. The medium and valve must be at ambient temperature. Aerate / flush the pipework system in the case of corrosive and aggressive media. Disposal Dismount the valves.
