SECURING TO THE MAIN FRAME

1300 650 059 | concoursegolf.com
SHORTER
SCREW
AT BOTTOM
STEP 3
LONGER

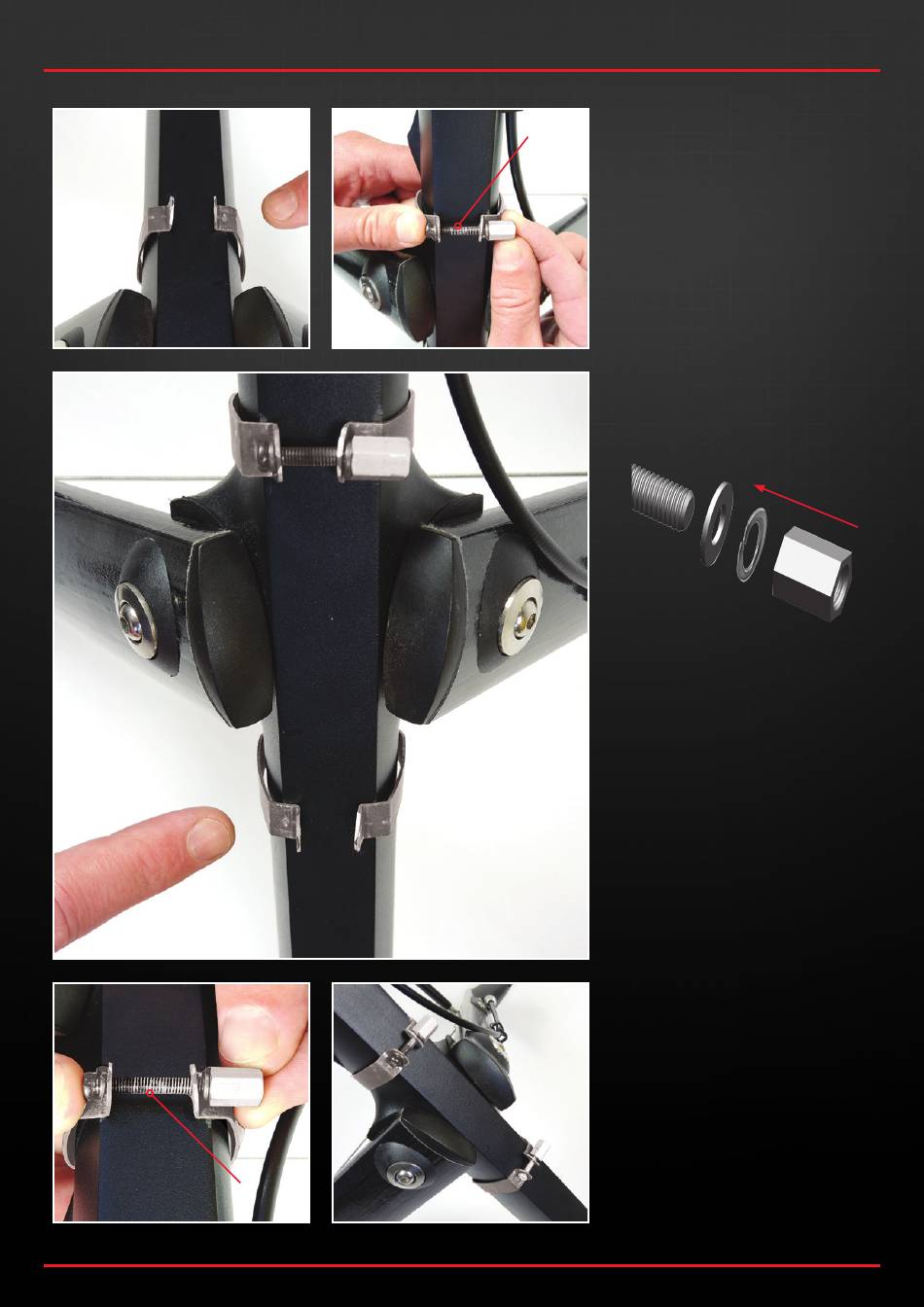

Turn your CBM3 over so you can
SCREW
AT TOP
see the ends of the Metal Securing
Straps.
Take the longer threaded screw to
secure the top Metal Securing Strap.
Using the flat washer, then spring
washer in front of the hexagonal nut,
secure the strap as indicated. Ensure
both washers are on the side of the
hexagonal nut so it does not loosen
when tightened.
WASHER SEQUENCE
Now repeat this process with the 2nd
Metal Securing Strap at the bottom
using the medium length threaded
screw.
Once both are in place, ensure they
are tightened firmly and both flat and
spring washers are between the end
of the Metal Straps and hexagonal
nut.
The straps should grip the
main frame tighly so there is no
movement.
Now that the Mounting Block is
secured, fold down the buggy frame
and re-attach to your golf bag with
the buggy still folded flat (closed
position).
