FITTING INSTRUCTIONS

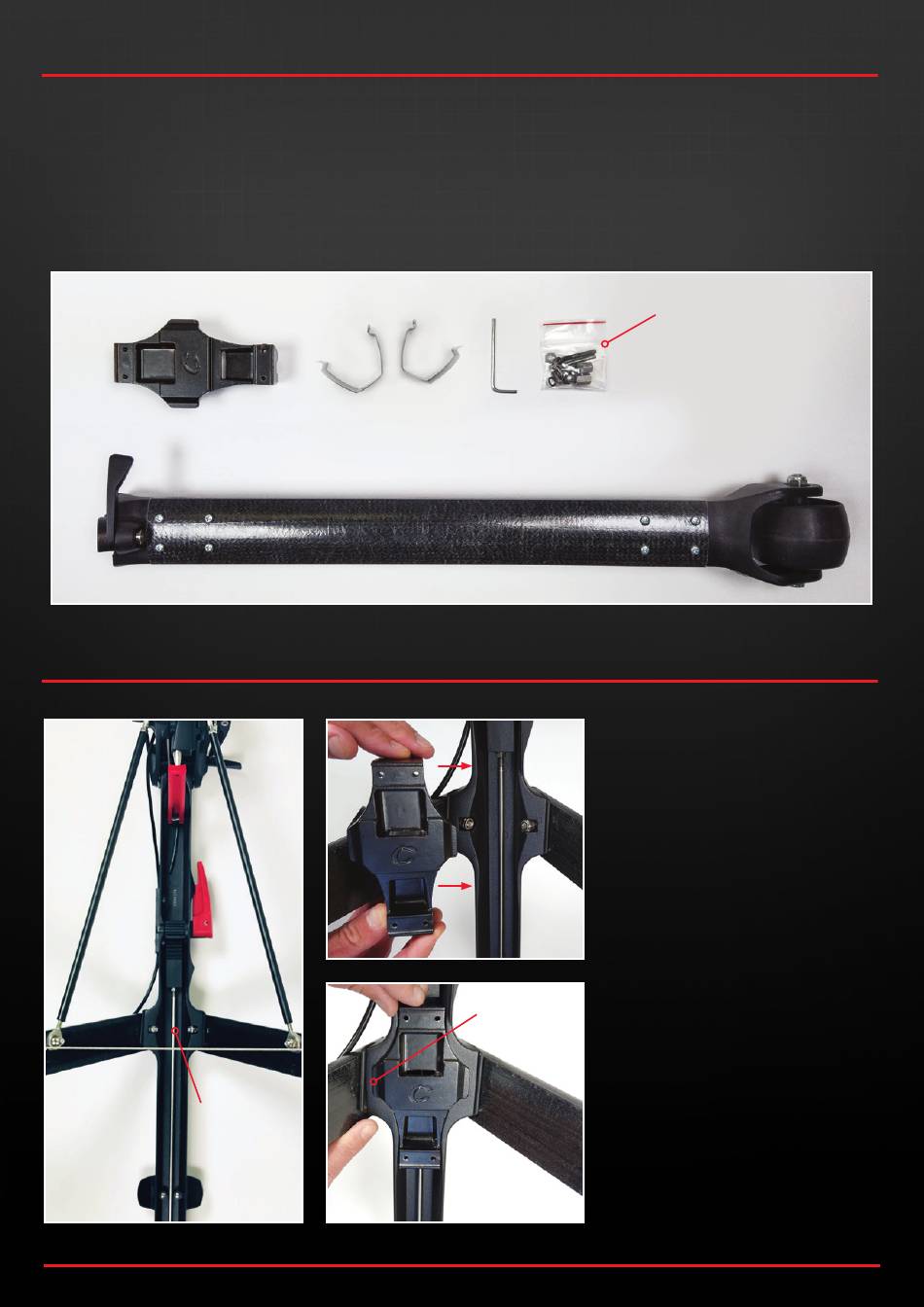

Enclosed in your package you should find the following:-
- Wheel and arm that attaches to your CBM3
- Mounting Block which needs to be attached to the underside of the CBM3
- Metal Securing Straps for the Mounting Block
- Allen Key
- Securing screws, nuts and washers

FITTING THE MOUNTING BLOCK

TOP
MOUNT HERE
1300 650 059 | concoursegolf.com
STEP 1
Before fitting the 4th wheel remove
your CBM3 Buggy from your bag.
Unfold the buggy and place on a
stable work bench (or table) with the
underside facing upwards as shown.
Take the Mounting Block and align it
with the middle of the main frame of
the CBM3 as indicated. You will see
two nuts that attach the buggy legs
to the main frame to help locate the
correct position.
Place the Mounting Block in this
position. It should slot in place easily
MOUNTING
BLOCK COVERS
with the sides of the Mounting Block
BUGGY LEG NUTS
covering the buggy leg nuts as
indicated.
CONTENTS:
2 X screws (long & medium)
2 X hexagonal nuts
2 X flat washer
2 X spring washer
4 X small screws (Allen Key head)
1 X Allen Key
Version 1.2
