Concourse CBM2 Replacement

CBM2 WHEEL SPRING REPLACEMENT INSTRUCTIONS

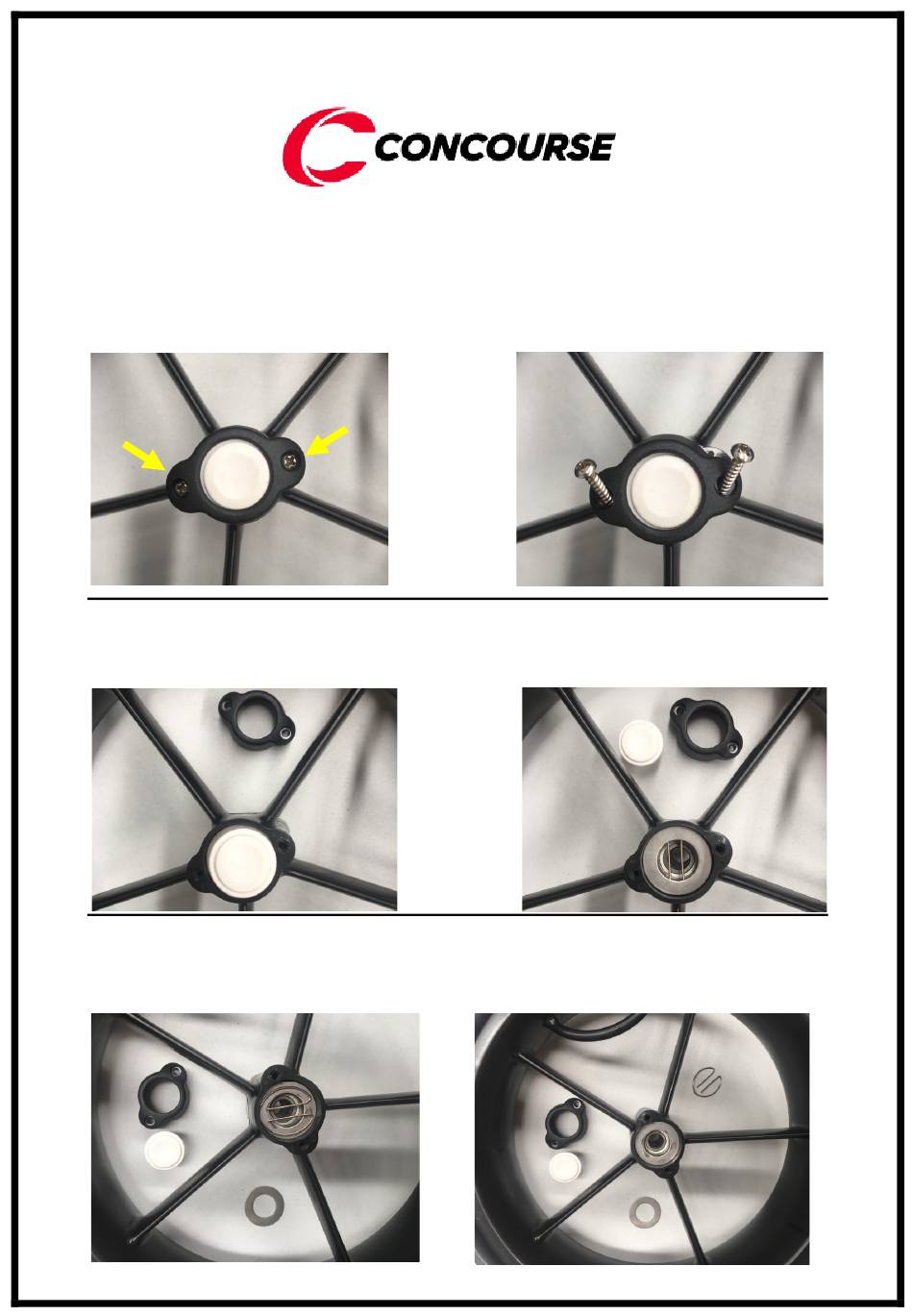

Step 1: Remove the wheel from the buggy and remove the 2 screws which
secure the black cap around the wheel removal button as per Figures: 1&2
Figure 1
Step 2: Remove the black Retaining Ring and the Centre Release Button as
per Figures: 2 & 3 below
Figure 3
Step 3: Remove the Metal Washer and the old Wheel Spring from the wheel
as per Figures: 5 & 6 Below
Figure 5
Figure 2
Figure 4
Figure 6
