VOGUE
PUSH BUGGY
USER INSTRUCTION MANUAL
Version 2.0
1300 650 059 | concoursegolf.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VOGUE PUSH BUGGY and is the answer not in the manual?

Questions and answers

Summary of Contents for Concourse VOGUE PUSH BUGGY

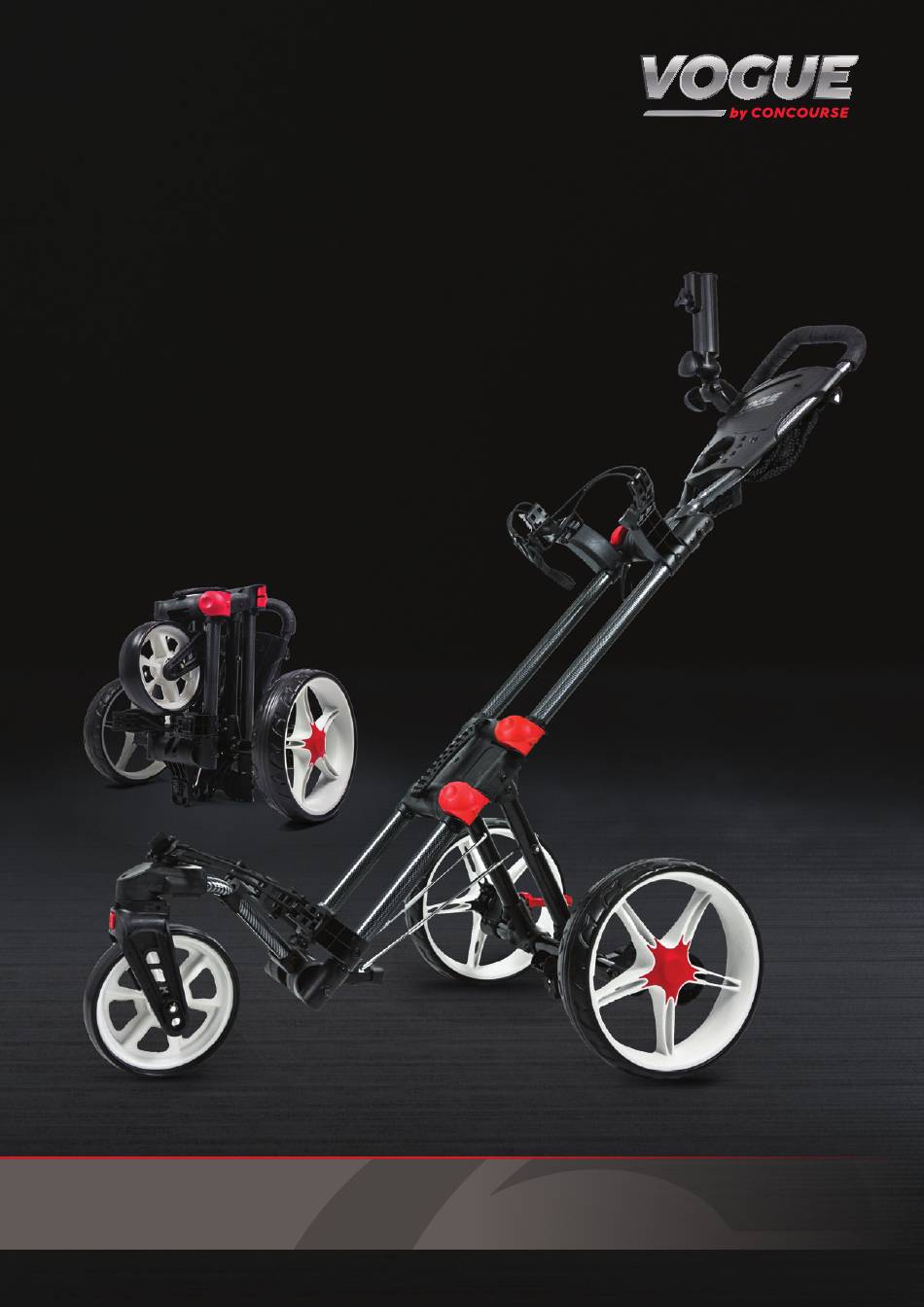

  • Page 1 VOGUE PUSH BUGGY USER INSTRUCTION MANUAL Version 2.0 1300 650 059 | concoursegolf.com...
  • Page 2 CONGRATULATIONS ON YOUR PURCHASE OF THE VOGUE PUSH BUGGY BY CONCOURSE GOLF. Beautifully engineered to provide lasting user enjoyment, we recommend you familiarise yourself with these instructions prior to using the buggy so you enjoy a seamless experience with the Vogue.
  • Page 3: Equipment Check

    EQUIPMENT CHECK Open the box and remove the buggy using the carry CARRY HANDLE handle as shown. The carry handle is designed to be used whenever you carry the buggy in is folded down state. Remove the remainder of contents and check you have all the following items :- •...
  • Page 4: Attaching The Wheels

    ATTACHING THE WHEELS We recommend you attach the wheels prior to unfolding the buggy. Attach the 360 degree swivelling front wheel first as shown. INSERT FRONT WHEEL CLICK INTO POSITION CHECK WHEEL IS SECURE Now, attach the two main wheels to the buggy frame as shown.
  • Page 5 UNFOLDING THE BUGGY (STEP 1) NOTE: IT IS IMPORTANT TO UNLOCK THE SECURING CLIPS AS SHOWN BELOW BEFORE ATTEMPTING TO UNFOLD THE BUGGY. DO NOT TRY TO FORCE OPEN THE BUGGY. IT IS DESIGNED TO EASILY UNFOLD WHEN THE SECURING CLIPS ARE OPEN/UNLOCKED.
  • Page 6 UNFOLDING THE BUGGY (STEP 2) Now, unlock/open the RAISE UPPER HALF OF UNLOCK CLIP BUGGY FRAME securing clip that extends the upper half of the buggy frame. Raise the back half of the buggy frame so it is completely extended, then lock/close the securing clip.
  • Page 7 UNFOLDING THE BUGGY (STEP 3) To extend the buggy handle, open the securing clip as OPEN shown. HANDLE SECTION OF BUGGY FRAME UNLOCK CLIP You may adjust the position/ ADJUST THE POSITION/HEIGHT height of the handle to suit OF HANDLE your comfortable walking TO SUIT position.
  • Page 8 The 4th wheel is designed to provide additional support to prevent the buggy accidentally tipping backwards on steep inclines, or when paired with Concourse Smart Wheels. The 4th wheel will click into place as shown. INSERT 4TH WHEEL CHECK 4TH...
  • Page 9 ATTACHING THE UMBELLA HOLDER The mount for the umbrella is already affixed to your buggy SCREW TO TIGHTEN handle as shown. IN PLACE Take the umbrella holder and attach it to the mount, then tighten in position. You may adjust the angle / tilt of the umbrella holder UMBELLA to suit conditions and your...
  • Page 10 FOLDING THE BUGGY DOWN (STEP 1) NOTE: IT IS IMPORTANT TO FOLD THE BUGGY DOWN IN REMOVE OR FOLD REVERSE ORDER TO THE WAY DOWN THE UMBRELLA YOU SET IT UP. HOLDER. Loosen the umbrella holder and reposition alongside the handle area of the buggy so it does not get in the way when you fold down the buggy.
  • Page 11 FOLDING THE BUGGY DOWN (STEP 2) Unlock/Open the securing clip that releases the handle UNLOCK AND FOLD AFTER HANDLE IS FOLDED of the buggy, then fold the HANDLE DOWN LOCK CLIP handle down on the top-side of the buggy as shown. Once flat, close the securing clip again so the handle remains in position.
  • Page 12 FOLDING THE BUGGY DOWN (STEP 3) Unlock/Open the securing clip for the upper half of the FOLD DOWN UPPER HALF buggy frame. Fold the upper OF BUGGY FRAME half of the buggy frame downward then lock the securing clip once this section if folded down.
  • Page 13 FOLDING THE BUGGY DOWN (STEP 4) Unlock/Open the securing clip for the section of the buggy UNLOCK CLIP connected to the front wheel. Push the front wheel inwards and slightly up so the front section of the buggy folds away. PUSH WHEEL INWARDS Lock the securing clip once it is folded away.
  • Page 14: Removing The Wheels

    REMOVING THE WHEELS To remove the main wheels, press the red button to release the wheel from the buggy frame. Repeat this process to remove the other main wheel. PULL WHEEL OUT AS YOU HOLD DOWN THE RED BUTTON To remove the front wheel, press the red button above the front wheel to release it from the buggy frame.
  • Page 15 VOGUE BUGGY OPTIONS VOGUE SEAT WITH STORAGE COMPARTMENT IDEAL COMPATABILITY WITH CONCOURSE SMART WHEELS 1300 650 059 | concoursegolf.com Version 2...
  • Page 16 info@concoursegolf.com concoursegolf.com 1300 650 059...
