Related Manuals for Robot Coupe R 23

Summary of Contents for Robot Coupe R 23

  • Page 1 R 23 • R 30 • R 45 • R 60...

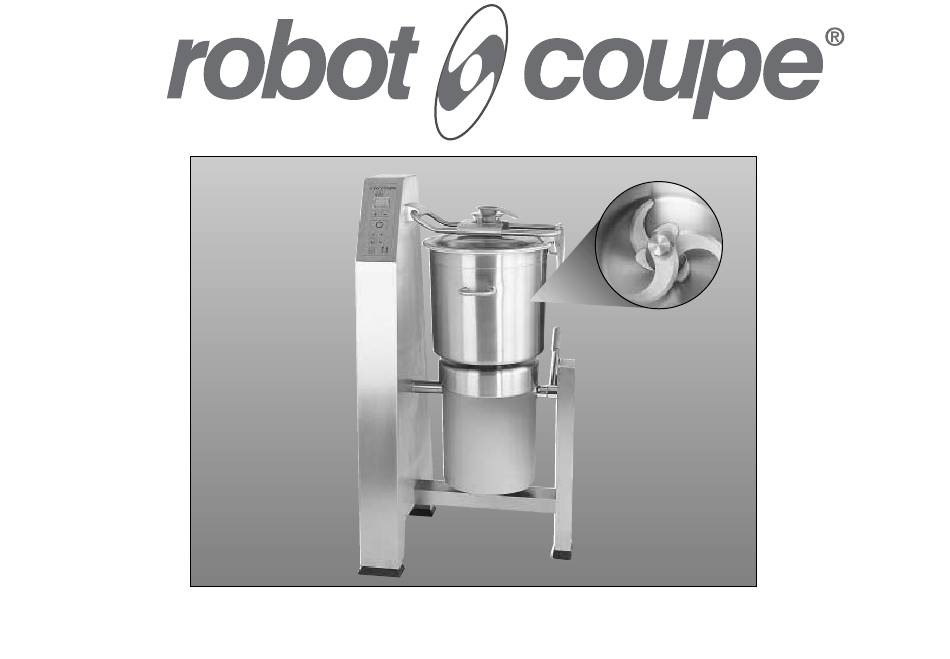

  • Page 2 • Maximum processing capacities INTRODUCING THE NEW VERTICAL • Examples of use CUTTER-MIXER R 23 • R 30 • R 45 • R 60 • Fitting and using the blade assembly • Assembling the Blixer scraper SWITCHING ON THE MACHINE •...

  • Page 3: Limited Warranty

    ROBOT-COUPE ., LIMITED WARRANTY Labour to sharpen and/ or replacements for SHIPPING DAMAGES. Visible and latent blades which have become blunt, chipped or defects are the responsibility of the freight carrier. Your new ROBOT-COUPE appliance is war- worn after a normal or excessive period of use. The consignee must inform the carrier and consi- ranted to the original buyer for a period of gnor immediately, or upon discovery in the case...
  • Page 4 IMPORTANT WARNING W A R N I N G KEEP THESE INSTRUCTIONS IN A SAFE PLACE WARNING : In order to limit accidents such as electric shocks or personal injury, and in order to limit material damage due to misuse of the appliance, please read these instructions carefully and follow them strictly.
  • Page 5 INTRODUCING THE NEW SWITCHING ON VERTICAL CUTTER-MIXER THE MACHINE R 23 • R 30 • R 45 • R 60 • ADVICE ON ELECTRICAL CONNECTIONS The vertical cutter-mixer is ideally suited to profes- The wiring must be installed by a qualified sional needs.
  • Page 6 • SAFETY INDICATOR LIGHTS clockwise direction until it is locked into position. For models R 23 • R 30 • R 45 • R 60 : The handles should • 2 green lights indicate that the appliance is ready now be facing you on for use.
  • Page 7 PRECAUTIONS • BLADE ASSEMBLIES Smooth, “crescent-sha- ped” 3-blade assembly, FOR USE In order to ensure perfect cutting results, Robot- supplied as a standard Coupe has developed new, patented blade attachment. • EMPTYING THE BOWL profiles, designed to provide an optimum cutting Distinctive feature : the 1) Open the lid by quality.
  • Page 8 FITTING AND USING THE BLADE ASSEMBLY Screw nut Wide spacer Blade Locking spacer Narrow spacer Blade shaft • 2-BLADE ASSEMBLY : • 3-BLADE ASSEMBLY : We recommend you use the 2-blade assembly for processing small quantities of up to We recommend you use the 3-blade assembly for processing large quantities of more half the maximum limit indicated (see page 22), with the exception of liquid or blended than half the maximum limit indicated, with the exception of liquid or blended prepa- preparations.
  • Page 9 OPERATING INSTRUCTIONS FOR THE VACUUM KIT R-VAC ® 1° ASSEMBLING THE VACUUM 4° ASSEMBLING THE KIT INTO THE KIT R-VAC BOWL ® Keep an eye on - Insert filter N° 2 into body N° 3 - Insert the star support N°7 into the the position of - Screw part N°...
  • Page 10 ACCESSORY • WHEELS • FRUIT Your cutter can be sup- Compotes / fruit purées • LID WIPER plied with 3 retractable wheels (exclusive to EMULSIFYING Your cutter is fitted with a ROBOT-COUPE) which lid wiper to clean the in- can be lowered or raised side surface of the lid du- Mayonnaise / aioli / taramasalata simply by lifting each...
  • Page 11 BLIXER FUNCTION • FITTING AND USING THE BLADE ASSEMBLY • MAXIMUM PROCESSING CAPACITIES 2-BLADE ASSEMBLY: The maximum processing capacities are given in the table below. Maximum processing 4 to 4 to 6 to 6 to capacities 15 Kg 20 Kg 30 Kg 45 Kg Liquid in...
  • Page 12 • ASSEMBLING THE BLIXER SCRAPER CLEANING I M P O R T A N T Assembly : W A R N I N G Check that your detergent is suitable for clea- • Insert the blixer guide 3 into ning the plastic parts. the lid: As a precaution, always unplug your appliance Certain washing agents are too alkaline (e.g.
  • Page 13 The seals are easy to replace without having to • DISMANTLING THE BLADE ASSEMBLY R 45 / R 60 remove the motor, so you are strongly advised to - Lift the blade assem- keep an eye on their state of wear. bly out of the ap- pliance •...

  • Page 14: Technical Specifications

    Model breaker + recommended (rpm) (watts) (Amp) differential - (Amp) Net weight Gross weight 1500 3700 R 23 / R 30 : 110 kg 131 kg 400 V/50 Hz/3 3000 4500 10,5 R 45 : 138 kg 165 kg 1800...
  • Page 15 Nominal Nominal Motor switch-on circuit * N O T E W A R N I N G Speed Motor power current Model breaker + recommended (rpm) (watts) (Amp) differential - (Amp) The blades are extremely sharp. When the appliance is switched on, the current is 1500 4500 Handle with care.
  • Page 16 AVANT DE DÉMARRER • BEFORE STARTING...
  • Page 51 FABRIQUÉ EN FRANCE PAR ROBOT-COUPE MADE IN FRANCE BY ROBOT-COUPE Administration Commerciale France Agence de Service Après-Vente Export Department & Service Après-Vente pour la Région Parisienne Tel. : + 33 1 43 98 88 33 - Fax : + 33 1 43 74 36 26 Tél.

This manual is also suitable for:

R 30R 45R 60

Table of Contents
