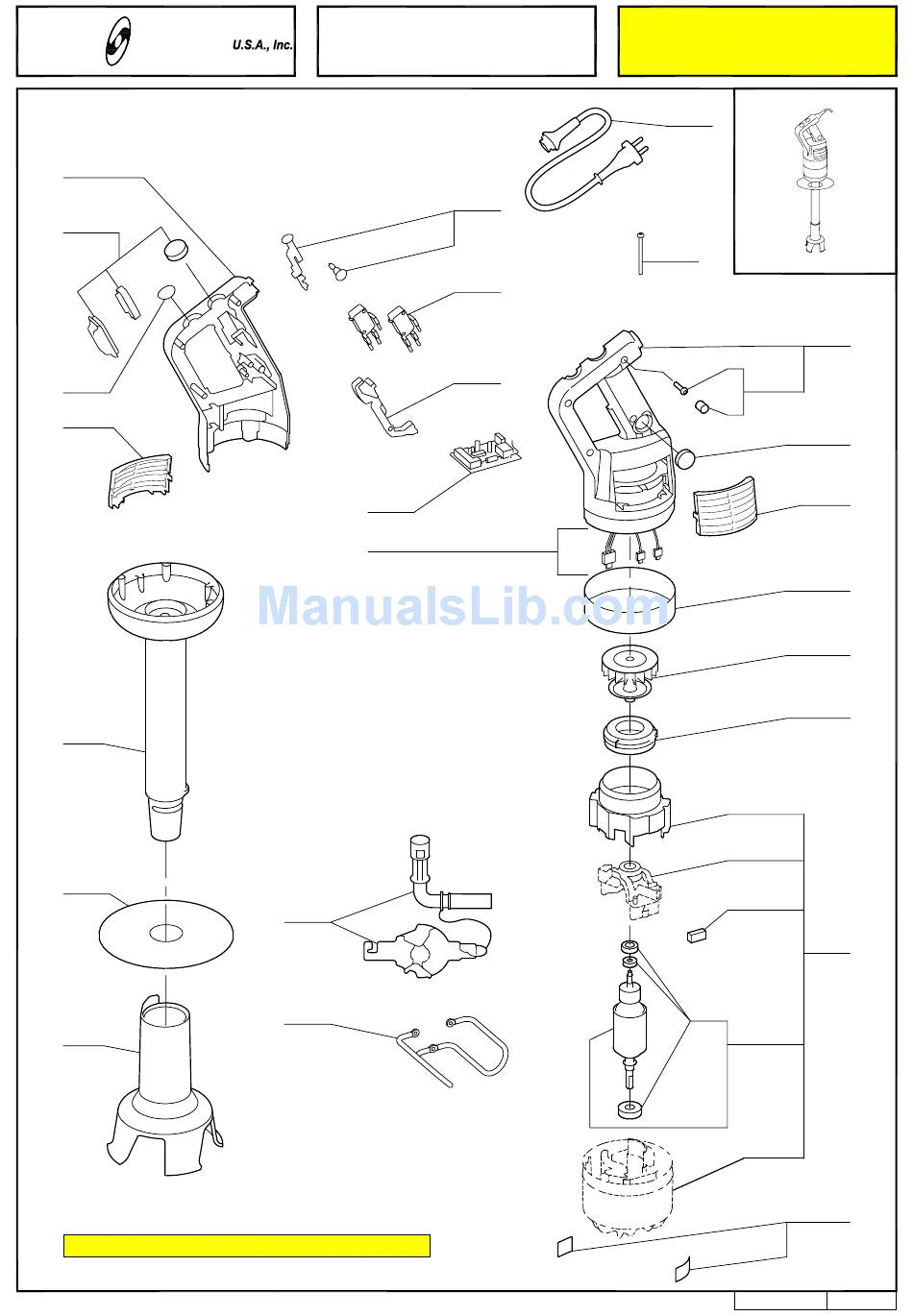

- Page 1 34 019 robot coupe ® MP 550 Serial number / N° de série - 169 - - - - - - - (x4) (x4) (x2) (x2) (x2) See next diagram / Voir dessin suivant. Maj : 10/2007 REV : g...
- Page 2 MP550 INDEX REF. DESIGNATION Pricelist in USD 89534 Release Collar "B" 42.95 89533 Screw Cover, Whisk Box Assy 12.75 89360 Handle Knob/Cap Assy "B" (Repl. 39360) 11.80 89508 MP/CMP KNOBS KIT+SCREW+CAP SCREW 8.80 89634 MPC WALL SUPPORT 10.75 89662 Tool Asst (Repl. 29540) 28.00 89629 Wall Mounting Bracket...
- Page 3 34 019 robot coupe ® MP 550 Serial number / N° de série - 169 - - - - - - - Determine the series of the tube & end bell to order some parts (see table below) Déterminer la version du tube & de la cloche pour commander certaines pièces (voir tableau ci-dessous) Original version : Tube original series &...
- Page 4 MP550 INDEX REF. DESIGNATION Pricelist in USD 89619 Spring (Repl. 102570) 1.65 89627 Upper Coupling (Repl. 102422) 23.60 89628 Seal, Shaft Encl. (Repl. 102417) 5.90 89646 Seal (Repl. 507004) 8.30 89626 Lower Coupling 23.50 89642 Seal (Repl.507000) 20.40 29539 Shaft Assy. (550) 123.25 89503 Blade (Repl.
-
Page 5: Electric Diagram
MP 350 - MP 450 - MP 550 120V/60Hz 1~ SCHEMA ELECTRIQUE ELECTRIC DIAGRAM ESQUEMA CONEXIONES English Français Espanol Aluminium housing Carter aluminium Carter aluminio Control unit Unité de contrôle Unidad de control Moteur Motor Motor On/off switch Interrupteur marche/arrêt Interruptor marcha/parada Interrupteur marche/arrêt...
