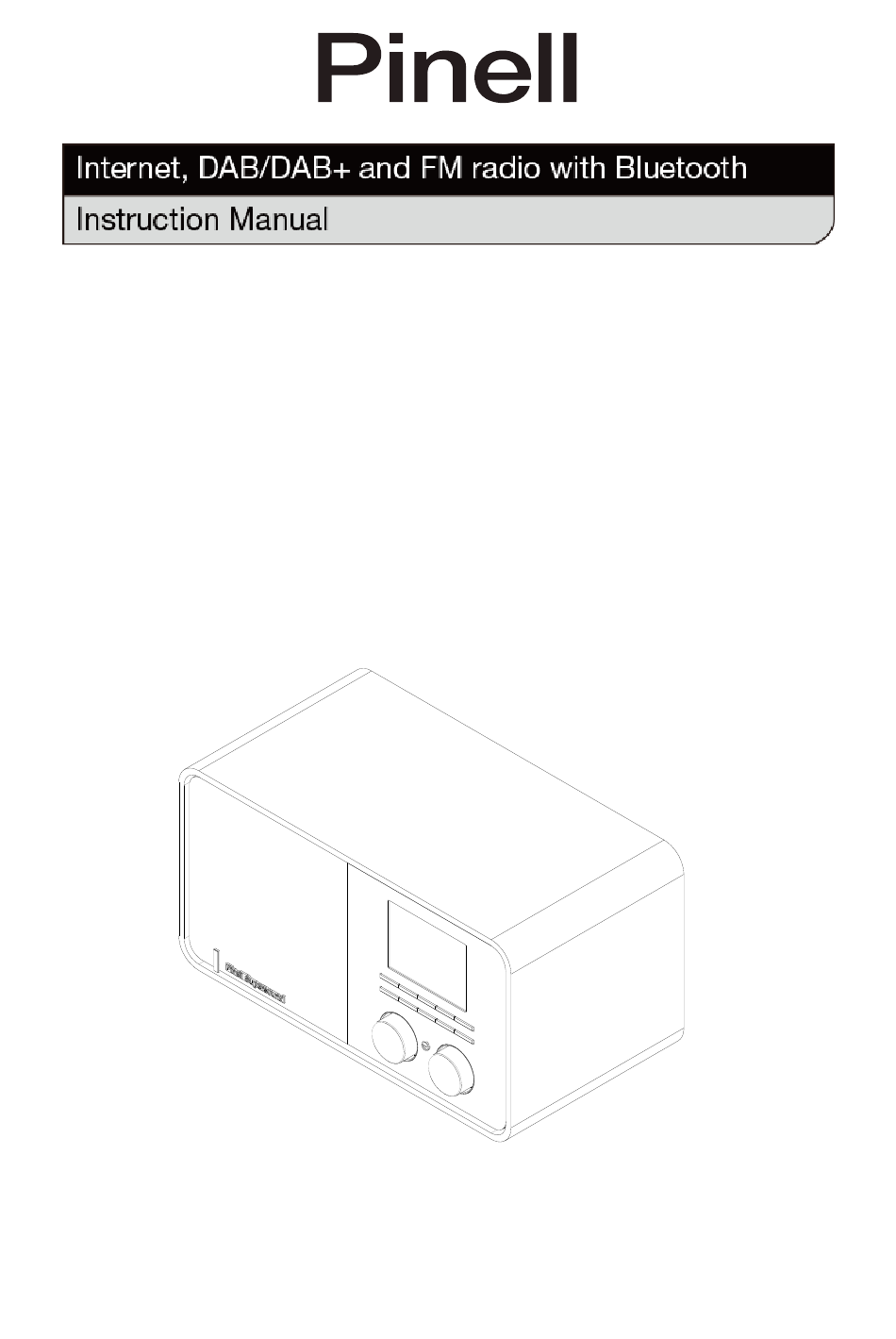

- Page 1 Pinell Supersound 301...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use the speaker near water. 6. Clean only with dry cloth. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE. - Page 3 location. 15. The means of disconnecting this apparatus from the mains supply is plug of adapter. The disconnect device shall remain readily operable. 16. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house.
-
Page 4: Table Of Contents
Contents Important Safety Instructions ......................2 Contents ............................4 Your radio ............................6 Front View ..........................6 Rear View ..........................6 Remote Control View ....................... 7 Getting Started ..........................9 Setup Wizard ..........................11 Internet Radio Mode ........................13 Local “Country” ........................13 Selecting a station through “Stations”... - Page 5 FM Mode ............................29 Selecting FM Mode ........................ 29 Scan settings .......................... 29 Audio Settings ........................29 Viewing Station Information ....................29 Storing Preset Stations ......................30 Recalling a Preset Station ...................... 30 Aux in Mode ........................... 31 Bluetooth Mode ..........................32 Wireless Control App - UNDOK .....................
-
Page 6: Your Radio
Your radio Front View Speaker BACK button Remote control sensor Press to return to previous menu screen. MENU button SCROLL knob Press to display or exit menu screen. Turn to browse options. VOLUME knob Press to confirm selection. Turn to adjust volume level. Press to activate snooze function when MODE button alarm sounds. -
Page 7: Remote Control View
Remote Control View STANDBY/ON button Press to switch radio on or standby. BACKLIGHT button Press to set backlight. MODE buttons Press to switch among Internet, Spotify, Music player, DAB, FM, Aux in and Bluetooth modes. EQ button Press to set EQ. VOL +/- buttons Press to adjust volume level. - Page 8 Replacing batteries: 1. Open the battery compartment cover at the back of your remote control. 2. Install 2pcs new AAA size batteries, referring to the markings direction inside the battery compartment. Note: do not reverse any battery and do not mix battery types, also do not mix old and new batteries.
-
Page 9: Getting Started
Getting Started Carefully remove your radio from the box. You may wish to store the packaging for future use. What you can find inside of your package Main unit x 1 Power adapter x 1 Remote control x 1 + AAA alkaline battery x 2 ... - Page 10 Using Headphones You will require headphones fitted with a 3.5 mm diameter stereo plug. The Headphones socket is located at the rear of unit. Headphones are not supplied with this radio. Turn down the volume before connecting headphones. Slowly raise the volume with the headphones on until you reach your desired level.
-
Page 11: Setup Wizard
Setup Wizard For initial use, radio will ask you to choose the language. You will then be shown “Setup wizard” screen. Press SCROLL knob to confirm “YES” to start setup. Options in the setup wizard include the following: Date/Time Set 12 or 24 hour format Auto update Synchronously update clock from the playing program you selected or set by yourself. - Page 12 Note: If a password (WEP/WPA) isn’t required by your network, radio will connect to the network automatically. Turn SCROLL knob to cycle through the alphanumeric character list, press SCROLL knob to select an appointed character. Note: WEP/WPA pass codes are case-sensitive. If a wrong operation is being conducted, select to delete designated character.
-
Page 13: Internet Radio Mode
Internet Radio Mode The display will show “Main menu” after “Setup wizard” completed. Press SCROLL knob to select Internet radio mode. While “Station list” is highlighted, press SCROLL knob to confirm. → Then refer following section to choice stations. Or if failed to connect to network, please follow: a. -
Page 14: Selecting A Station Through "Stations
Selecting a station through “Stations” Stations enables you to select a station from categories: Location, Genre, Popular stations or New stations, or search stations. Press MENU button - Station list - Stations, press SCROLL knob to confirm. → In “Stations” menu: “Location”... -
Page 15: Selecting A Program Through "Podcasts
Selecting a program through “Podcasts” Podcasts enables you to select a podcast from categories: Location or Genre, or search podcasts. Press MENU button - Station list - Podcasts, press SCROLL knob to confirm. → In “Podcasts” menu: “Location” enables you to choose from the podcasts provided by any country which you ... -
Page 16: Getting Access Code And Faq From "Help
Getting Access Code and FAQ from “Help” Press MENU button - Station list - Help, press SCROLL knob to confirm. Turn SCROLL knob to select Get access code or FAQ, and then press SCROLL knob to confirm Get access code It uses for creating an account when registering your radio on portal www.wifiradio-frontier. -
Page 17: Adding Station To "My Added Stations
To add a Favourite Station, first find a station and then click the “Add” icon. After you added the stations, in order to have your radio access your new settings, get your radio power off for several minutes is necessary. The added stations are accessible by pressing MENU button - Station list - My favourites. -
Page 18: Viewing Station Information
Viewing Station Information Internet programs broadcast additional information. Press INFO button repeatedly while a program is playing, the display will show the information through Station Description, Genre, Country, Reliability, Bit rate, Codec, Sampling Rate, Playback Buffer and Date. Storing Preset Stations Your radio can store up to 5 of your favourite Internet stations. -
Page 19: Spotify Connect
Fire up the Spotify app on your smartphone or tablet using the same wifi network as above. Play a song on Spotify and hit “DEVICES AVAILABLE”. Tap “Pinell Supersound 301” from the list and your music will start playing out loud. -
Page 21: Controlling Spotify Connect
Controlling Spotify Connect You can now control Spotify from the app like normal; search for and play your tracks, change the volume and add to playlists even though playback is through your radio. The next time you open the Spotify app, playback will continue through your radio. Spotify Connect is a cloud-based service, therefore after activation on your radio, your smartphone or tablet no longer needs to be on the same network to control audio playback. -
Page 22: Music Player Mode
Music player Mode In order for your radio to play music files from a computer, the computer must be set up to share files or media. The built-in Music player allows devices like this radio to play unprotected audio files (AAC, MP3, WMA) from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 23: Playing Shared Media
Make sure that the radio has access to the shared media by selecting it and clicking “Allow”. You can also set a name for the shared media in the box of “Name your media library”. Click “OK” to close the dialogue boxes. The PC is now ready to stream the music to the radio. -
Page 24: Repeat Play Mode
Repeat Play Mode Press MENU button, and then turn SCROLL knob to select “Repeat play: Off”, then press SCROLL knob repeatedly to shift repeat play “On” or “Off”. Shuffle Play Mode Press MENU button, and then turn SCROLL knob to select “Shuffle play: Off”, then press SCROLL knob repeatedly to shift repeat play “On”... -
Page 25: Dab Mode
DAB Mode Selecting DAB Mode Press MODE button repeatedly to select DAB mode. For initial use, radio will carry out a full scan and store stations list in memory Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. -
Page 26: Scanning Stations
Scanning Stations Press MENU button, turn SCROLL knob to select “Scan”, and then press SCROLL knob to full scan. Manual Tune This can help you when adjusting your antenna or when adding stations that were missed while auto tuning. Press MENU button, turn SCROLL knob to select “Manual tune”, and then press SCROLL knob to confirm, the display will show the channel number and frequency. -
Page 27: Changing Station Order
Changing Station Order You may want to display the stations in different order. Press MENU button, turn SCROLL knob to select “Station order”, and then press SCROLL knob to confirm. Turn SCROLL knob to select “Alphanumeric”, “Ensemble” or “Valid”, and then press SCROLL knob to confirm your selecting option. -
Page 28: Storing Preset Stations
Storing Preset Stations Your radio can store up to 5 of your favourite DAB/DAB+ stations. This will enable you to access your favourite stations quickly and easily. 1. While playing your favourite station, press and hold one of PRESET buttons 1-5 until display shows “Preset stored”. -
Page 29: Fm Mode
FM Mode Selecting FM Mode 1. Press MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected. 3. To manually scan, while FM frequency shows up, turn SCROLL knob clockwise or anti- clockwise to change frequency by 0.05MHz per step. -
Page 30: Storing Preset Stations
Storing Preset Stations Your radio can store up to 5 of your favourite FM stations. This will enable you to access your favourite stations quickly and easily. 1. While playing your favourite station, press and hold one of PRESET buttons 1-5 until display shows “Preset stored”. -
Page 31: Aux In Mode
Aux in Mode AUX IN allows for quick and easy connection to an MP3 player or other external audio sources. Before connecting to the mains socket, use a 3.5mm audio cable (not supplied) to connect to your external audio device through the AUX IN socket at the rear of unit. Connect power adapter to mains socket, press STANDBY button to switch unit on. -
Page 32: Bluetooth Mode
Press the MODE button to select Bluetooth mode. The display will flash in repeatedly. Activate your Bluetooth device and look for your radio’s model number “Pinell Supersound III” in the Bluetooth list. Select “Pinell Supersound 301” and enter “0000” for the password if necessary. -
Page 33: Wireless Control App - Undok
Start UNDOK app, making sure your radio and smartphone are connected to same WiFi network. All available devices will be listed. Tap your radio “Pinell Supersound 301 xxxxxxxxxxxx” (the 12 digit alphanumeric code is the MAC address of your radio) to connect to. - Page 34 To ensure you can use UNDOK app in all modes especially in non-internet modes (i.e. in DAB, FM, Bluetooth or Aux in mode) you need to select Main menu - System settings - Network - Keep network connected - YES. This also allows you to wake the radio from standby by using your UNDOK app.
-
Page 35: General Operation
General Operation Setting Sleep This feature enables your radio to switch to standby mode by itself after a set sleep time. Press MENU button - Main menu - Sleep, and then press SCROLL knob to confirm. Turn SCROLL knob to select a sleep time, and then press SCROLL knob to confirm. The sleep icon and sleep time will show on the display. -
Page 36: Setting Equaliser
Setting Equaliser This feature enables you to choose a sound equalization profile. Each of the equalization setting will change the tone of the sound from your radio when selected. Press MENU button - Main menu - System settings - Equaliser, and then press SCROLL knob to confirm. -
Page 37: Setting Time/Date
Setting Time/Date Press MENU button - Main menu - System settings - Time/Date, press SCROLL knob to confirm. Turn SCROLL knob to select options, and then press SCROLL knob to confirm the setting. Set Time/date: Manually set-up both Time and Date “Update from DAB”, “Update from FM”, “Update from Auto update: Network”... -
Page 38: Setup Wizard
unit. 1. Press MENU button - Main menu - System settings - Software update, press SCROLL knob to confirm. 2. Turn SCROLL knob to select “Auto-check setting”, your radio will check periodically for new version software. 3. Turn SCROLL knob to select “Check now”, your radio will now to check new version software and automatically upgrade the detected new version software. -
Page 40: Multi-Room
Multi-room Multi-room is a feature that enables you control your radio (one or more) via UNDOK App for playback. You can enjoy music by using your smartphone or tablet which has UNDOK App to respectively control the radios (multi-room capable devices) in the kitchen, bedroom or living room. Of course you also can group control the radios for playing. - Page 41 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6...
- Page 42 Fig. 7 Fig. 8 Fig. 9 Alternatively, you can edit group through your receiver. Press MENU button - Main menu - System settings - Multi-room, and then press SCROLL knob to confirm. Turn SCROLL knob to select options, and then press SCROLL knob to confirm. View your radio state (Ungrouped, Server or Client) and the View details group which it belong to.
-
Page 43: Troubleshooting
Troubleshooting If a problem occurs, it may often be due to something very minor. The following table contains various tips. Problem Solution No Power. Ensure the mains cable is properly connected or battery power is not used up. Make sure that the unit is turned on. ... -
Page 44: Specifications
Specifications Model: Pinell Supersound 301 Power Adapter (Use only power adapter listed below) BRIGHTPOWER OPTOELECTRONIC Power Adapter Manufacturer: TECHNOLOGY CO., LTD Power Adapter Model: SW1201000-W02 Input: AC 100-240V, 50-60Hz Output: DC 12V, 1000mA Main Unit Power Supply: DC 12V, 1000mA... - Page 45 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. For more information, please contact the local authority or your retailer where you purchased the product.
