Copyright
© 2018 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
This document may not be reproduced, disseminated or republished in any form without the prior written permission of
HID Global Corporation.
Contents
AW2
Mounting
1.
Slide the AW2 firmly into a
vacant position.
Secure the AW2 using all
2.
four mounting screws
Note:
Please see the Installation Guide for details and advanced features.
Quick Install
Guide
Mounting
Metal-Oxide
Screws

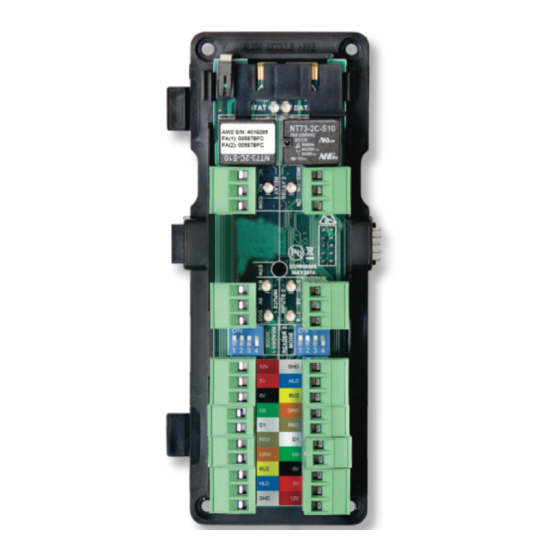

Wiegand Door Module
Spare Label
Cable Ties
Varistors
AW2
Quick Install Guide
AW2-901-EN, Rev. A.1
PLT-03463 A.1
