CDSLS0142-12

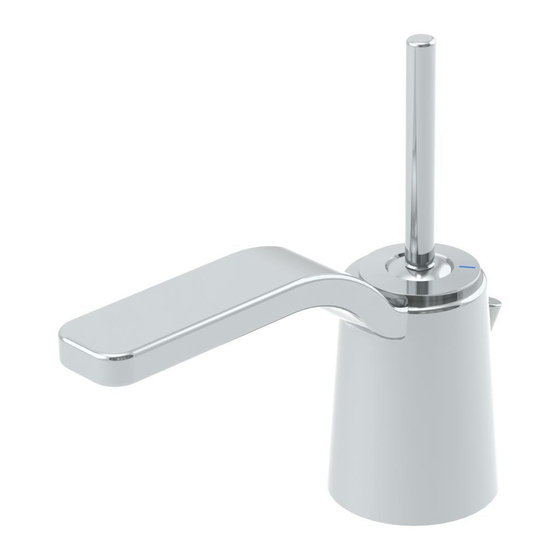

Joystick Faucet
Installation Guide
Model Numbers
CDSLS0142-12
Dimensions
A
B
C
(HOLE SIZE)
Note:
1) Dimensions are subject to change without notice.
Symmons Industries, Inc.
1
©2013 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com
Joystick faucet
G
31 Brooks Drive
Specification
Single handle faucet made from metal components
featuring joystick handle. Faucet includes 1.5 gpm
lift rod. Faucet, pop up drain assembly and lift rod in
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
D
E
F
Braintree, MA 02184
(800)796-6667
Measurements
A
2 3/8", 60 mm
Min. 1 3/8", 178 mm
B
Max. 2", 51 mm
C
1 1/2", 32 mm
D
6 15/16", 176 mm
E
1 1/16", 27 mm
F
6 1/2"", 165 mm
G
3 3/4", 95 mm
Fax: (800)961-9621
ZV-2096 REV B 07/23/13
