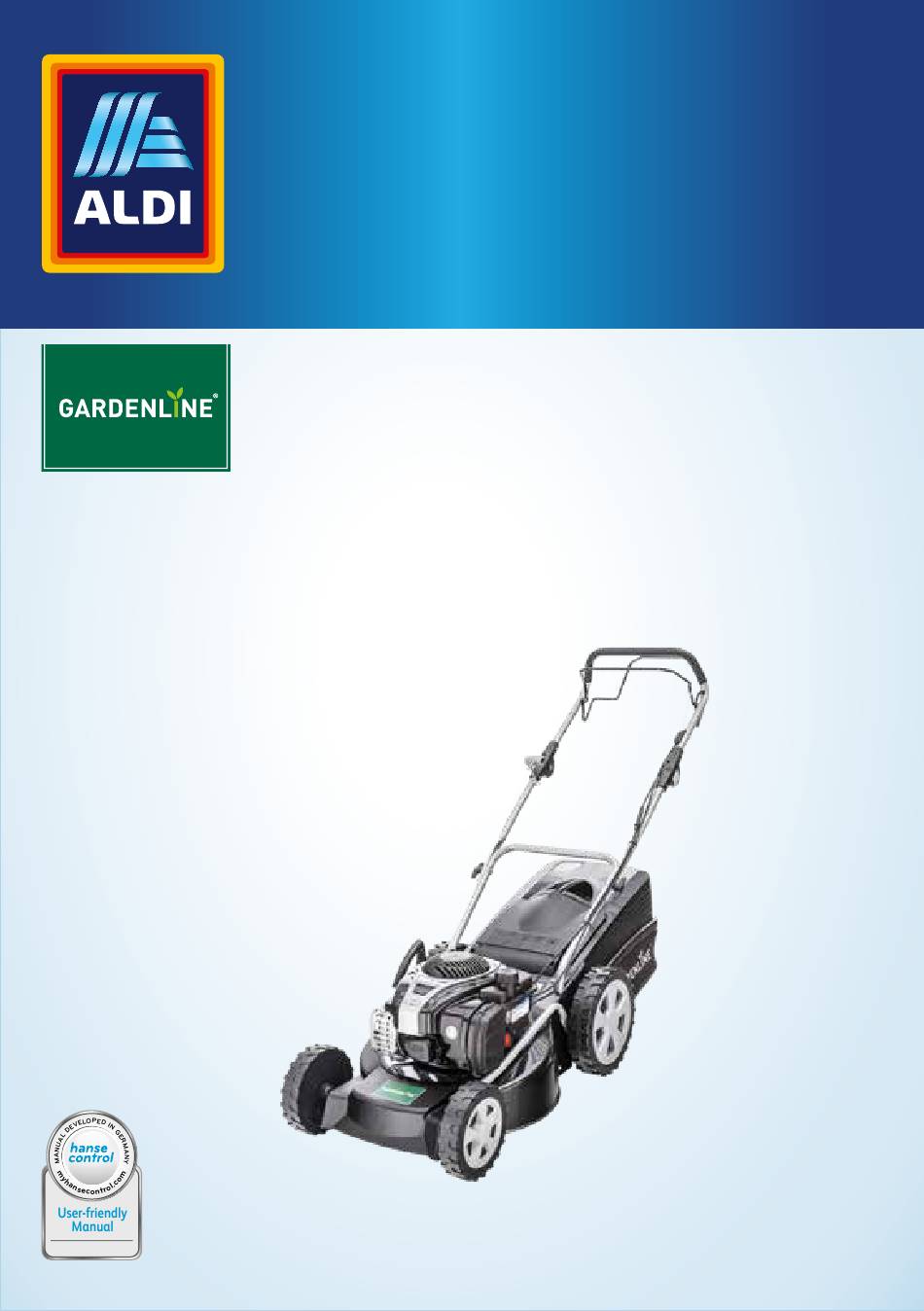

User Manual
PETROL LAWN MOWER
GL 46
Original instructions
ID: #05007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL 46 and is the answer not in the manual?

Questions and answers

Related Manuals for Gardenline GL 46

Summary of Contents for Gardenline GL 46

  • Page 1 User Manual PETROL LAWN MOWER GL 46 Original instructions ID: #05007...

  • Page 2: Table Of Contents

    Contents Overview ................3 Use ..................4 Package contents/parts list ..........6 General information ............7 Read and keep the user manual ..........7 Explanation of symbols ............7 Symbols on the lawn mower ..........9 Safety ................. 10 Proper use ................10 Residual risks ................10 Safety and maintenance guidelines........10 Safety notices ................11 Initial use ................
  • Page 5 33 34 35 14 13...

  • Page 6: Package Contents/Parts List

    Package contents/parts list Gear selector arm (wheel drive) ∅ 3×25 mm screw, 2× Upper handle M5×16 mm screw, 2× Bowden cable M5 domed cap nut, 2× Cable tie, 2× Fill level indicator Handle cover (top part of grass catcher Grass catcher bag bag) Flap Leg spring (flap) Primer bulb (fuel pump)

  • Page 7: General Information

    General information General information Read and keep the user manual This user manual accompanies this Petrol Lawn Mower GL 46 (hereinafter referred to simply as ‘lawn mower’). It contains important information on safety, usage and care. Read this user manual carefully before using the lawn mower.
  • Page 8 General information Dimensions: 1450 × 530 × 1080 mm The lawn mower weighs approx. 30.8 kg. The cutting width is approx. 46 mm. You can adjust the cutting height for a lawn length of approx. 3–8 cm. The grass catcher bag can hold up to 65 l. The lawn mower motor has a power output of 2.2 kW/2900 min Handle vibration value: a =3.5 m/s...

  • Page 9: Symbols On The Lawn Mower

    General information Symbols on the lawn mower Symbol Meaning Attachment point WARNING! Flap Be particularly careful when handling the lawn mower. First read and understand the user manual! Flap The cutting blade is very sharp – keep your hands and feet away from the cutting Flap blade! Risk posed by discharged objects when the...

  • Page 10: Safety

    Safety Safety Proper use The lawn mower is designed exclusively for mowing lawns in domestic gardens and allot- ment gardens. It is only intended for private use and is not suitable for commercial use. Any other application is expressly prohibited and deemed improper use. Neither the manufacturer nor the retailer can accept responsibility of any kind for in- jury, loss or damage caused by misuse of this product.

  • Page 11: Safety Notices

    Safety Safety notices DANGER! Risk of explosion, fire and damage to health! Improper handling of petrol or oil may lead to an explosion or a fire and can thereby damage your health through improper use. − Petrol is highly flammable. Keep the lawn mower away from open flames and do not smoke when adding fuel.
  • Page 12 Safety WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children). − The lawn mower may not be used by children and persons with impaired physical, sensory or mental capacities or a lack of experience and knowledge.
  • Page 13 Safety − Please observe the information supplied on the sound and vibration caused by this lawn mower (see chapter ‘Noise/vibration information’). − Please also observe the separate user manual for the motor. WARNING! Risk of injury! Improper use, improper maintenance or improper work with the lawn mower may result in dangerous situations and injury.
  • Page 14 Safety − Stop the motor, unplug the spark plug, and make sure all moving parts have come to a complete stop: − before loosening or removing blockages or obstructions from the grass discharger. − before checking, cleaning or servicing the lawn mower. −...
  • Page 15 Safety − Always mow horizontally to the slope when on sloped terrain; never up or down slopes. For safety reasons, do not mow slopes with an incline greater than 20°. − Be extra cautious when you change the mowing direction on sloped terrain. −...

  • Page 16: Initial Use

    Initial use Initial use Checking the lawn mower and package contents NOTICE! Risk of damage! If you are not cautious when opening the packaging with a sharp knife or other pointy objects, you may damage the lawn mower. − Be careful when opening the package. Two people are required to remove the lawn mower from the packaging.
  • Page 17 Initial use 6. Insert the metal bracket into the corresponding holes in the top part of the grass catcher bag and guide the support plates into the corresponding slots in the top part of the grass catcher bag (see Fig. C). 7.

  • Page 18: Preparations

    Preparations 6. From the outside, put a 8.5/15.5 mm washer onto the screw. 7. Use two wing nuts to tighten the two screws. 8. Install the pull starter bracket on the upper handle by inserting the M8 × 45 screw through the upper handle, the pull starter bracket and the ∅ 6.4 / washer from the outside (see Fig.
  • Page 19 Preparations − Switch off the motor and let the lawn mower cool down before filling the petrol tank or oil tank. Overflowing fuel may otherwise catch fire. − Only refill the lawn mower in well-ventilated areas. Petrol fumes can catch fire or explode when they accumulate.
  • Page 20 Preparations 1. Turn the fuel tank cap anticlockwise (Symbol )  and remove it (see Fig. A). 2. Use a funnel to carefully add fuel to the tank. The fuel tank can hold up to 0.75 l and must not be overfilled. Be very careful when adding fuel to the tank and make sure not to spill any fuel.

  • Page 21: Settings

    Preparations Settings Adjusting the height of the upper handle 1. On both sides of the upper handle, open up the clamping levers used for ad- handle (see Fig. N). justing the height of the upper 2. Adjust the upper handle to the desired height. When mowing, take care to keep a normal body position (e.g.

  • Page 22: Using The Lawn Mower

    Using the lawn mower Using the lawn mower DANGER! Risk of fire and explosion! Petrol is highly flammable. Accidentally spilled fuel may catch on fire when you start up the lawn mower. There is a risk of fire and explosion! −...

  • Page 23: Starting And Stopping The Motor

    Using the lawn mower WARNING! Risk of injury! Improper handling of the lawn mower may result in injury. − Always turn off the lawn mower’s motor when you stop or interrupt your work. Also always stop the motor during short breaks. WARNING! Risk of injury! Improperly installed mower parts or broken mower parts may result in injury.
  • Page 24 Using the lawn mower 4. Pull the bail control arm up to the upper handle’s handlebar and hold it in po- sition to release the engine brake and automatic switch-off. 5. Slowly pull the pull starter until you feel a little resistance, then quickly and forcefully pull it until the motor starts running.

  • Page 25: Using The Wheel Drive

    Using the lawn mower Using the wheel drive The lawn mower is equipped with wheel drive that facilitates the work of the operator. − While the motor is running, slowly pull the gear selector arm to the upper handle’s handlebar and hold it there in order to use the wheel drive (see Fig. A).

  • Page 26: Emptying The Grass Catcher Bag

    Using the lawn mower Emptying the grass catcher bag DANGER! Fire hazard! Grass clippings left in the grass catcher bag increase the risk of fire. − After each lawn mower use, empty the grass catcher bag even when it is not full.

  • Page 27: Cleaning

    Cleaning 5. Lift the flap and use a hand brush, etc. to remove any grass clippings from the grass discharger, if necessary. Keep the grass clippings and any obstructions out of the grass discharger to make sure the mown grass can be transported to the grass catcher bag. 6.

  • Page 28: Maintenance

    Maintenance − Do not use any aggressive cleaners such as cold cleaners or benzine (spirit solvent). The lawn mower must be cleaned on a regular basis in order to achieve the best mowing results. Clean your lawn mower immediately after each use. −...
  • Page 29 Maintenance after each after 8 hours after 25 hours after 50 use, of use or of use or hours of use daily, yearly, or yearly, Lawn mower Cleaning Cleaning Cleaning Cleaning Air filter Cleaning Cleaning Exchange Spark plug Cleaning Cleaning Exchange Motor oil Test...
  • Page 30 Maintenance 4. Slide the air filter back onto the bracket. 5. Reattach the filter cover by first hooking the two hooks on the lower part of the fil- ter cover. Then click the top of the filter cover back into the receptacle. Motor oil WARNING! Risk of injury!
  • Page 31 Maintenance Checking and replacing the cutting blade WARNING! Risk of injury! The lawn mower’s cutting blade is very sharp. You could severely injure yourself on it. − For safety reasons, have a qualified professional sharpen, balance and install the blades. −...

  • Page 32: Storage

    Storage The manufacturer recommends inspecting the cutting blade once a year to achieve the best possible cutting results. − Have a qualified professional replace the cutting blade if it is severely worn or dull. − Replace the cutting blade after 50 hours of use or after two years, whichever comes first.
  • Page 33 Storage Short-term storage If you do not use the lawn mower for a short period of time (less than 15 days), you do not need to carry out major maintenance work (see chapter “Longer-term storage”). 1. Allow the motor to cool completely. 2.

  • Page 34: Transport

    Transport Transport WARNING! Risk of explosion and fire! Fuel may leak out if you transport the lawn mower with a filled fuel tank. This could cause an explosion or a fire. − Use a petrol suction pump to completely remove fuel from the lawn mower’s fuel tank before transporting the lawn mower.

  • Page 35: Technical Data

    The V-belt is defective. Contact After Sales Support or another qualified professional to have the defective V-belt replaced. Technical data Model: GL 46 / 119919 Article number: 97814 Motor: Single-cylinder four-stroke engine (Briggs & Stratton engine) Output: 2.2 kW / 2900 min...

  • Page 36: Spare Parts

    Spare parts Spare parts The spare parts chart for the machine can be found on our website at: www.al-ko.com/service-aldi. Spare parts are available from the authorised dealer or our service department. Recommended spark plugs: QC12YC or RC12YC Recommended blade: mulching knife 46 – Art. 440125 Noise/vibration information WARNING! Health hazard!

  • Page 37: Disposal

    Disposal WARNING! The aforementioned vibration emission level (vibration value) has been measured in accordance with a test method standardised in EN ISO 5395-1:2013 and can be used to compare one device to another. It is also suited for preliminary estimation of loading by vibration.
  • Page 38 Disposal Disposal of the lawn mower − Dispose of the lawn mower in accordance with the applicable disposal regula- tions for your country. − If at some point it is no longer possible to use the lawn mower, return it to a collection point in your community/borough.

  • Page 39: Declaration Of Conformity

    Declaration of conformity EU/EC Declaration of Conformity Original Declaration of Conformity We hereby declare under our sole responsibility that this product, in the form distributed on the market, meets the requirements of the harmonised EU directives, EU safety standards and other product-specific standards. Product Manufacturer Authorised person for documentation...
  • Page 40 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 97814 +44 (0) 808 169 8390 aldi.uk@al-ko.com YEAR MODEL: WARRANTY GL 46 / 119919 03/2019...
