1200W Rake and Scarifier
Operating Instructions - User Guide
After Sales Support
Now you have purchased a Gardenline
product you can rest assured in the
knowledge that as well as your
3 year parts and labour guarantee
you have the added peace of
mind of dedicated helplines
and web support.
AFTER SALES SUPPORT
0151 649 1500
GB
1890 946244
IRE
MODEL: GLSA 1231, 61307, 08/2014
®
www.einhell.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLSA 1231 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardenline GLSA 1231

Summary of Contents for Gardenline GLSA 1231

  • Page 1 1200W Rake and Scarifier Operating Instructions - User Guide After Sales Support Now you have purchased a Gardenline ® product you can rest assured in the knowledge that as well as your 3 year parts and labour guarantee you have the added peace of mind of dedicated helplines and web support.

  • Page 2: Table Of Contents

    Contents Page Welcome General Information and Safety Instructions 8-14 Assembly and Parts List Features 16-19 Instructions 20-24 Useful information Warranty Card AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 3: Welcome

    ALDI. We want you to be completely satisfied with your purchase so this Gardenline ® product is backed by a comprehensive manufacturer’s 3 year warranty and an outstanding after sales service through our dedicated Helpline.

  • Page 4: General Information And Safety Instructions

    Keep extension cables away from the cutters. The cutters can damage the cables and result in contact with live parts. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 5 If you operate equipment with an ejector at the rear and exposed rear rollers without a debris device, you must wear full eye protection at all times. • Wear hearing and eye protection whilst operating the machine. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 6 IMPORTANT! Keep the extension cables away from the teeth. The teeth could damage the cables and lead to contact with active parts. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 7 Never move your hands or feet toward or under any rotating parts. Keep clear of the chute opening at all times; Never lift or carry the equipment with the engine running. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

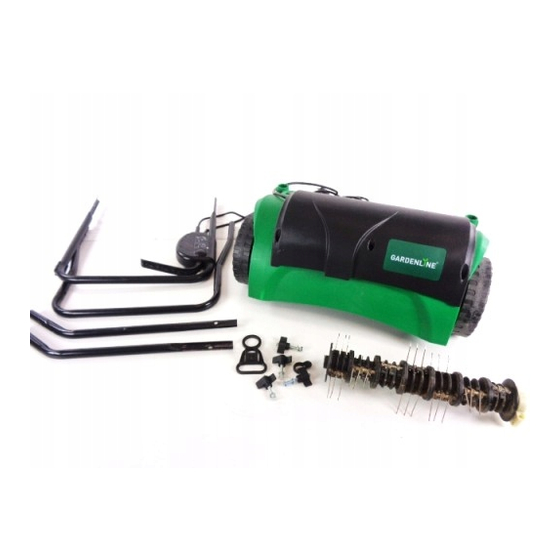

  • Page 8 Ejector flap Frame parts for grass basket Cable clips Fastening screws for push bar Retaining screws for push bar Rake roller Scarifier roller Hexagon Allen Key Fig 1 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 9 Insert the push bar brackets (Fig. 3/Item 7) into the provided openings (Fig. 4). Then fasten the brackets with the retaining screws (Fig. 4/Item 14). Fig 3 Fig 4 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 10 Position the upper push bar (Fig. 1/Item 5) such that its holes line up with the holes of the lower bar. IMPORTANT! Please ensure that the ejector flap can be opened and closed easily! Fig 5 Fig 6 Fig 7 Fig 8 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 11 Before you hook the grass basket to the scarifier you must ensure that the motor is switched off and the cutting unit is not rotating. Fig 9 Fig 10 Fig 11 Fig 12 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 12 The scarifier depth must always be identically set on both sides! 0 = drive/transport position I = scarifier depth 3 mm II = scarifier depth 7 mm III = scarifier depth 9 mm Fig 13 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 13 Keep the power cable away from the cutting unit. Wear hearing and eye protection. Keep the power cable away from the roller. Fig 14 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 14 The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of such misuse. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 15: Features

    For your added protection we recommend that the mains outlet used for the Scarifier is equipped with an RCD (Residual Current Device). The operating current of this device must be no greater than 30mA. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 16: Instructions

    For safety reasons, the scarifier may not be used to scarify inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the scarifier (tripping hazard)! AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 17 Scarify away from the power outlet and cable, making sure that the power cable always trails in the already scarified grass so that the equipment does not travel over the cable. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 18 Before the start of every season, it is absolutely necessary to check the state of the scarifier. Contact our Customer Service (see address on the warranty certificate) if repair work is necessary. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 19 (Fig. 19/Item 19) and press into the holder (Fig. 20). - Refasten the roller with the two Allen screws (Fig. 17/Item 18). Fig 17 Fig 18 Fig 19 Fig 20 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 20: Useful Information

    There are no parts inside the equipment which require additional maintenance Re-ordering replacement parts Please quote the following data when ordering replacement parts: • Type of machine (GLSA 1231) • Article number of the machine (34.205.08) • Identification number of the machine (11014) •...
  • Page 21 Do not overload the appliance. • Have the appliance serviced whenever necessary. • Switch the appliance off when it is not in use. • Wear protective gloves and ear defenders. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 22 This does not apply to the accessories and auxiliary equipment which are included with the used device. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 23 IMPORTANT! To protect the motor it is equipped with a thermal overload switch which cuts out when overloaded and starts again automatically after a short cooling-down period. AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 24 Useful Information AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 25: Faq

    What do I do if I accidentally cut the 1. Fit a waterproof connector to re-join the cable. mains cable? 2. Or replace the mains cable into the unit AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 26 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...
  • Page 27 AFTER SALES SUPPORT 0151 649 1500 1890 946244 www.einhell.co.uk GLSA 1231, 61307, 08/2014...

  • Page 28: Warranty Card

    0151 649 1500 Einhell UK Ltd www.einhell.co.uk 1890 946244 Unit 9, Stadium Court Wirral International Business Park MODEL: GLSA 1231, 61307, 08/2014 Plantation Road Bromborough CH62 3QG Monday to Thursday 8:45am - 5pm, Friday 8:45am - 3pm. Calls cost 10p per minute from a landline, calls from mobiles may vary.
