- Page 1 User Manual STVI Smart Touch View Interface SPI225 Smart Primary Injection Test System PN: 81127 Rev 4, 6/2017...
-
Page 2: Revision History
Revision History Revision ECN # Date 32660 11/26/2014 32893 9/27/2015 32994 2/19/2016 33376 6/26/2017 PN: 81127 Rev 4, 6/2017... - Page 3 Waste Electrical and Electronic Equipment - The crossed out wheeled waste bin placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. Please utilize your local WEEE collection facilities, or observe all applicable local requirements.
-
Page 4: Safety Precautions
Caution (refer to accompanying documents) WARNING: Under no circumstances should the operator or technician attempt to open or service any Megger instrument while connected to a power source. Lethal voltages are present and may cause serious injury or death! PN: 81127... - Page 5 The purpose of this equipment is limited to use as described in this instruction manual. Should a situation arise that is not covered in the general or specific safety precaution please contact Megger regional representative or Megger, Dallas, Texas. Safety is the responsibility of the user. Misuse of this equipment can be extremely dangerous.
-
Page 6: Table Of Contents
SPI225 ................................0 Smart Primary Injection Test System ....................... 0 Revision History ............................1 Safety Precautions ............................3 STVI Introduction ..........................8 Smart Touch View Interface ....................... 8 Terminology ............................9 1.2.1 Glossary of Terms for Circuit Breaker Testing ................9 1.2.2.1... - Page 7 Advanced Timing Test Setup ....................... 39 3.5.1.1 Breaker Manufacturer and Curve Selection ................40 3.5.2 Advanced Pickup and Timing Test Screen .................. 41 3.5.2.1 PC or STVI to SPI connection button ..................41 3.5.2.2 Configuration button ........................41 3.5.2.3 View Report button ........................41 3.5.2.4 Clear Results button .........................
- Page 8 Warranty Statement ........................48 Service Data ............................ 48 Preventive Maintenance ........................ 48 5.1.1 Examine the Unit .......................... 48 5.1.2 Upgrading STVI Software ......................48 Updating SPI225 Firmware ......................49 Service and Repair Instructions ....................50 5.3.1 Basic Troubleshooting ........................50 5.3.1.1 Power Input ..........................
-
Page 9: Stvi Introduction

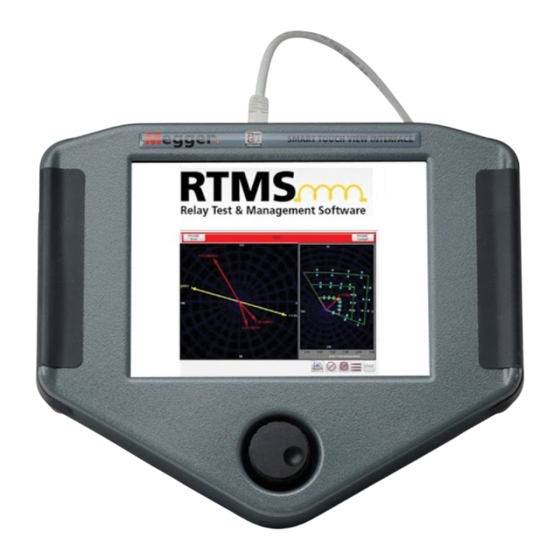

The STVI is a user friendly interface to control the Megger SPI test equipment. This manual contains the information that you will need in order to set up and use your STVI with the SPI Device. How the unit operates, some of the different types of testing you can do, and how to save and view your test results with the Smart Touch View Interface software is described. -
Page 10: Terminology
5. USB Interface – the USB port is used to update the firmware in the SPI as well as update the software in the STVI using a USB memory stick. It may also be used to download test results from the STVI for download into another PC with Power DB software for storage or printing. For control of the SPI, an Ethernet cable is provided. -
Page 11: Test Multiple
A numerical value associated with the highest current at rated voltage that the device can interrupt without external damage. Power Over Ethernet Input Power The STVI gets Power Over Ethernet (PoE) of 48 Volts DC at 0.5 A from the SPI STVI port. SETUP Unpack System Unpack the unit and check for evidence of any shipping damage. -
Page 12: Ethernet Port
2.2.1 Ethernet Port There is one Ethernet port on the STVI for connecting to the SPI unit. Connect the STVI to the SPI unit using the port labeled STVI (as shown in Figure 3). Figure 3 - STVI port on the SPI 2.2.2... -
Page 13: Smart Touch View Interface
Smart Touch View Interface The STVI is the manual control and user interface for the unit. All manual entries will be made through the STVI unless the unit is connected to a personal computer. During the power up sequence the test system automatically does a self-test to insure everything is operating properly. - Page 14 The PC version will then display the Instrument Configuration screen as shown in Figure 6. Click the OK button and the software will attempt to auto detect an instrument and connect. If no instrument is detected due to firewall, VPN settings or an incorrect IP address the user will need to take appropriate corrective action.
-
Page 15: Configuration
The PC version of the software will then display the main SPI Startup Screen. Note that the connection icon in the upper left corner will have a green background indicating that the SPI unit is connected and the IP address was automatically set through the Ethernet port. The auto-detect process does not require the user to enter an IP address. -
Page 16: Max Time
Pressing this button will display the Configuration screen (see Figure 9). Note: The following button descriptions vary depending on hardware configuration and the version of the SPI software. The STVI version of the software includes extra buttons as indicated with an * in the descriptions below. -
Page 17: Current Actuate Mode
Controls the modes to stop the Timer and turn the output off. Pressing the button will present to the user with three selections: Current Actuate, Dry Contacts Normally Open/Closed, and Voltage Applied/Removed, see the following descriptions. 2.3.1.4.1 Current Actuate Mode Current Actuate Mode: Timer will initiate only when the output circuit is completed, and a threshold current of approximately 10% of the selected test current is exceeded. -
Page 18: 2.3.1.5 Help Button
This information is useful when calling Megger for service or technical support related issues. 2.3.1.8 Update Firmware This button is used to update the SPI firmware. 2.3.1.9 Current Status Displays the SPI current status screen. This information is mainly for use by Megger support staff. 2.3.1.10 Time Unit PN: 81127... -
Page 19: Bluetooth Pwd
Ethernet (DHCP) IP Address The STVI will auto-detect the SPI unit (the DHCP mode does not require the user to input an IP address). If the unit is on a network with a DHCP server, the user must use the Auto Discovery mode. Using the STVI, pressing the DHCP button will produce the Static IP Address Dialog box. -
Page 20: Set Date And Time
For the PC version use the PC screen controls to adjust the display. 2.3.1.22 Logging* Select this button to set up the logging with the STVI. The log will store a record of the commands sent to the SPI unit from the STVI (used when troubleshooting). 2.3.1.23 Screen Exit... -
Page 21: Setting Output Currents
2.4.2 Manual Ramping The output current can be ramped manually using either the Control Knob on the STVI or the up/down arrow keys/mouse wheel on the PC version. The amplitude of each step is set using the Increment Selection Screen (Figure 14) accessed by pressing the Increment button. -
Page 22: Control Knob
Add Results and View Results screens, or when viewing the Help screen. 2.4.4 Virtual Alphanumeric Keyboard The virtual alphanumeric keyboard allows the entry of ASCII text into the appropriate STVI windows. This keypad is used to enter information in the Nameplate Data screen or file names in the file management screen. -
Page 23: Stvi - File Management
This icon only appears on the STVI (not on PC version). It provides the user the ability to save tests or open saved tests. If using the PC version users will have the PowerDB file system to save test (job) files (see PowerDB Help). - Page 24 To save results directly to a USB memory stick check the Save to USB box. To transfer test results from the STVI to a USB memory stick use the up down blue colored buttons to selected the desired test result to be transferred and then press on the USB button.
-
Page 25: Stvi - Basic Operating Descriptions
STVI – Basic Operating Descriptions This section describes basic operating procedures for using the STVI with the SPI for such applications as basic pickup, basic timing test, paralleling current outputs from multiple SPI units. STVI / PC Manual Test Screen Pressing the Manual test button will present the user with the Manual Test screen. -
Page 26: Add To Report Button
Press this button to access the online manual or for help associated with the Configuration Screen. 3.1.10 Requested Current (A) Amplitude Button Pressing or clicking this button will provide the user with the virtual numeric keypad (STVI), or use the keyboard (PC version) to enter the desired test current. 3.1.11 Mode Button Pressing or clicking on the Mode button will toggle between Continuous and Momentary Modes. -
Page 27: Momentary Mode
3.1.11.1 Momentary Mode In the Momentary Mode the output current will come on after pressing the Blue Play button, and will only stay on for the Pulse On Duration Time setting in the Configuration Screen, see 2.3.1.14. When rotating the Control Knob, or the up/down cursor arrows on the PC keyboard, the output current will pulse on for the Duration Time with each increment, thus allowing an instantaneous pickup test (Duration Time needs to be set longer than the expected instantaneous pickup time). - Page 28 Increment button and set the increment value. Once the test has started, each time the PC up/down arrow keys are pressed, or the control knob on the STVI is rotated, the output will increment up or down by the entered value. To manually stop the test or turn the output off, press or...
-
Page 29: Timer Display Window
3.2.1 Selection of Output Leads The Megger SPI unit is equipped with output connecting bars and a 125 A output tap for attachment of the provided high current test leads or other leads suitable for the test application. The SPI unit comes with appropriate test leads and attachments rated for the output of the unit. There are two sets of leads provided with the SPI unit. - Page 30 Figure 21 - High Current Test Lead There is also a dedicated test lead (AWG #6 cable assembly with lead adapter) that connects to the 125 Amp output tap. It has a special twist lock connector that plugs into the 125 Amp output tap and works in Figure 22 - 125 Amp Twist Lock Connector conjunction with the 500 Amp (black) return cable.
-
Page 31: Spi225 Output Current And Overload Capability
Figure 23 - Test Lead Adapter with Screw-in Accessories Due to the voltage drop from the inductive reactance of the test circuit, a significant loss of current will result for each inch of test lead. Therefore, when choosing test leads (other than the leads provided) the length and size of leads chosen will determine the maximum available test current. -
Page 32: Parallel Operation
3. Connect the STVI (or PC) to the Master unit STVI port (or the IN port for the pc). When the Select Number of Slave Units menu appears press or click on 1. -
Page 33: Three Or Four Spi Units In Parallel
SPI units in a Master/slave configuration. 5. With the STVI (or PC) connected to the Master unit STVI port (or the IN port for a pc), when the Select Number of Slave Unit menu appears press or click on the number of slave units in use. -
Page 34: Series Operation
Megger insure that the wire has sufficient size to carry the test current. 3. Connect the STVI (or PC) to the Master unit STVI port (or the IN port for the pc). When the Select Number of Slave Units menu appears press or click on 1. - Page 35 Figure 25 - Series Connection of Two SPI Units PN: 81127 Rev 4, 6/2017...
-
Page 36: Manual Test
Manual Test The manual test section is designed for general purpose high current test applications or primary current tests such as motor overload relays, etc. It may also be used to test single pole molded case circuit breakers by configuring the Timer Stop for Current Actuation, see section 2.3.1.4 (Timer Stop Cfg) for more information. - Page 37 Figure 27 - Example SPI Test Report When using the STVI, use the Control Knob to scroll up and down to view all results. Note that there is a space in the upper right corner for a company logo to provide a finished and professional look (see Tools menu, Options dialog on the pc).
-
Page 38: Testing Instantaneous Pickup
Figure 28 - Report Options Screen The user can select to show or hide Comments and/or Deficiencies in the test report. The user may also choose to delete the selected test section or close the test report. Contact Resistance and/or Insulation Resistance test results can also be added to the Test results using the Insulation/Contact Resistance button . - Page 39 This will return you to the test screen. Using either the Control Knob on the STVI, or the PC up and down arrows, manually ramp the output until the relay contacts either picks up or the device trips. Note that the output will turn on for the Pulse On duration time setting each time the control is moved up or down.
-
Page 40: Advanced Pickup And Timing Test
values are not actually saved to file until you press the File Folder icon and save them as previously defined. Figure 30 - Example Timing and Instantaneous Test report Advanced Pickup and Timing Test Pressing the Circuit Breaker Curve Library test button icon will present a selection menu where the user may select either Generic or a specific Manufacturer. -
Page 41: Breaker Manufacturer And Curve Selection
STVI software. Check the Megger website for a possible STVI upgrade download. New STVI upgrades are available from time to time, which may include new time curves families. -
Page 42: Advanced Pickup And Timing Test Screen
PC or STVI to SPI connection button Click on the button and the PC or the STVI will auto detect the SPI unit connected and automatically set the IP address through the Ethernet ports. If the button shows two red Xs it indicates that there is no communication to the SPI. -
Page 43: Clear Results Button
transferred to PowerDB via a USB memory stick. Previous tests results can be loaded and the ‘Retest’ option can be used to repeat the test using the same parameters as the previous test. 3.5.2.4 Clear Results button Press or click on the Clear Results button to Clear Active (last test) or Clear All test results that have been added to the report. -
Page 44: Select Breaker Curve Button
When a breaker or time curve is selected the time curve characteristic will appear in this display window. 3.5.2.14 Select Breaker Curve button Press this button to select a time curve. See 3.5.2 Advanced Pickup and Timing Setup for details. 3.5.2.15 Frame Size, Sensitivity Rating, Band and Pickup windows Click or press the provided windows to enter the frame size, sensitivity rating, Band setting and Pickup %... -
Page 45: Advanced Automated (Manufacturer Specific) Timing Test
3.5.3 Manufacturer Specific Timing Test (Advanced Automated Testing) Tests should be conducted in accordance with the manufacturer’s test specifications. Following the Timing Test setup described in 3.5.2, returning to the Timing Test Screen the user will see something similar to the following figure. Based upon the breaker selected only the appropriate tests will be presented, Long Time, Short Time, Instantaneous, Ground Fault. - Page 46 2. Connect the appropriate SPI output terminals to the breaker under test. 3. Press or click on the Blue play button. The Test Parameters screen will appear. Set the appropriate Max Current, Max Time, and Tap Verification Current. If testing a device with a set of trip contacts, connect the Binary Input terminal to sense the device under test.
-
Page 47: Advanced Manual (Generic) Timing Test
3.5.4 Generic Timing Test - (Advanced Manual Testing) Tests should be conducted in accordance with the manufacturers test specifications. Because this is a Generic test, all four possible tests are available on the tool bar to select from: Long Time, Short Time, Instantaneous, and Ground Fault. - Page 48 trip contacts, connect the Binary Input terminal to sense the device under test. Press the Tmr Stop Cfg button. The default setting is Current Actuate . Select for the appropriate sensing Normally Open, Normally Closed by pressing the contact , or Voltage Applied, or Voltage Removed by pressing the button.
-
Page 49: Warranty Statement
The serial number is 12 digits long. Make sure you enter all 12 digits. There will be two versions of the software. One is for your PC and one is for the STVI. For the STVI unit select the “STVI XX.X Onboard Install”... -
Page 50: Updating Spi225 Firmware
(turn off and back on) the test system. PC and STVI Software: If using the PC version of the STVI software, it is very similar to the STVI. Upon clicking on the Update Firmware button, the familiar Windows Open File browser dialog box will appear. -
Page 51: Service And Repair Instructions
5.3.1.1 Power Input Input voltage affects the whole unit, including the 48 Volts DC to the STVI from the PoE port, and may or may not cause permanent damage if voltage is incorrect. These problems can often be corrected by simply using a better source of input power. -
Page 52: 5.3.1.2 Ethernet Cable
Basic troubleshooting of the Ethernet communication cable as follows, No power - Check power source and line cord. If the SPI powers up, but the STVI display does light up, check the cable and cable connectors. Typical problem is usually a broken conductor or cracked cable connector.
