BEFORE INSTALLATION

• Before and during installation, read and familiarize yourself with all installation instructions for this product.
• Keep all components, parts and accessories of this product away from small children and minors. During installation,
all screws,tools and small parts should be supervised so that they do not fall into the hands of children.
• Use caution at all times when installing this product. Ensure that you are physically able to perform all parts of the
installation and that you have the correct tools and equipment needed.
• Before beginning,remove all wrappers and packinging materials including staples and packing straps.
• Check to ensure that all components and parts are complete.
• The Filter Gasket (#11) must be installed to protect against incoming dirt by pipework. Incoming dirt can impair the function
and/or lead to damages on functional parts of the fixture. Manufacturer will not be held liable for resulting damages.
• The O Ring Gasket (# 6) must be installed to prevent water leakage. Manufacturer will not be responsible or liable from
any damage which results directly or indirectly from failure to installation of the O Ring Gasket.
• This panel does not include a mixing valve, it is intended for use in a shower with an existing mixing valve.

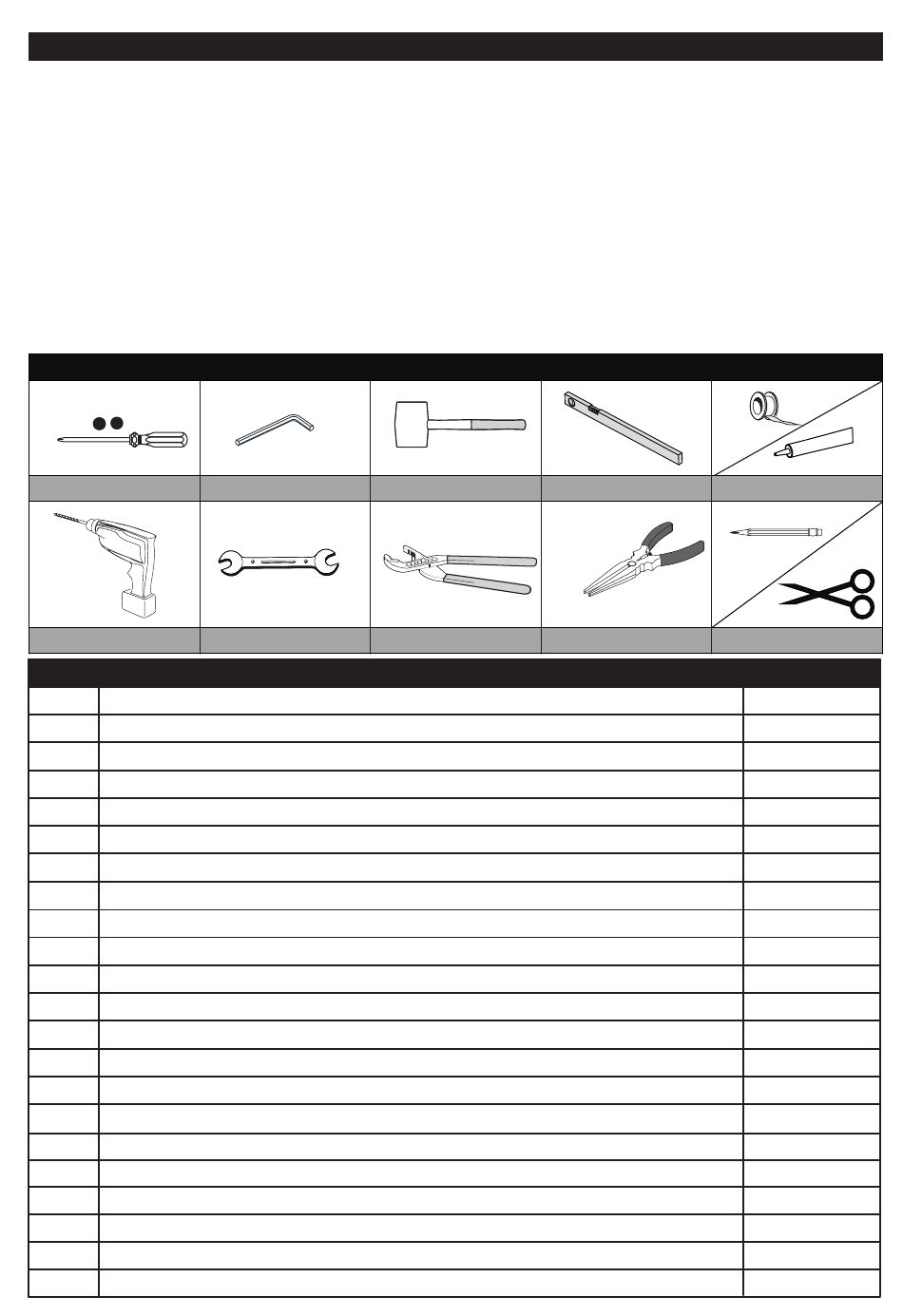

RECOMMENDED TOOLS FOR INSTALLATION

-
+
PH
Screwdriver
Drill Bit 6mm
Electric Drill

PARTS LIST

Description
NO.
1 Shower Panel Casing
Shower Head Outlet Connector Cover
2
Elbow Connector
3
4 Brass Extender Joint (1 7/8"&
Base Plate Cover with Tape (for Shower Head Outlet Connector Cover)
5
O Ring Gasket
6
7 Ring Clamp
Main PVC Supply Line (43"/110cm)
8
Handshower Cradle Assembly
9
10 Full Brass Handshower
Filter Gasket
11
12 Handshower Hose
13 Screws
Positioning and Support Brackets
14
15 Screw Anchor
16 Installation Template Guide
Flow Regulator
17
18 Jet
Diverter Knob
19
Diverter Valve
20
21 Shower Head
2.5 mm
Hexagon-wrench
24 mm /30mm
Wrenches
2 3/4"
Hammer
Pliers
x ½")
- 3 -
Level Sealing Tape/Silicone
Pencil / Shear
Vice
Qty
1 Set
1 Pc
1 Pc
2 Pcs
1 Pc
2 Pcs
1 Pc
1 Pc
1 Set
1 Pc
2 Pcs
1 set
4 Pcs
2 Pcs
4 Pcs
1 pc
1 pc
1 set
1 pc
1 set
1 set
