Valore Effusion Installation And User Manual page 10

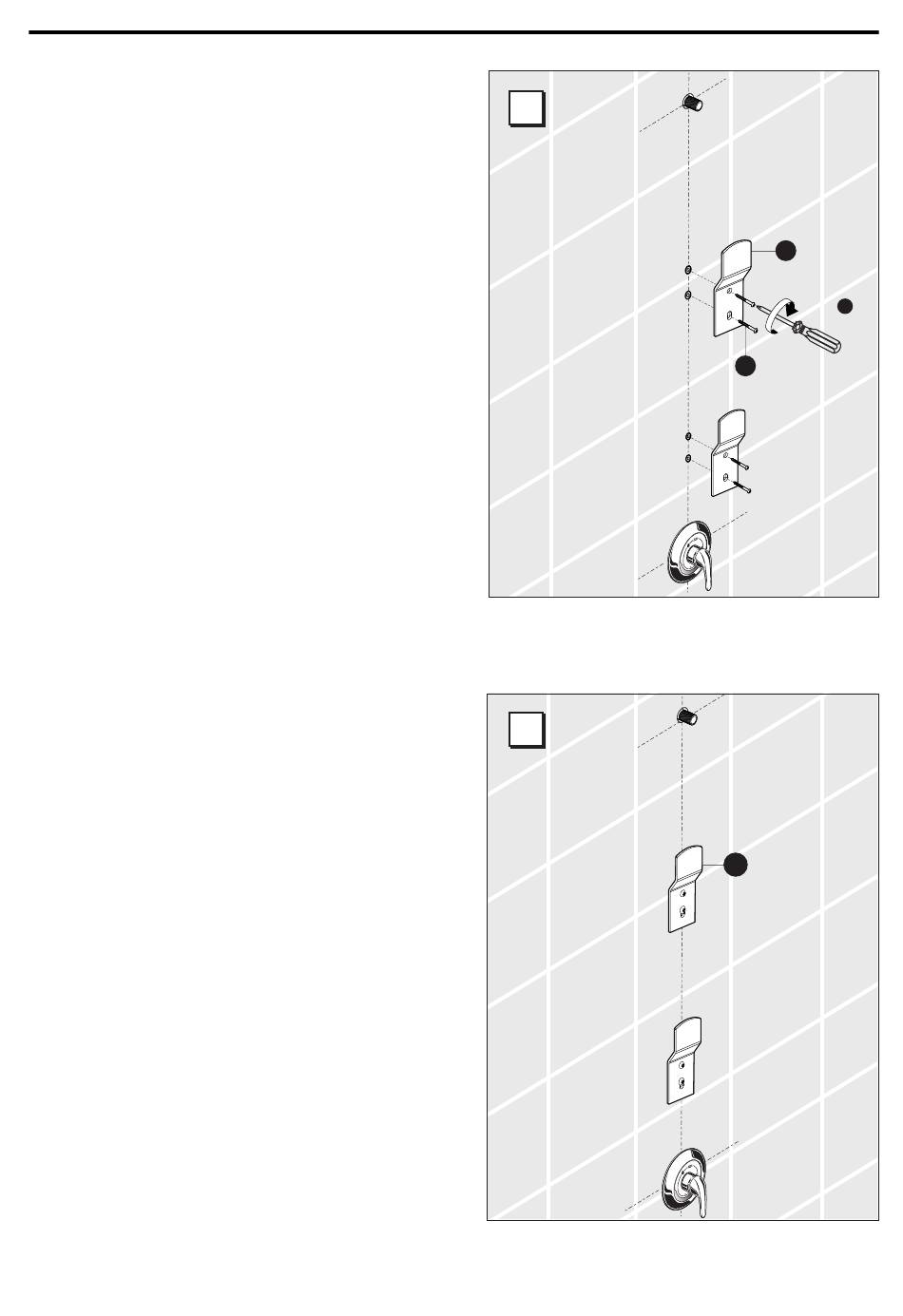

• After anchors has been secured, align the mounting
brackets (Part #14) using the supplied screws
(Part #13).
For the Positioning & Mounting Brackets
(Part #14), make sure that they are installed
with protruding portion facing upward as
shown in the drawing.
INSTALLATION INSTRUCTIONS
- 10 -
11
12
14 x2PCS
+
PH
13 x4PCS
14
