DCD-A100
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0175-1V02DM/DG1011

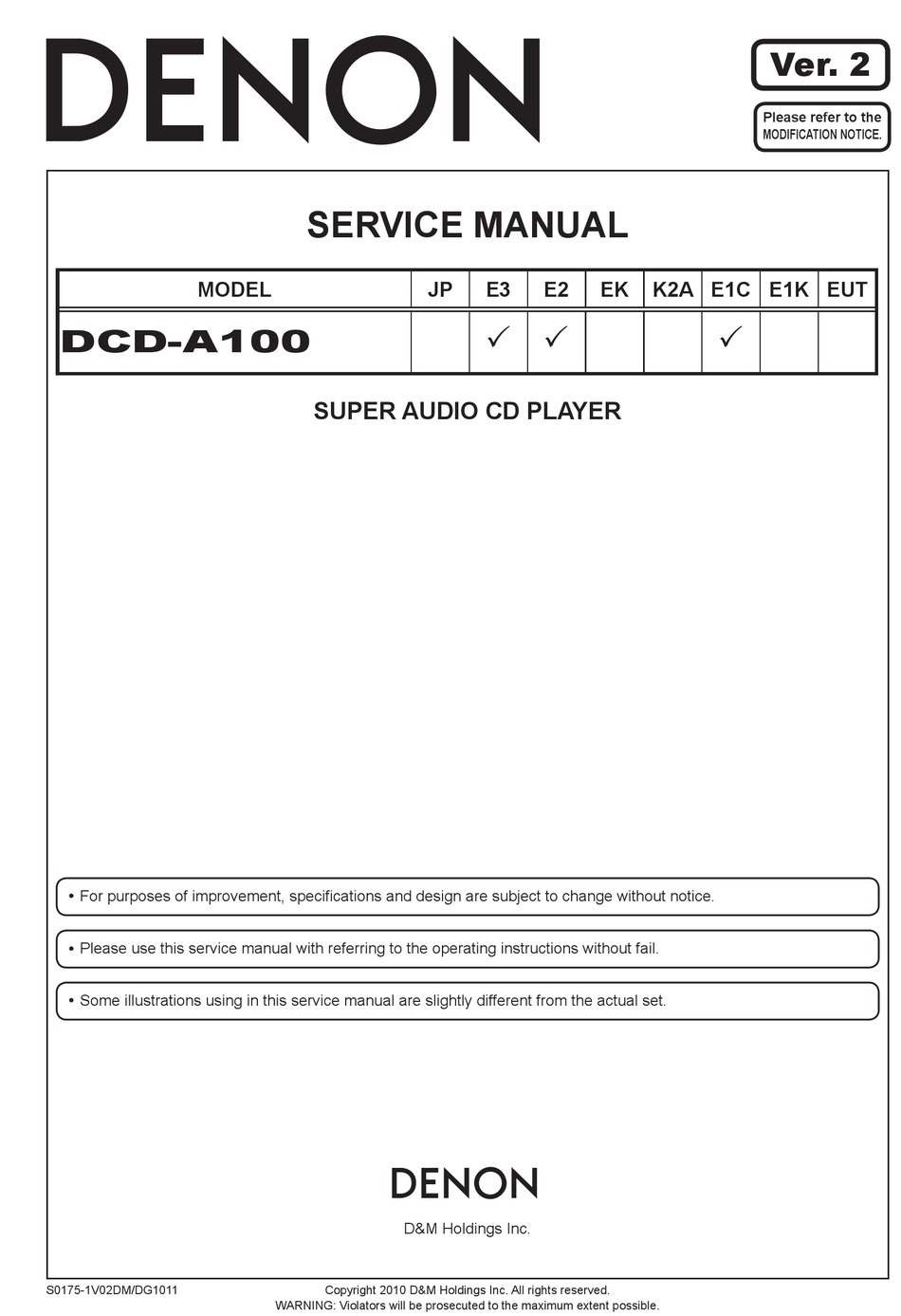

SERVICE MANUAL
MODEL
SUPER AUDIO CD PLAYER
Copyright 2010 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
E2
P P
e
D&M Holdings Inc.
Ver. 2
Please refer to the
MODIFICATION NOTICE.
EK
K2A E1C E1K EUT
P
