WIKA E-10 Operating Instructions Manual

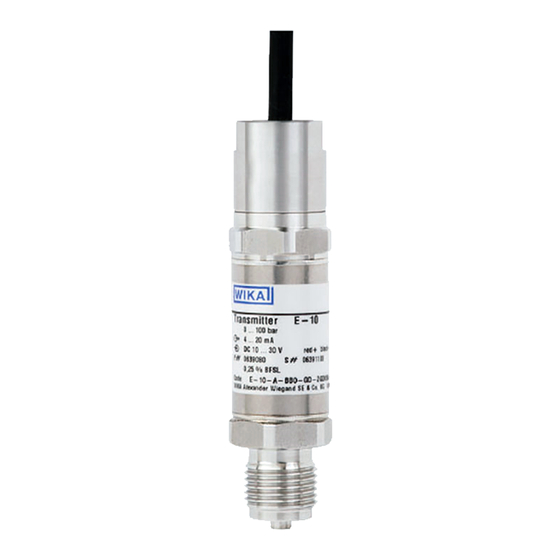

Pressure transmitter
Hide thumbs Also See for E-10:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual
Contents
11. Control Drawing
Current terms and conditions apply.
Details are available on ...
www.wika.com
WIKA Instrument Corporation
1000 Wiegand Boulevard
Lawrenceville, GA 30043
Phone
(770) 513 8200
Fax
(770) 338 5118
www.wika.com
Page
2
3
E-10,
3
E-11
Pressure transmitter
4
4-5
5
5-12
12
12-14
14
15
16
Operating instructions
E-11
E-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WIKA E-10

Summary of Contents for WIKA E-10

  • Page 1: Table Of Contents

    6. Packaging 7. Starting, operation 5-12 8. Maintenance, accessories 9. Trouble shooting 12-14 10. Storage, disposal 11. Control Drawing 12. WIKA Global Current terms and conditions apply. Details are available on ... www.wika.com E-11 E-10 WIKA Instrument Corporation 1000 Wiegand Boulevard...

  • Page 2: Important Details For Your Information

    Every component undergoes strict quality and environmental inspection before assembly and each instrument is fully tested prior to shipment. Use of the product in accordance with the intended use E-10, E-11: Factory Mutual Canadian Standard Use the explosion proof pressure transmitter to transform the pressure into an electrical signal...

  • Page 3: Function

    „ starting the instrument. Warning there be any obvious damage, inform the transport company and WIKA without delay. Observe the relevant national regulations (e.g.: NEC, CEC) and observe the „ Keep the packaging, as it offers optimal protection during transportation (e.g. chan- „...
  • Page 4 „ Make sure the ventilation port remains open to atmospharic pressure. damage to the diaphragm during installation as well (E-11). For Model E-10 you have to provide for a sealing element; exceptions are instruments „ Product label (example) with self-sealing threads (e.g. NPT thread).
  • Page 5 Connect the cable shield or the green wire to ground. black black shield wire / case shield wire / case (green with open wires/ (green with open wires/ flying lead) flying lead) WIKA Operating instructions E-10, E-11 WIKA Operating instructions E-10, E-11...
  • Page 6 Class II, Division 1, Groups E, F and G; Class III, Division 1 „ Case Stainless steel RF immunity Internal transmission fluid Synthetic oil (not for E-10 with pressure ranes > 300 psi) Burst Power supply U in VDC ≤ 30 with signal output 4 ... 20 mA, 2-wire 10 < U...

  • Page 7: Maintenance, Accessories

    „ Have repairs performed by the manufacturer only. Diaphragm is damaged, e.g. through Accessories: For details about the accessories (e. g. connectors), please refer to WIKA‘s impact, abrasive/agressive media; Contact the manufacturer and replace Signal span dropping off/too small price list, WIKA‘s product catalog on CD or or contact our sales department.

  • Page 8: 10. Storage, Disposal 14

    USA, Canada Explosion proof for If the problem continues, contact WIKA or an authorized agent for assistance. If the pres- Class I, Division 1, Groups A, B, C and D sure transmitter must be returned obtain an RMA (return material authorization) number and (Note 6) shipping instructions from the place of purchase.

  • Page 9: Wika Global

    Further WIKA subsidiaries worldwide can be found online at www.wika.de Weitere WIKA Niederlassungen weltweit finden Sie online unter www.wika.de La liste des autres filiales WIKA dans le monde se trouve sur www.wika.de Otras sucursales WIKA en todo el mundo puede encontrar en www.wika.de...

This manual is also suitable for:

E-11
