Ins-40077-US TOUCHLOCK K and KP series - UL
Technical Support
1.800.672.7298
Technical help is available:
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/
Suitability
Security sensitive doors
Wet environments
Mounting

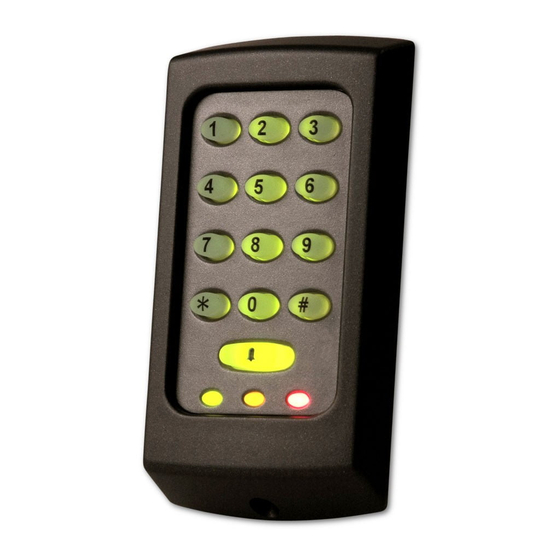

This keypad is designed to provide a Clock and Data output for Paxton (Net2 / Switch2).
The KP series readers will also read Paxton tokens (Hitag2) and EM4100 tokens.
K75 Screw connector option
NOTE: The unit should be mounted
in conjunction with an electrical
backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750-US)
is fitted, the mountings on the
backbox can also be used.
This unit is for Indoor use only
NOTE:
The Stainless Steel version installs and operates in exactly the same manner.
Monday - Friday from 02:00 AM - 8:00 PM (EST)
Illustrations in this instruction show the standard keypad.
supportUS@paxton-access.com
Mounted on metal surface
Readers mounted together
Paxton
K
KP
12 inches
between readers
PAGE 1
Advertisement
Related Manuals for Paxton TOUCHLOCK K Series
Summary of Contents for Paxton TOUCHLOCK K Series
- Page 1 Readers mounted together between readers Mounting This keypad is designed to provide a Clock and Data output for Paxton (Net2 / Switch2). The KP series readers will also read Paxton tokens (Hitag2) and EM4100 tokens. K75 Screw connector option NOTE: The unit should be mounted...
- Page 2 Options Part number Description 351-110-US TOUCHLOCK K50 keypad 371-110-US TOUCHLOCK K75 keypad 371-120-US TOUCHLOCK K75 keypad - screw connection 352-110-US TOUCHLOCK K50 keypad - stainless steel 372-110-US TOUCHLOCK K75 keypad - stainless steel 372-120-US TOUCHLOCK K75 keypad - screw connection - stainless steel 355-110-US TOUCHLOCK KP50 keypad 375-110-US...
- Page 3 Following the completed installation of this equipment, no further maintenance or testing is required. It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is not compromised. FCC Compliance Class B digital devices.
- Page 4 Here is the list of topics about this product that receive the most technical support inquiries. We list them here to help you speed up the installation and trouble shooting process. 1 - Net2 - Bell function. QPressing the bell button on the keypad will result in Relay 2 being energised for 1 second. A bell sounder can be Qcontrolled by wiring one of the bell feeds across COM / NO on the relay.
