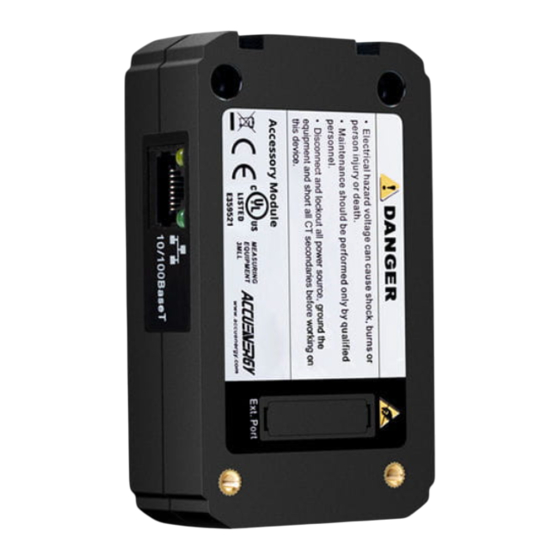

AccuEnergy AXM-WEB Brief Overview

Accessing the AXM-WEB at User level

This document will provide a brief overview of accessing the AXM-WEB at User level. In this

level users will be able to read and view meter information.

To view the web interface of the AXM-WEB, an Ethernet connection is needed.



Open an internet browser and type in the IP address of the meter in the browser search bar

and hit the Enter key. The meter's web login page will display as followed:



Upon successfully logging in you will be redirected to the Dashboard where a brief report of

data from the meter will display. The Dashboard will also display how long the AXM-WEB has

been up and communicating.

Figure 1

Table of Contents

Do you have a question about the AXM-WEB and is the answer not in the manual?

Page 1 Accessing the AXM-WEB at User level This document will provide a brief overview of accessing the AXM-WEB at User level. In this level users will be able to read and view meter information. To view the web interface of the AXM-WEB, an Ethernet connection is needed.
Page 2 Figure 2 To view more data click on 'Metering'. This will display a list of parameters that can be viewed from the AXM-WEB. Click on the sub-section that corresponds to the data you would like to view: Basic Metering: This page will show the real-time readings such as voltage, current , power and etc.
Page 3 It will also provide the serial number, firmware version, hardware version and MAC address of the AXM-WEB module. Alarm Status: This page will display the alarm log of the meter. It will provide the status of up to 16 alarm events indicating the parameter, value and timestamp of the alarm event.
