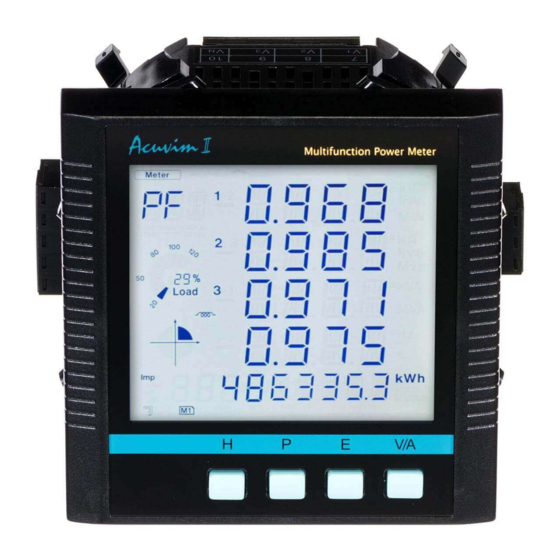

Acuvim II Series Power Meter
SNMP Protocol
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Acuvim II Series and is the answer not in the manual?

Questions and answers

Related Manuals for AccuEnergy Acuvim II Series

Summary of Contents for AccuEnergy Acuvim II Series

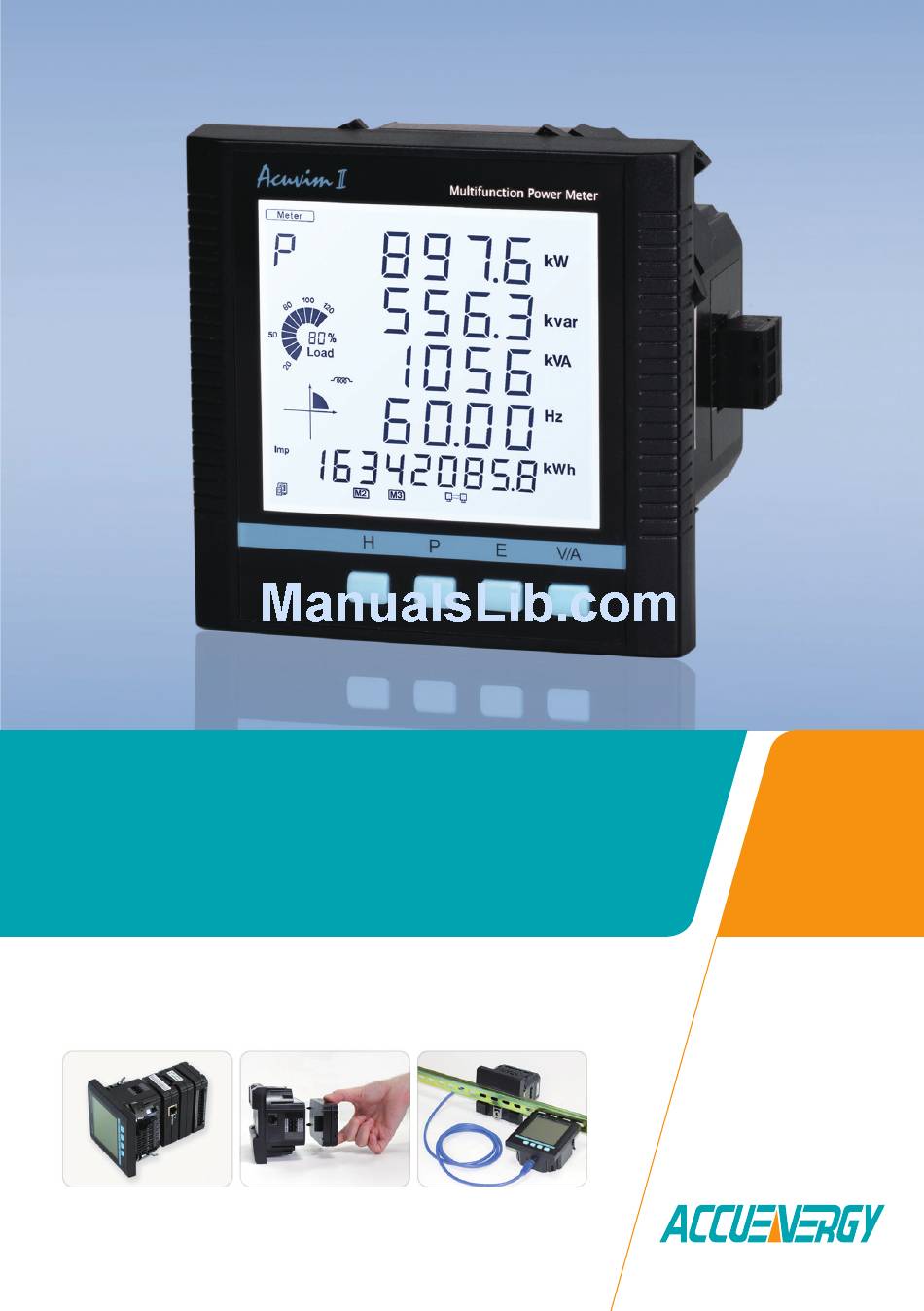

  • Page 1 Acuvim II Series Power Meter SNMP Protocol User's Manual...
  • Page 2 Copyright © 2018 V2.00 This manual may not be altered or reproduced in whole or in part by any means without the expressed written consent of Accuenergy.
  • Page 3 The information contained in this document is believed to be accurate at the time of publica- tion, however, Accuenergy assumes no responsibility for any errors which may appear here and reserves the right to make changes without notice. Please ask the local representative for latest product specifications before ordering.

  • Page 4: Table Of Contents

    ………………………………………………………………………5 5.2 Initializing the AXM-WEB-PUSH………………………………………………………… 6 Chapter 5: Supported Parameters ………………………………………12 Chapter 6: SNMP Configurations through the Web Server ……… 6.1 Configuring the SNMP settings …………………………………………………18 6.2 Acuvim II Series Management Information Base(MIB) ……………………20 V: 2.0 Revised: June 2018 www.accuenergy.com...

  • Page 5: Chapter 1: Overview

    PUSH also supports SNMP Traps which will allow the meter to send alerts when there is a change in event. The Acuvim II Series Power Meter allows the user to obtain data of the meters' Real Time, Energy, Demand, THD, Harmonics and IO measurements. It also tracks the status of the 28 Digital Input channels that are available.
  • Page 6 Acuvim II Series - SNMP Protocol The MIB file can be be downloaded from the Accuenergy Website which can then be loaded into the management software: https://accuenergy.com/files/acuvim-ii/ACUVIMII-MIB.mib.zip This MIB file contains the information that the manager needs to communicate with the AXM-WEB-PUSH.

  • Page 7: Chapter 4: Using The Snmp Protocol On The Axm-Web-Push

    Note: • Install the AXM-WEB-PUSH carefully to avoid damage; • Under no circumstances should any installation be done with the meter powered on. Fail- ure to do so may result in injury or death. V: 2.0 Revised: June 2018 www.accuenergy.com...

  • Page 8: Initializing The Axm-Web-Push

    • Press the 'H' and 'V/A' buttons simultaneously on the Acuvim II series. Release the buttons and the meter will enter the meter selecting mode, as indicated by the fl ashing 'Meter' cur- sor.
  • Page 9 Press 'V/A' button to confi rm password and enter the parameter setting page. Press the 'P' or 'E' button to move the cursor to 'NET' and press the 'V/A' button to enter the Ethernet module settings. V: 2.0 Revised: June 2018 www.accuenergy.com...
  • Page 10 Acuvim II Series - SNMP Protocol • The fi rst page of the NET Settings will be the N01 DHCP setting. By default this is confi gured to Manual. Setting this confi guration to Auto will allow the router to assign the meter with an IP address, whiles Manual will allow the user to confi gure the IP address.
  • Page 11 Press the 'H' button to scroll through the digits, press the 'P' or 'E' to change the value of the flashing cursor and press 'V/A' to confirm. V: 2.0 Revised: June 2018 www.accuenergy.com...
  • Page 12 Acuvim II Series - SNMP Protocol • Press 'P' to get to "N05 DNS Primary Server". Press 'V/A' to configure the DNS address. The cursor of the first digit will begin to flash. Press the 'H' button to scroll through the digits, press the 'P' or 'E' to change the value of the flashing cursor and press 'V/A' to confirm.
  • Page 13 After configuring the AXM-WEB-PUSH module, press the 'H' and 'V/A' buttons simultaneously to return to the menu selection. The meter should then be accessible at the IP Address found on page N02 of the NET settings. V: 2.0 Revised: June 2018 www.accuenergy.com...

  • Page 14: Chapter 5: Supported Parameters

    28 Digital Input channels that are available and can send notifications based on these 28 DI channels. These parameters are defined in the MIB file for the Acuvim II series. The data returned through SNMP will require a relationship to be applied in order to obtain the actual measurements.
  • Page 15 Phase B Odd Voltage THD 32 Bit Integer Rx/1000 Phase B Even Voltage THD 32 Bit Integer Rx/1000 Phase B Voltage Crest Factor 32 Bit Integer Rx/1000 Phase B THFF 32 Bit Integer Rx/1000 V: 2.0 Revised: June 2018 www.accuenergy.com...
  • Page 16 Acuvim II Series - SNMP Protocol THD Parameter Data Type Relationship Units Property Phase C Odd Voltage 32 Bit Integer Rx/1000 Phase C Even Voltage 32 Bit Integer Rx/1000 Phase C Voltage Crest Factor 32 Bit Integer Rx/1000 Phase C THFF...
  • Page 17 IO22 DI Counter 3 32 Bit Integer IO22 DI Counter 4 32 Bit Integer IO32 DI Counter 1 32 Bit Integer IO32 DI Counter 2 32 Bit Integer IO32 DI Counter 3 32 Bit Integer V: 2.0 Revised: June 2018 www.accuenergy.com...
  • Page 18 Acuvim II Series - SNMP Protocol IO Parameters Data Type Relationship Units Property Trap Supported IO32 DI Counter 4 32 Bit Integer IO11 DI Status 1 32 Bit Integer IO11 DI Status 2 32 Bit Integer IO11 DI Status 3...
  • Page 19 IO11 RO2 32 Bit Integer IO31 RO1 32 Bit Integer IO31 RO2 32 Bit Integer IO12 RO1 32 Bit Integer IO12 RO2 32 Bit Integer IO32 RO1 32 Bit Integer IO32 RO2 32 Bit Integer V: 2.0 Revised: June 2018 www.accuenergy.com...

  • Page 20: Chapter 6: Snmp Configurations Through The Web Server

    Acuvim II Series - SNMP Protocol 6. SNMP Confi gurations through the Web Server 6.1 Confi guring the SNMP Settings To confi gure the SNMP related settings on the AXM-WEB-PUSH, user must use the built in web server. Ensure the network settings related to the AXM-WEB-PUSH are confi gured cor- rectly so it can be accessed within the Local Area Network.
  • Page 21 If another string is used, the SNMP client should have the same value. SNMP Port: Enter the port number that the data will be received on. The default port is 161. The range of ports supported are 16100-16199. V: 2.0 Revised: June 2018 www.accuenergy.com...

  • Page 22: Acuvim Ii Series Management Information Base(Mib)

    Click 'Save' and select "Reboot Now" after making any changes to allow the confi gurations to take eff ect. 6.2 Acuvim II Series Management Information Base(MIB) The MIB fi le for the Acuvim II series meter can be downloaded from the following URL: https://accuenergy.com/fi les/acuvim-ii/ACUVIMII-MIB.mib.zip V: 2.0 Revised: June 2018...
  • Page 23 MAKE ENERGY USAGE SMARTER ACCUENERGY (CANADA) INC. TF: 1-877-721-8908 INT: +1-416-497-4100 2 Lansing Square, Suite 700 FAX: +1-416-497-4130 Toronto, ON M2J 4P8, Canada E: marketing@accuenergy.com...
