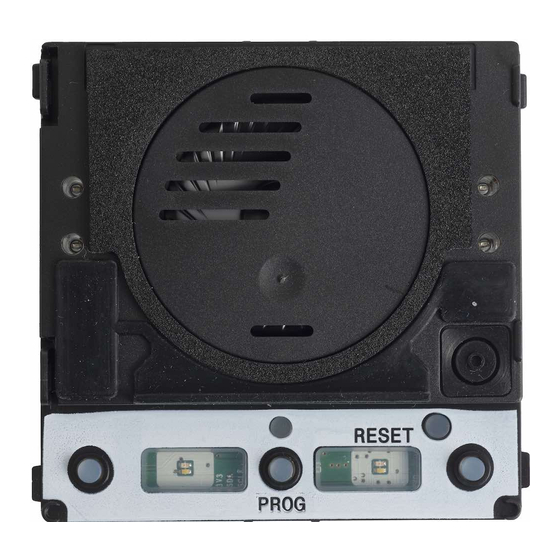

- Page 1 FB00329-EN PROGRAMMING MANUAL MTMA/01 MTMV/01...
- Page 2 General precautions Read the instructions carefully before beginning the installation and carry out the actions as specified by the manufacturer. • The installation, programming, commissioning and maintenance of the product must only be carried out by qualified technicians, • properly trained in compliance with the regulations in force, including health and safety measures and the disposal of packaging. Before carrying out any cleaning or maintenance operation, disconnect the device from the power supply.
- Page 3 PROGRAMMING ENTRY PANELS WITHOUT VA/01 OR A/01 Programming for the first time Entering programming mode Press the PROG button on the entry panel for at least 3 seconds A and release within 6 seconds. The LEDs and the button LEDs flash to show the buttons are being pro- >3’’...
- Page 4 Programming the entry panel video camera While programming calls, the “visual range” of the video camera can be adjusted from any receiver. To do this, lift the handset (where present) and press the “self-connection” button I. From the default configuration, scroll through the subsequent configurations J pressing the AUX1 button, or go back to the previous configurations by pressing the AUX2 button K.
- Page 5 To enable the intercommunicating function, press the intercommunicating call button you want to call on the internal receiver you want to program E. A beep indicates that the function has been programmed successfully. Repeat for all internal receivers to be in- cluded in the intercommunicating group.
- Page 6 Programming calls The green LED flashes. Lift the internal receiver handset (if present) and press the door lock release and AUX2 but- tons F. On the entry panel, press the call button to be linked to the internal receiver G a. A beep confirms that the setting has been stored G b.
- Page 7 Adjusting the brightness level of the light on the entry panel While programming calls M a the brightness level of the entry panel can be adjusted ” button on the internal receiver M b from any receiver. Pressing the “self-connection activates the video camera on the entry panel for which the brightness level is to be adjust- ed.
- Page 8 Came S.p.A. Via Martiri Della Libertà, 15 Via Cornia, 1/b - 1/c 31030 Dosson di Casier 33079 Sesto al Reghena Treviso - Italy Pordenone - Italy (+39) 0422 4940 (+39) 0434 698111 (+39) 0422 4941 (+39) 0434 698434 www.came.com...
