EFI IQ-501 How To Use Manual

Intelligent quality optimizer
Hide thumbs

Advertisement

Quick Links

Fiery FS200/FS200 Pro
How-to:
Use the IQ-501 Intelligent Quality
Optimizer with the Fiery server
Konica Minolta
IC-315, IC-313 and IC-417 for the AccurioPress
®
®
C6100/6085 and C2070/C2070P
IQ-501
Revised 10/19/2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the IQ-501 and is the answer not in the manual?

Questions and answers

Related Manuals for EFI IQ-501

Summary of Contents for EFI IQ-501

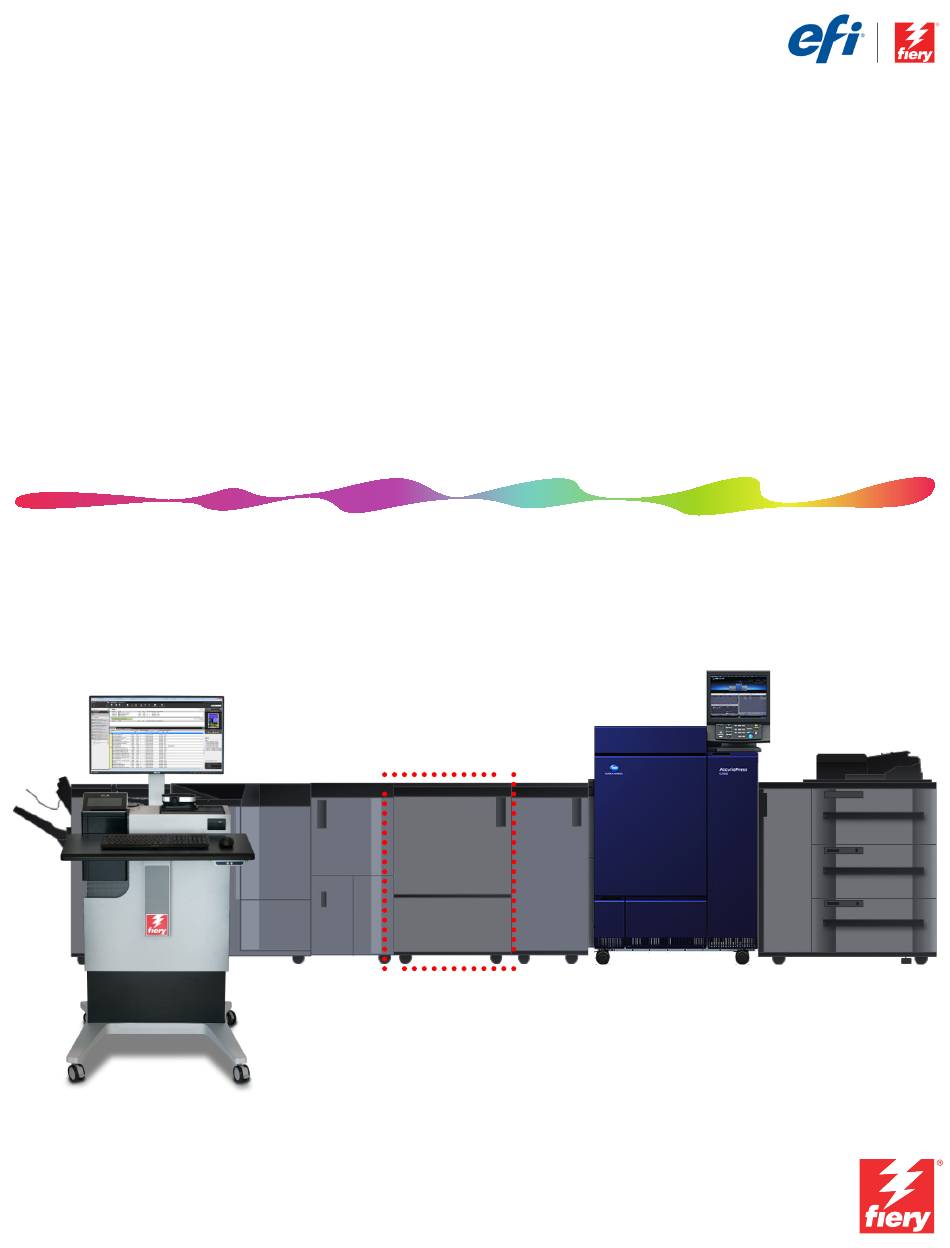

  • Page 1 Fiery FS200/FS200 Pro How-to: Use the IQ-501 Intelligent Quality Optimizer with the Fiery server Konica Minolta IC-315, IC-313 and IC-417 for the AccurioPress ® ® C6100/6085 and C2070/C2070P IQ-501 Revised 10/19/2017...
  • Page 2 Fiery server calibration, color profiling and other color management tools. This guide will show you how to engage and effectively use the IQ-501 from the IC-315, IC-313, and IC- 417 Fiery servers and the Fiery application on the AccurioPress C6100/6085, 2070/2070P.

  • Page 3: Table Of Contents

    Although the IQ-501 is not supported with the following features, if a supported spectrophotometer is purchased, in addition to the IQ-501, the features below that require measurement are fully supported. If the full capability of the Fiery server is desired, the EFI ES-2000 is recommended in order to capture spot colors using the Spot-On feature of Command WorkStation.

  • Page 4: Auto Image Adjustment

    How-To: Using the IQ-501 with the Fiery server Auto Image Adjustment 1. Open Job Properties of the job in which you wish to engage Auto Image Adjustment. 2. Select the Image tab. Note that on some software versions the Auto...

  • Page 5: Fiery Calibration From The Press Control Panel

    How-To: Using the IQ-501 with the Fiery server Fiery Calibration from the Press Control Panel If the main screen is not showing on the press control panel, press the Utility Counter on the keypad then press Exit. 1. Select Controller from the Press Control Panel.
  • Page 6 How-To: Using the IQ-501 with the Fiery server 4. Press Calibrate. 5. You may be prompted to log onto the Fiery server. The default Administrator Password is “Fiery.1”. 6. Select the tray with the desired media from the pull-down menu.
  • Page 7 How-To: Using the IQ-501 with the Fiery server The calibration page prints and is scanned by the IQ-501. When completed the Calibration successful message is displayed. 8. Press Continue. 9. Press Apply to complete the calibration process. OPTIONAL: Press Test Print if desired.

  • Page 8: Fiery Calibration From Fiery Color Profiler Suite (Fcps)

    How-To: Using the IQ-501 with the Fiery server Fiery Calibration from Fiery Color Profiler Suite (FCPS) 1. Start Fiery Color Profiler Suite. If you have not purchased and installed a license for FCPS you will need to run FCPS in Demo mode for Fiery Calibration as follows.
  • Page 9 How-To: Using the IQ-501 with the Fiery server 6. Select the Calibration name that you wish to recalibrate. 7. Click Next. 8. Select IQ-501 from the Instrument pull-down. 9. Select an appropriate size from the Chart size pull-down. Ensure that it matches the media selection (next step).
  • Page 10 How-To: Using the IQ-501 with the Fiery server 11. The Fiery Measure job properties window opens. 12. Select the Media tab. 13. Select the media attributes that are defined by the calibration name, ensuring that the media size matches the chart size (previous step).

  • Page 11: Printer Profiling Using The Printer Module Of Fcps Including G7 Calibration

    How-To: Using the IQ-501 with the Fiery server Printer Profiling using the Printer module of FCPS including G7 calibration You must have purchased and installed a license for FCPS to use this feature. 1. Start Fiery Color Profiler Suite (FCPS).
  • Page 12 How-To: Using the IQ-501 with the Fiery server 8. Select Create new calibration setting. 9. Optionally you may check G7 gray balance calibration target. If you choose the G7 gray balance calibration target the system will prompt you through additional steps to print and have the IQ-501 scan G7 P2P targets.
  • Page 13 How-To: Using the IQ-501 with the Fiery server 10. Select IQ-501 from the Instrument pull-down. 11. Select an appropriate size from the Chart size pull-down. Ensure that it matches the media selection (next step). .Optionally select warmup pages. 12. Click Print.
  • Page 14 How-To: Using the IQ-501 with the Fiery server We continue with printing and measuring the profile patch pages. 17. Select IQ-501 from the Instrument pull-down. 18. Select an appropriate number of patches from the Patch set pull-down. Since this will be read automatically select an appropriate number of patches for the desired precision.
  • Page 15 How-To: Using the IQ-501 with the Fiery server The measurements summary is displayed. 22. Review the Maximum and Average measured variation for anomalies. Take appropriate action as needed, based on your precision requirements. Engine service may be necessary if you determine that the DeltaE (dE) values are too high.
  • Page 16 How-To: Using the IQ-501 with the Fiery server The Apply settings window is displayed. 25. Make any changes as needed. Defaults are usually a good choice unless advanced features are needed. Maximum GCR will deliver more neutral rendering if desired.
  • Page 17 How-To: Using the IQ-501 with the Fiery server The new profile is automatically installed as an output profile on the Fiery server. A Virtual Printer (or Workflow) is automatically setup under Device Center>Workflows>Virtual Printers. The new profile is automatically applied to all jobs using this workflow.

  • Page 18: Printer Match (Common Calibration) Using The Printer Match Module Of Fcps

    How-To: Using the IQ-501 with the Fiery server Printer Match (common calibration) using the Printer Match module of FCPS You must have purchased and installed a license for FCPS to use this feature. 1. Start Fiery Color Profiler Suite (FCPS).
  • Page 19 How-To: Using the IQ-501 with the Fiery server 5. Enter a Measurement name. This name will be your suggested profile name. 6. Select up to five printers to be matched. Click the “+” to discover and add the Fiery servers.
  • Page 20 How-To: Using the IQ-501 with the Fiery server 8. Select IQ-501 from the Instrument pull-down. 9. Select an appropriate size from the Chart size pull-down. Ensure that it matches the media selection (next step). . Optionally select warmup pages. 10. Click Print.
  • Page 21 How-To: Using the IQ-501 with the Fiery server 15. The Calibration measurement results are shown. Ensure that the D Max values displayed are within the expected tolerance for the engine and media selected. Reprint or take appropriate service steps if not.
  • Page 22 How-To: Using the IQ-501 with the Fiery server This window will display after all servers in the list have been calibrated. 21. The Calibration measurement results for both servers are shown. Ensure that the D Max values displayed are within the expected tolerance for the engines and media selected.
  • Page 23 How-To: Using the IQ-501 with the Fiery server The results of the Fiery measure module for the first server are automatically displayed. 27. Click Next to continue. The measurements summary for the first server is displayed. 28. Review the dE average and dE maximum for anomalies.
  • Page 24 How-To: Using the IQ-501 with the Fiery server The results of the Fiery measure module for the second server are automatically displayed. 31. Click Next to continue. The measurements summary for both servers is displayed. 32. Review the dE average and dE maximum for anomalies.
  • Page 25 How-To: Using the IQ-501 with the Fiery server The Apply settings window is displayed. 35. Click on the Settings pull-down and select Import Settings... 36. Navigate to one of the Fiery servers that you are matching and choose a base profile that closely resembles the media that you are using.
  • Page 26 How-To: Using the IQ-501 with the Fiery server 39. Fill out Comments and Media as required. Rename the final profile description if desired. 40. Click Next to process and install the Print Matcher profiles and calibration sets on each server.

  • Page 27: Fiery Color Verifier With Three Reference Preset Choices

    You must have purchased and installed a license for FCPS to use this feature. The first time you use Fiery Color Verifier with the IQ-501 you will need to set the preferences as follows. 1. Start Fiery Color Profiler Suite (FCPS).
  • Page 28 How-To: Using the IQ-501 with the Fiery server Once the Presets have been adjusted. 8. Click on the Verify icon. 9. Select one of the three reference presets available when the IQ-501 has been preselected. • Fogra 2.2 media wedge.
  • Page 29 How-To: Using the IQ-501 with the Fiery server 13. The Fiery Measure job properties window opens. 14. Select the Media tab. 15. Select the media attributes for the media you wish to use. 16. Click OK to print and measure the selected control strip.

  • Page 30: Activating Fiery Color Profiler Suite With The Iq-501

    How-To: Using the IQ-501 with the Fiery server Activating Fiery Color Profiler Suite with the IQ-501 Part 1: Retrieving the engine serial number: Fiery Color Profiler Suite (FCPS) uses an instrument serial number as the “dongle” to activate the software. To easily retrieve the engine serial number follow these steps.
  • Page 31 Part 2: Activating the License Activation Code (LAC) with the engine serial number: 8. Click on Download License, read and acknowledge the pop-up message. 9. You are directed to the EFI fulfillment site for FCPS: https://activation.efi.com/fulfillment/cps/ 10. Enter the license activation code (LAC) that you purchased.
  • Page 32 How-To: Using the IQ-501 with the Fiery server 12. Click Next>. 13. Enter the engine serial number that you wrote down earlier (Step 7, Page 30) in the EFI Spectrophotometer field. 14. Click Next.
  • Page 33 How-To: Using the IQ-501 with the Fiery server 15. Click Generate License. 16. Click Save to file. Please follow instructions to save the .lic file that appear (depending on your browser).
  • Page 34 The .lic file on your desktop will be used to activate your copy of FCPS with the IQ-501. 19. You are now ready to use the IQ-501 with Fiery Color Profiler Suite! Note that FCPS is now licensed using the engine...
  • Page 35 The APPS logo, AutoCal, Auto-Count, Balance, Best, the Best logo, BESTColor, BioVu, BioWare, ColorPASS, Colorproof, ColorWise, Command WorkStation, CopyNet, Cretachrom, Cretaprint, the Cretaprint logo, Cretaprinter, Cretaroller, DockNet, Digital StoreFront, DocBuilder, DocBuilder Pro, DocStream, DSFdesign Studio, Dynamic Wedge, EDOX, EFI, the EFI logo, Electronics For Imaging, Entrac, EPCount, EPPhoto,...
