Dwyer Instruments DCG Series Installation And Operating Instructions

The Dwyer Series DCG Digital Calibration Gage features a
remarkable 0.05% full-scale accuracy that includes the effects of
linearity, hysteresis, repeatability, and temperature across the
entire compensated temperature range. This gage was specifical-
ly designed to be a portable test gage where its unmatched accu-
racy is required. This is a highly durable gage that is housed in a
rugged and compact 3 inch stainless steel case.
This highly accurate test gage offers menu configurable and pass-
word protected features that include engineering unit conversion,
seven selectable languages, field calibration capabilities, as well as
an adjustable bar graph and update/dampening rates.
INSTALLATION
When installing the gage use a 7/16˝ wrench on the wrench flat of
the gage to tighten the gage to the process. DO NOT tighten the
connection by applying torque to the gage body which could
cause permanent damage and render the gage inoperable. It is
good practice to apply Teflon
threads.
Teflon is a registered trademark of E.I. du Pont de Nemours and Company
®
DWYER INSTRUMENTS, INC.
P.O. Box 373 • Michigan City, IN 46361 U.S.A.

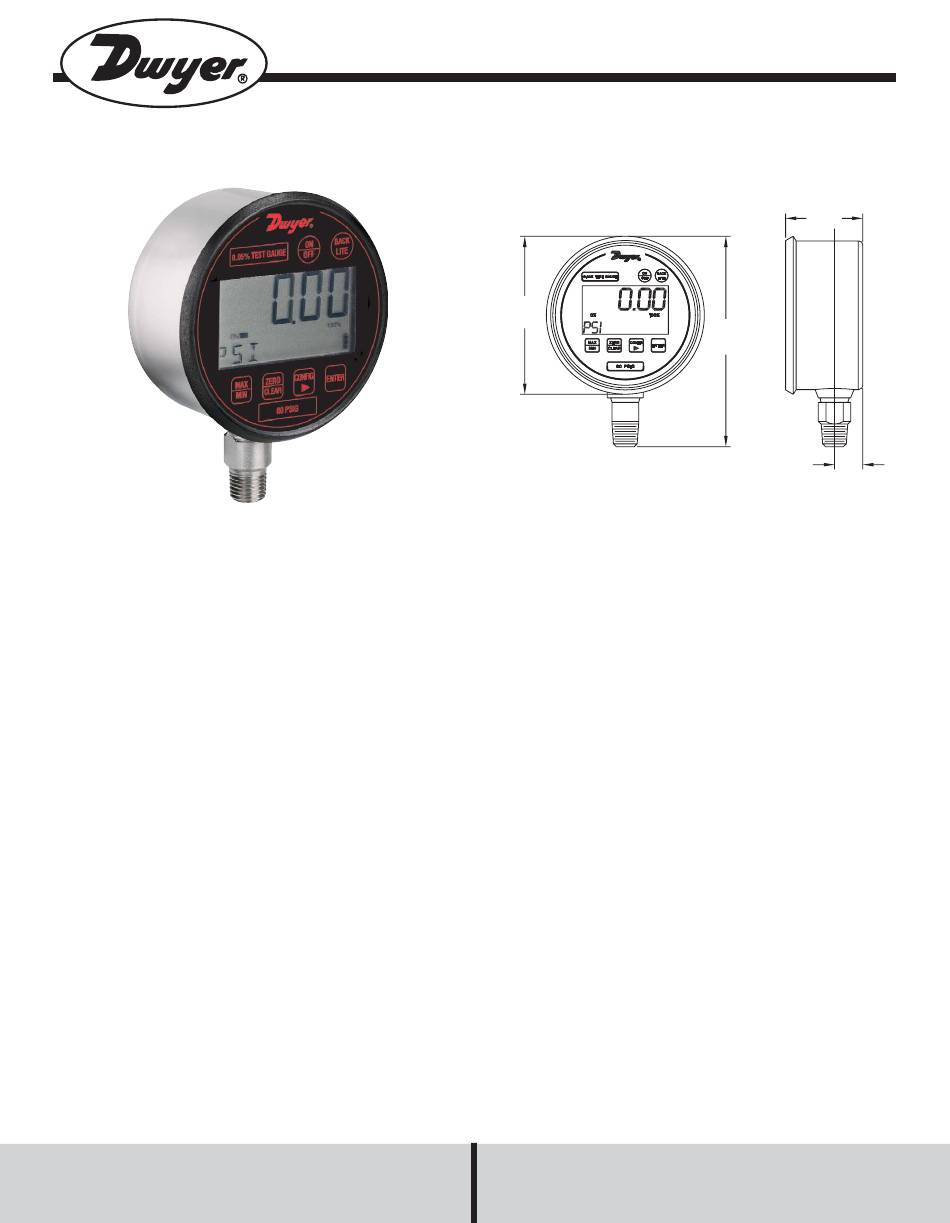

Series DCG Digital Calibration Gage
Specifications - Installation and Operating Instructions
® tape or pipe sealant to the gage
Ø3-11/32
[Ø85]
SPECIFICATIONS
Service: Compatible, non-combustible liquids & gases.
Wetted Materials: 316 SS.
Housing Materials: 300 Series SS.
Accuracy: 0.05% F.S. including linearity, hysteresis, repeatability,
and thermal effects across entire compensated temperature
range.
Pressure Limit: 2 x F.S. range.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Compensated Temperature Range: 0 to 150°F (-18 to 66°C).
Size: 3.00˝ OD x 1.70˝ Deep.
Process Connection: 1/4˝ male NPT.
Enclosure Rating: NEMA 4 (IP65).
Display: 4-1/2 digit (0.66˝ high); 19999 counts.
Power Requirements: Three AAA batteries.
Battery Life: >1000 hours.
Auto Shut-off: Gage: On/off, 2 min., 5 min., 15 min., 30 min.;
Backlight: On/off, 10 sec., 30 sec., 1 min., 5 min.
Agency Approvals: CE.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin A-34-DCG
1-11/16
[43]
4-11/32
[110]
5/8
[15.5]
