INSTALL WHEEL KIT

To install wheel kit you need the following tools:
• 15/16" (22mm) box, open end, or socket wrench
• Two 13mm box, open end, or socket wrenches
Install Wheel Kit as follows: (Refer to Figure 1)

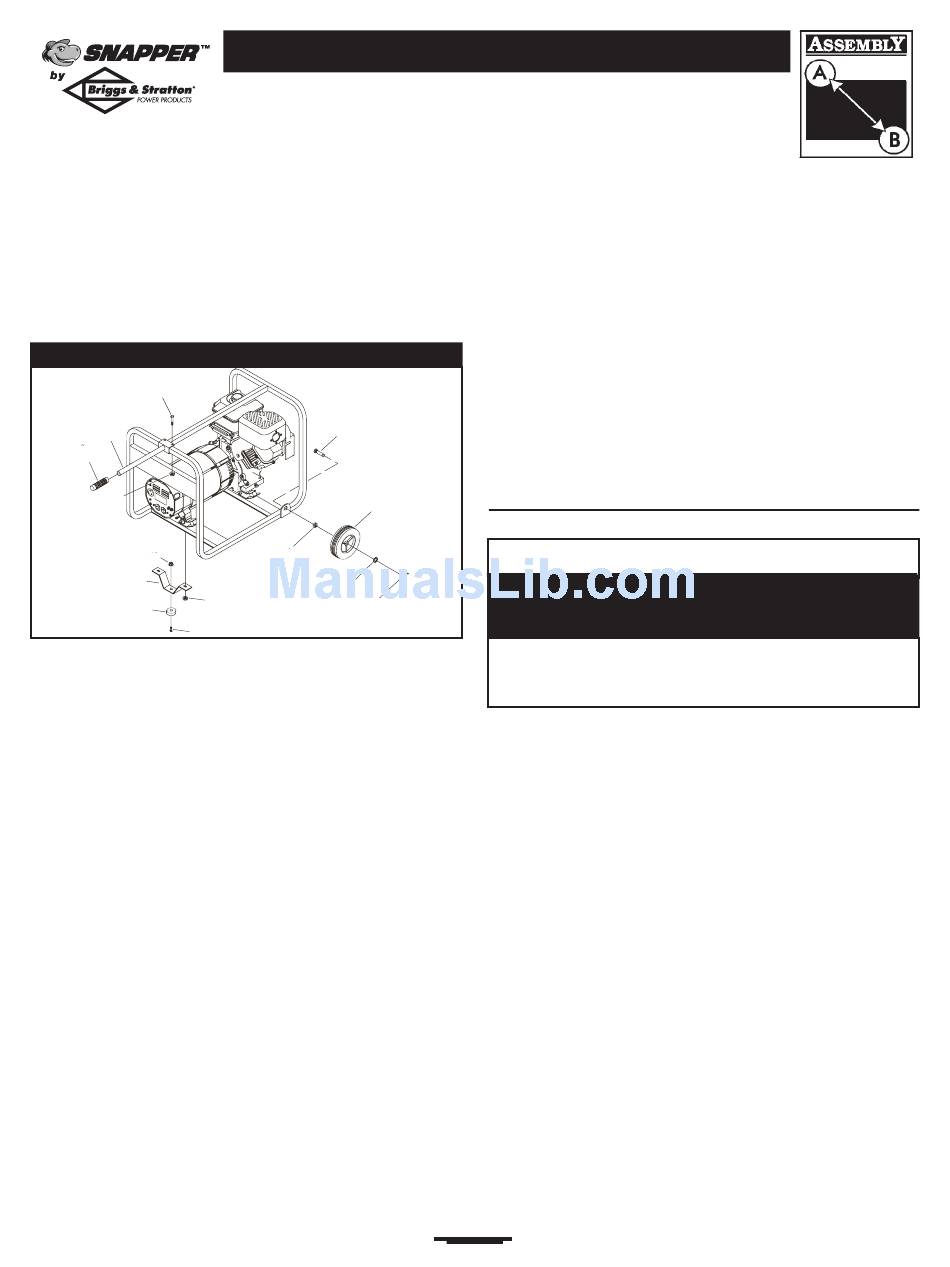

Figure 1 — Installing the Wheel Kit
Capscrew
Handle
Grip
Nut
Nut
Mounting Leg Use Existing
Fasteners to
Secure Leg
Vibration Mount
Capscrew
1. Place bottom of generator cradle on a flat surface.
2. Place axle stud through wheel retainer on cradle
frame.
3. Use 15/16" wrench to secure the axle stud to frame
with 5/8-18 jam nut.
4. Install the other axle stud in the same manner.
NOTE: Be sure to install wheel with raised hub inboard.
5. Tip unit and install the wheel. Place flat washer over
axle stud.
6. Retain wheel on axle stud with retaining pin. Install
other wheel on remaining axle shaft the same way.
Snapper 3250 Watt Generator
Axle Stud
Wheel
Jam Nut
Washer
Retaining Pin
7. Attach the vibration mount to the mounting leg with a
capscrew and lock nut.
8. Remove two front nuts from vibration mount on unit
with 13mm wrench. Use these nuts to retain the
mounting leg.
9. Center the lifting handle on generator end of cradle.
Attach the handle using two 13mm wrenches with two
capscrews and two hex nuts.
BEFORE STARTING THE
ENGINE
Add Engine Oil and Fuel
• Place generator on a level surface.
CAUTION
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
• Refer to engine manual for oil and fuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
• Refer to engine owner's manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine owner's manual for recommendations.
NOTE: The generator assembly rotates on a prelubricated
and sealed ball bearing that requires no additional
lubrication for the life of the bearing.
