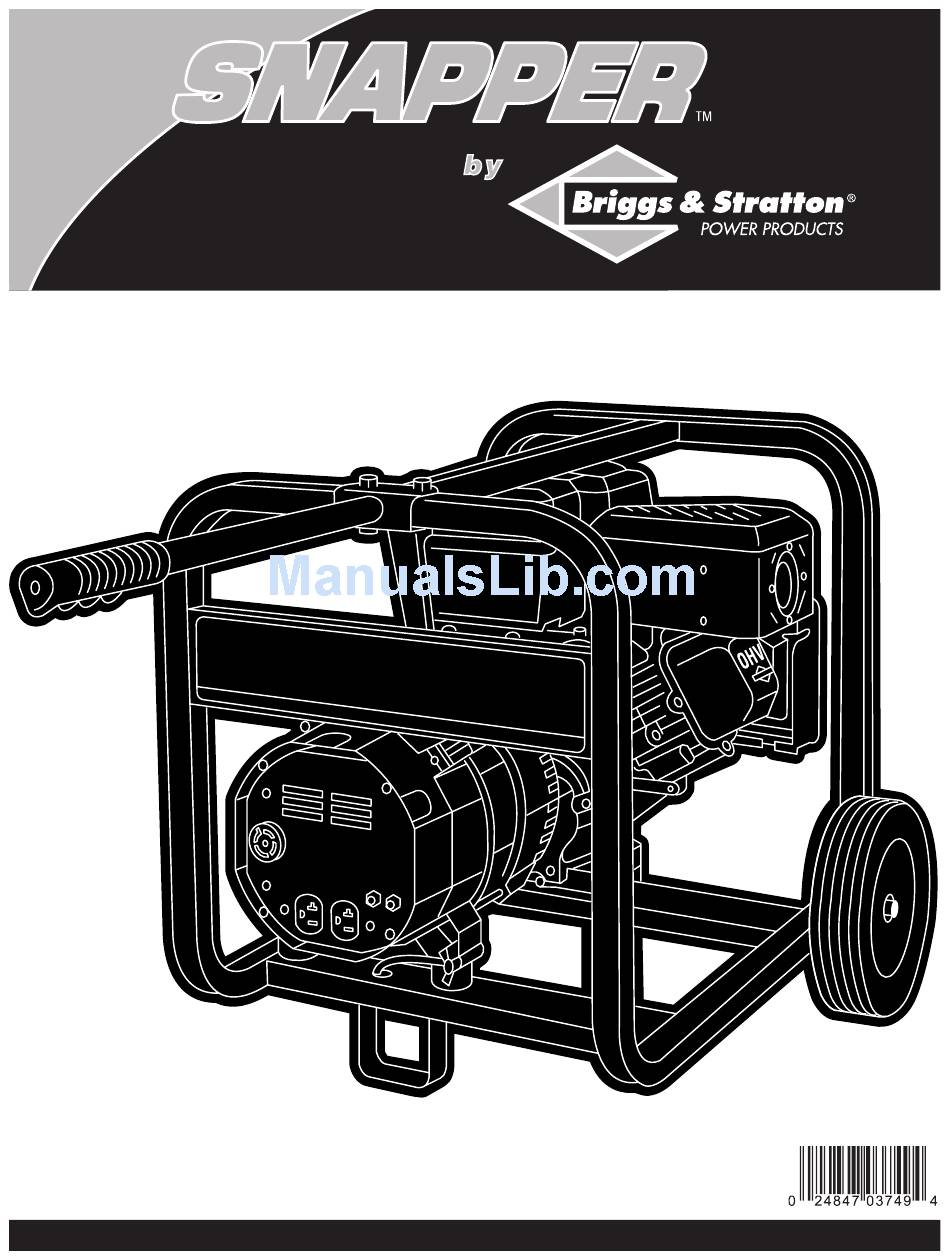

- Page 1 3250 Watt Generator Owner’s Manual Questions? Help is just a moment away! Contact your Local Snapper Service Center Web: www.snapper.com or www.briggsandstratton.com Model No. 1667-0 (3250 Watt AC Generator) Manual No. 190675GS Revision 3 (11/06/2003)
-
Page 2: Table Of Contents
Other states may have similar laws. Federal laws apply on federal lands. If you equip the muffler with a spark arrester, it must be maintained in effective working order. Snapper 3250 Watt Generator SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. - Page 3 • DO NOT allow any open flame, spark, heat, or lit cigarette during and for several minutes after charging a battery. • Wear protective goggles, rubber apron, and rubber gloves. Snapper 3250 Watt Generator Fuel and its vapors are extremely flammable and explosive.
- Page 4 • DO NOT tamper with governed speed. Generator supplies correct rated frequency and voltage when running at governed speed. • DO NOT modify generator in any way. Snapper 3250 Watt Generator CAUTION Exceeding generators wattage/amperage capacity can damage generator and/or electrical devices connected to it.
-
Page 5: Know Your Generator
Air Cleaner — Uses a dry type filter element and foam pre–cleaner to limit the amount of dirt and dust sucked into the engine. Snapper 3250 Watt Generator Recoil Starter Grounding Fastener Choke Lever — Used when starting a cold engine. -
Page 6: Install Wheel Kit
Retain wheel on axle stud with retaining pin. Install other wheel on remaining axle shaft the same way. Snapper 3250 Watt Generator Attach the vibration mount to the mounting leg with a capscrew and lock nut. Remove two front nuts from vibration mount on unit with 13mm wrench. -
Page 7: Using The Generator
• DO NOT handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet. • DO NOT allow unqualified persons or children to operate or service generator. Snapper 3250 Watt Generator OPERATING THE GENERATOR Exceeding generators wattage/amperage capacity can damage generator and/or electrical devices connected to it. -
Page 8: Stopping The Engine
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW) at 20 Amps of current. Use cord sets that are rated for 125 Volts at 20 Amps (or greater). Snapper 3250 Watt Generator Figure 3 — 120 Volt, 20 Amp Duplex Receptacle 120 Volt AC, 30 Amp Locking Receptacle Use a NEMA L5-30 plug with this receptacle. -
Page 9: Power Management
Permit the generator output to stabilize (engine runs smoothly and attached device operates properly. Snapper 3250 Watt Generator Plug in and turn on the next load. Again, permit the generator to stabilize. Repeat steps 4 and 5 for each additional load. -
Page 10: Generator Maintenance
KEEP OUT OF REACH OF CHILDREN. DON'T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL TO COLLECTION CENTERS. Snapper 3250 Watt Generator Generator Maintenance Generator maintenance consists of keeping the unit clean and dry. Operate and store the unit in a clean dry environment where it will not be exposed to excessive dust, dirt, moisture or any corrosive vapors. -
Page 11: Storage
• DO NOT place a storage cover over a hot generator. • Let equipment cool for a sufficient time before placing the cover on the equipment. Snapper 3250 Watt Generator Engine Storage See engine owner’s manual for instructions. Other Storage Tips •... -
Page 12: Troubleshooting
"bogs down" when loads are connected. Engine will not start; or starts and runs rough. Engine shuts down when running. Engine lacks power. Snapper 3250 Watt Generator Cause One of the circuit breakers is open. Fault in generator. Poor connection or defective cord set. -
Page 13: Notes
Snapper 3250 Watt Generator NOTES... -
Page 14: Schematic/Wiring Diagram
Snapper 3250 Watt Generator SCHEMATIC... -
Page 15: Wiring Diagram
Snapper 3250 Watt Generator WIRING DIAGRAM... -
Page 16: Exploded View – Main Unit
Snapper 3250 Watt Generator EXPLODED VIEW – MAIN UNIT... - Page 17 33 77816GS DECAL, Caution Hot Muffler 34 190675GS MANUAL, Owners 35 275092 MANUAL, Engine 36 93639GS DECAL, Danger 37 70644GS SCREW 38 23762GS WASHER 39 55199JGS WIRE, Ground, Panel 40 22129GS WASHER, Lock 900 NSP ENGINE Snapper 3250 Watt Generator...
- Page 18 Item Part # 95600GS 75475GS 94396BGS 94396FGS 23365GS 68759GS 38150GS 22264GS 51715GS 10 68868GS Snapper 3250 Watt Generator Description COVER, Control Panel SCREW BREAKER, Circuit BREAKER, Circuit WASHER OUTLET, 120V, 20A Duplex WASHER WASHER, Lock OUTLET, Locking, 120V AC, 30A...
- Page 19 93728GS 94222QGS 49808GS 190505GS B84910GS 75928GS 10 39287GS 11 52858GS 12 77395GS 13 47411GS 14 87841GS Snapper 3250 Watt Generator Description PIN, Retaining WHEEL STUD, Axle JAM NUT, Lock WASHER LEG, Mounting HANDLE, Lifting (Includes Item 9) GRIP, Handle SCREW...
- Page 20 SNAPPER™ OWNER WARRANTY POLICY Effective January 1, 2003 “This Snapper™ product is distributed under license to Briggs & Stratton Power Products. Briggs & Stratton Power Products will repair or replace, free of charge, any part, or parts of the equipment** that are defective in material or workmanship or both.
