Page 1: Illustrated Parts List
3500 Watt Generator Illustrated Parts List Snapper™ is a licensed trademark of Briggs & Stratton Power Products. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON, WISCONSIN, U.S.A. Model No. 030214 (3500 Watt AC Generator) Manual No. 195605A Revision D (09/05/2007) -
Page 2: Exploded View - Main Unit

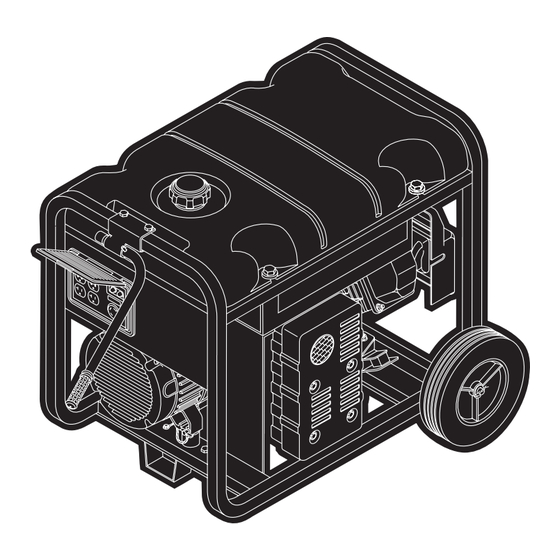

Snapper Model 030214 Portable Generator EXPLODED VIEW - MAIN UNIT Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power... -
Page 3: Exploded View Parts List
DECAL, Warning Exhaust 34 195422GS COVER, RBC, Plastic w/Cap 35 195207GS KIT, Hose Formed 37 B2153GS HHCS, 12 - 14 x 7/8" Self-Driller Snapper Model 030214 Portable Generator Item Part # 40 194398GS 41 192980GS 44 193645GS 45 200095GS 48 195373GS... - Page 4 EXPLODED VIEW AND PARTS LIST - ALTERNATOR Snapper Model 030214 Portable Generator Item Part # Description 186059GS ADAPTER, Mounting, Alternator 191685GS ROTOR 191686AGS STATOR 186060GS RBC, with O-Ring (p/n 189197GS) 86308GS HHCS, M6 - 1.0 x 115 SEMS 91825GS ASSEMBLY, Holder, Rectifier/Brush 66849GS TAPTITE, M5 - 0.8 x 16...
- Page 5 EXPLODED VIEW AND PARTS LIST - CONTROL PANEL * - Items without part numbers are common fasteners and are available at your local hardware store. Snapper Model 030214 Portable Generator Item Part # Description 195112GS KIT, Cover Control Panel 188889AGS...
- Page 6 EXPLODED VIEW AND PARTS LIST - WHEEL KIT Part Not Illustrated * - Items without part numbers are common fasteners and are available at your local hardware store. Snapper Model 030214 Portable Generator Item Part # Description 189715GS ASSY, Handle w/Grip...
