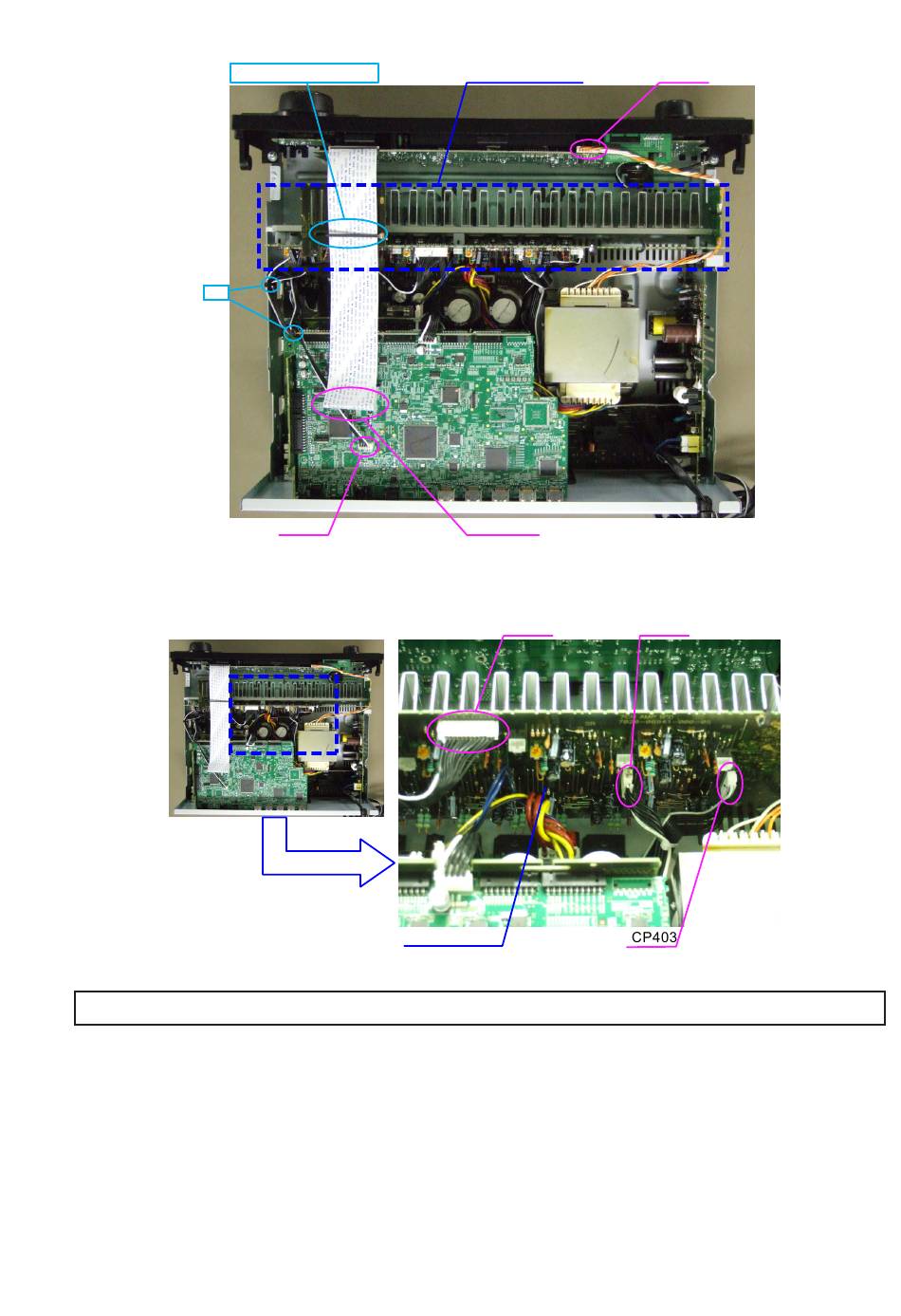

(3) Cut the wire clamp bands, then disconnect the connector wires and FFC cable.
RADIATOR ASSY
CP100
STYLE PIN : Loose
cut
N2706
FFC cable
(4) Disconnect the connector wires.
CP401
CP402
PCB 5CH AMP
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in RADIATOR ASSY.
