3. PCB REG CNT/PCB REG
Proceeding :
CABINET TOP
RADIATOR ASSY
PCB REG CNT/PCB REG
→
→

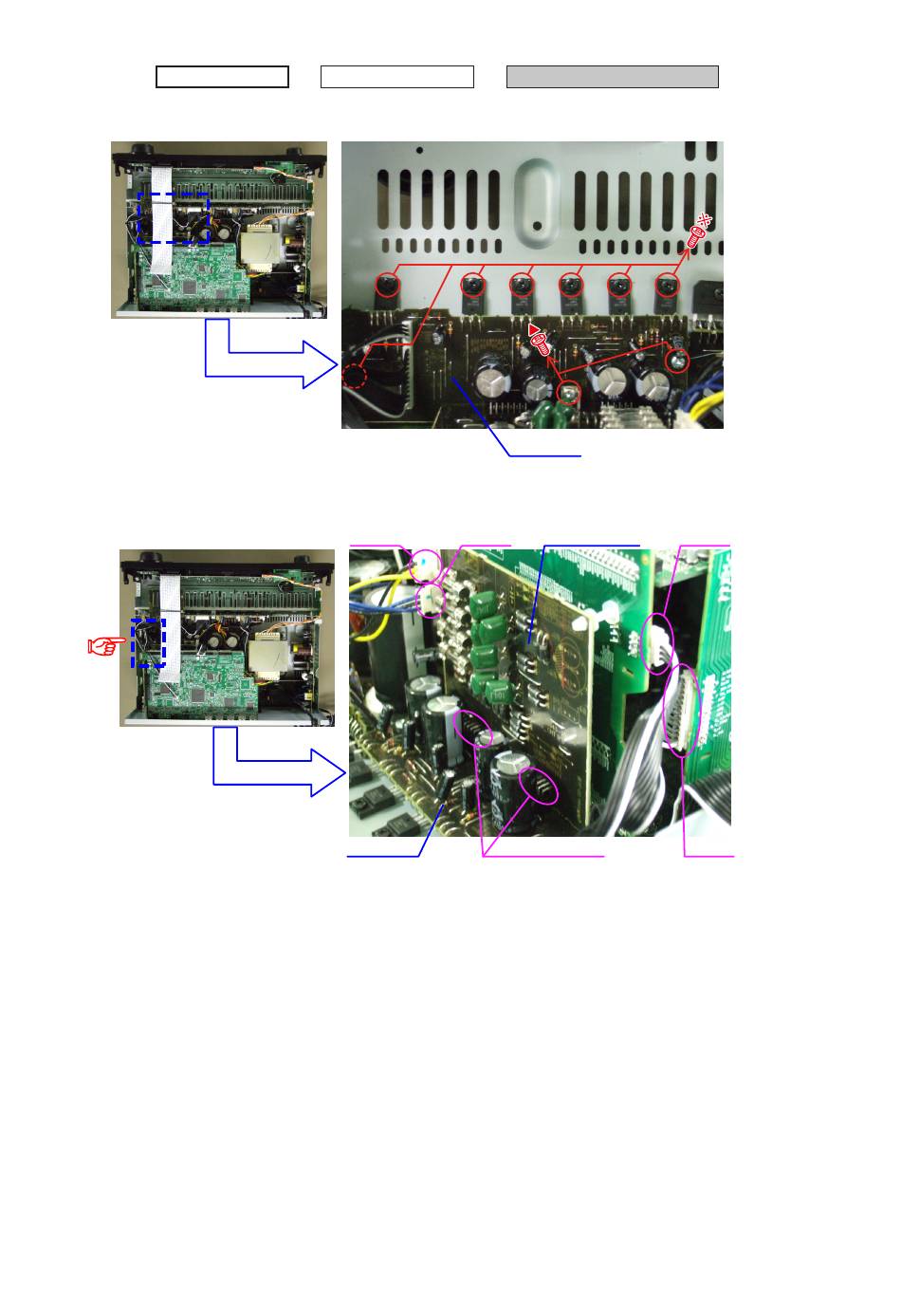

(1) Remove the screws.
PCB REG
(2) Disconnect the connector wires and connector board.
CP102
CP104
PCB REG CNT
CP13B
Direction of photograph: C
PCB REG
Board to board
CP13A
10
