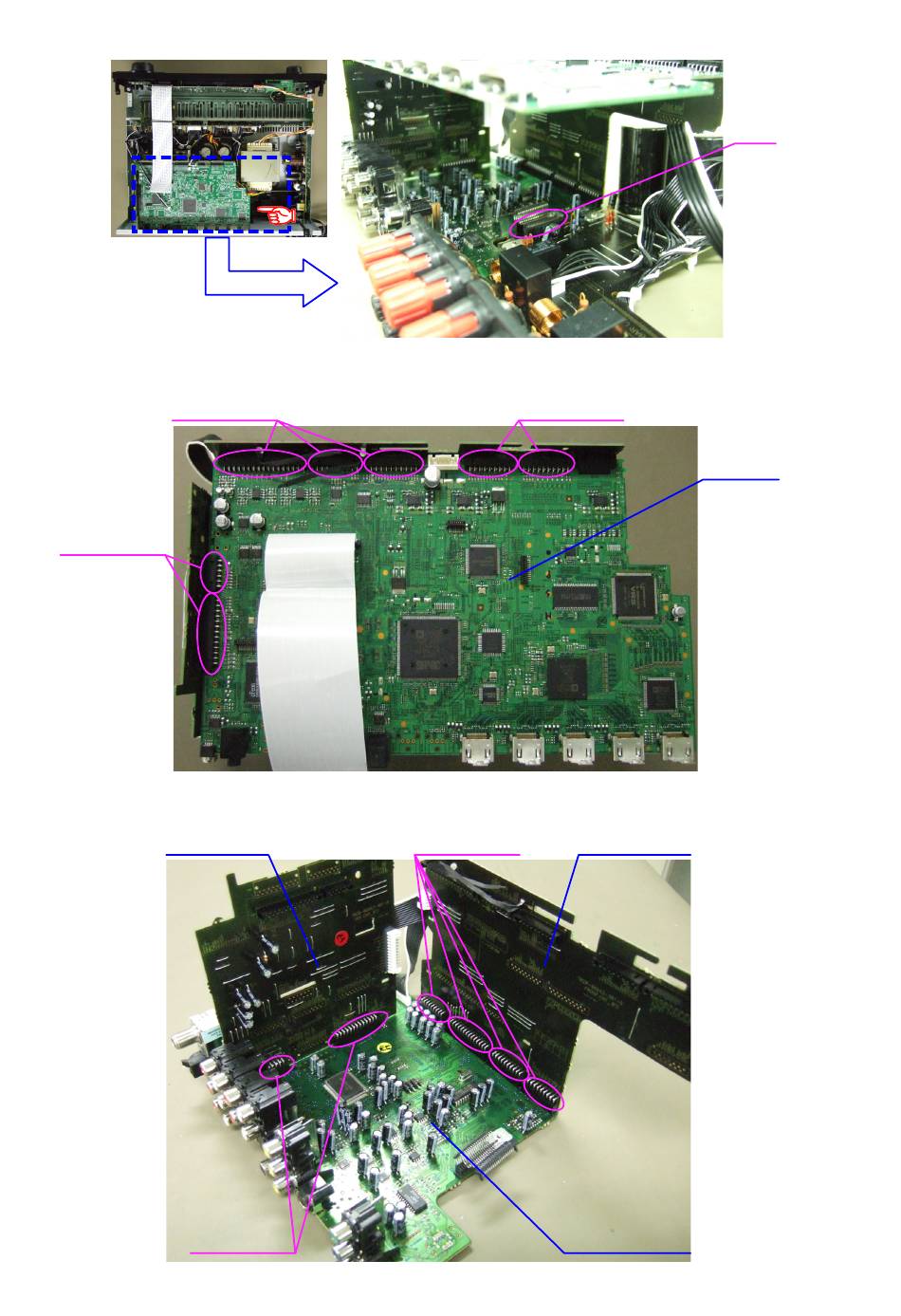

(4) Remove the connector, then remove the HDMI UNIT ASSY from the main unit.
CP12
Direction of photograph: D
(5) Disconnect the connector board.
Board to board
Board to board
PCB HDMI
Board to board
(6) Disconnect the connector board.
PCB SIDE CNT
Board to board
PCB FRONT CNT
Board to board
PCB AUDIO VIDEO
12
