5. PCB SPK/PCB SMPS
Proceeding :
CABINET TOP
HDMI UNIT ASSY
PCB SPK/PCB SMPS
→
→

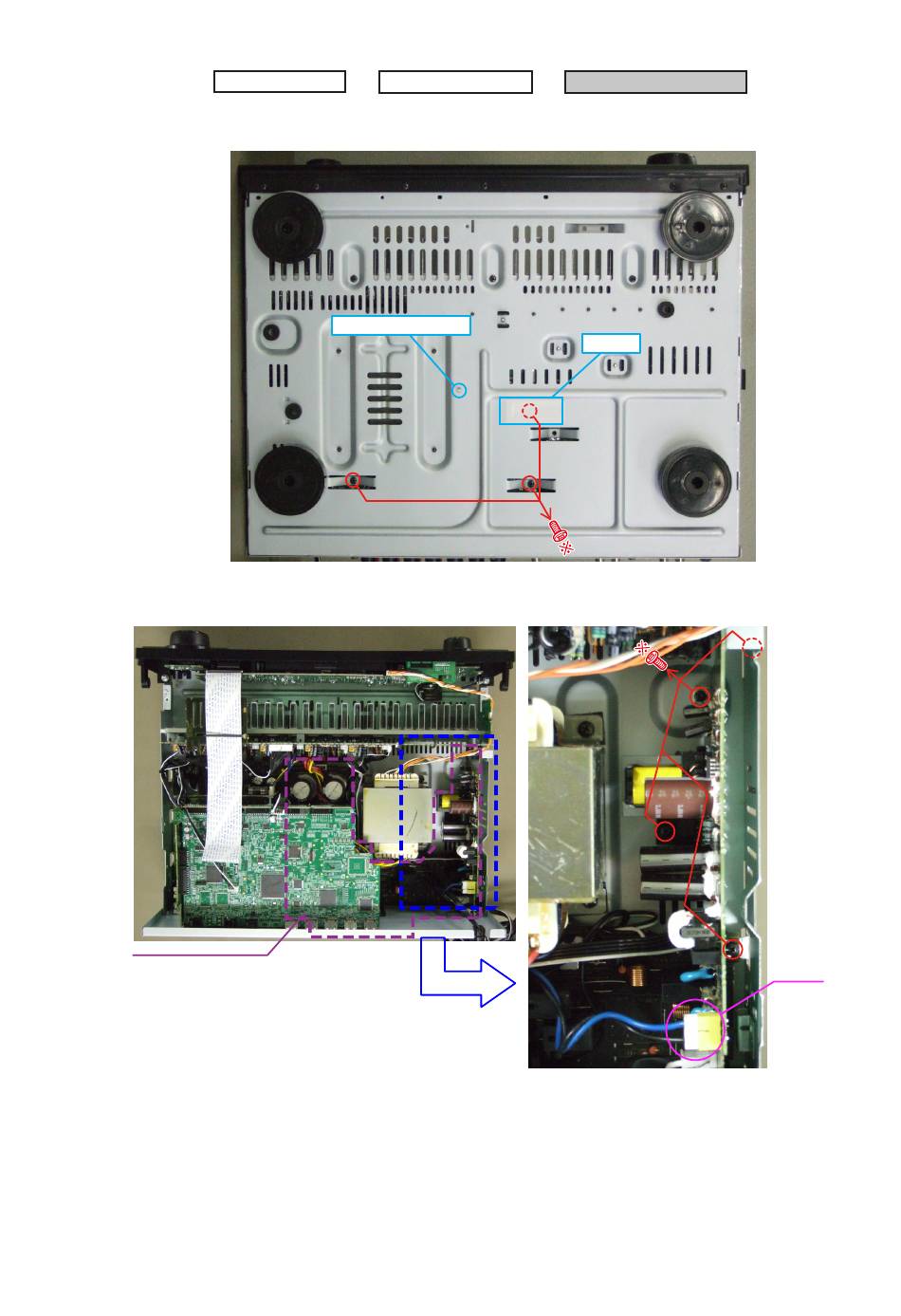

(1) Remove the Sheet, then remove the screws and SUPPORTER P.C.
SUPPORTER P.C.
Sheet
View from bottom
(2) Disconnect the connector wire, then remove the screws.
PCB SPK/PCB SMPS
CX102
13
