Snapper 01666-1 Illustrated Parts List page 3

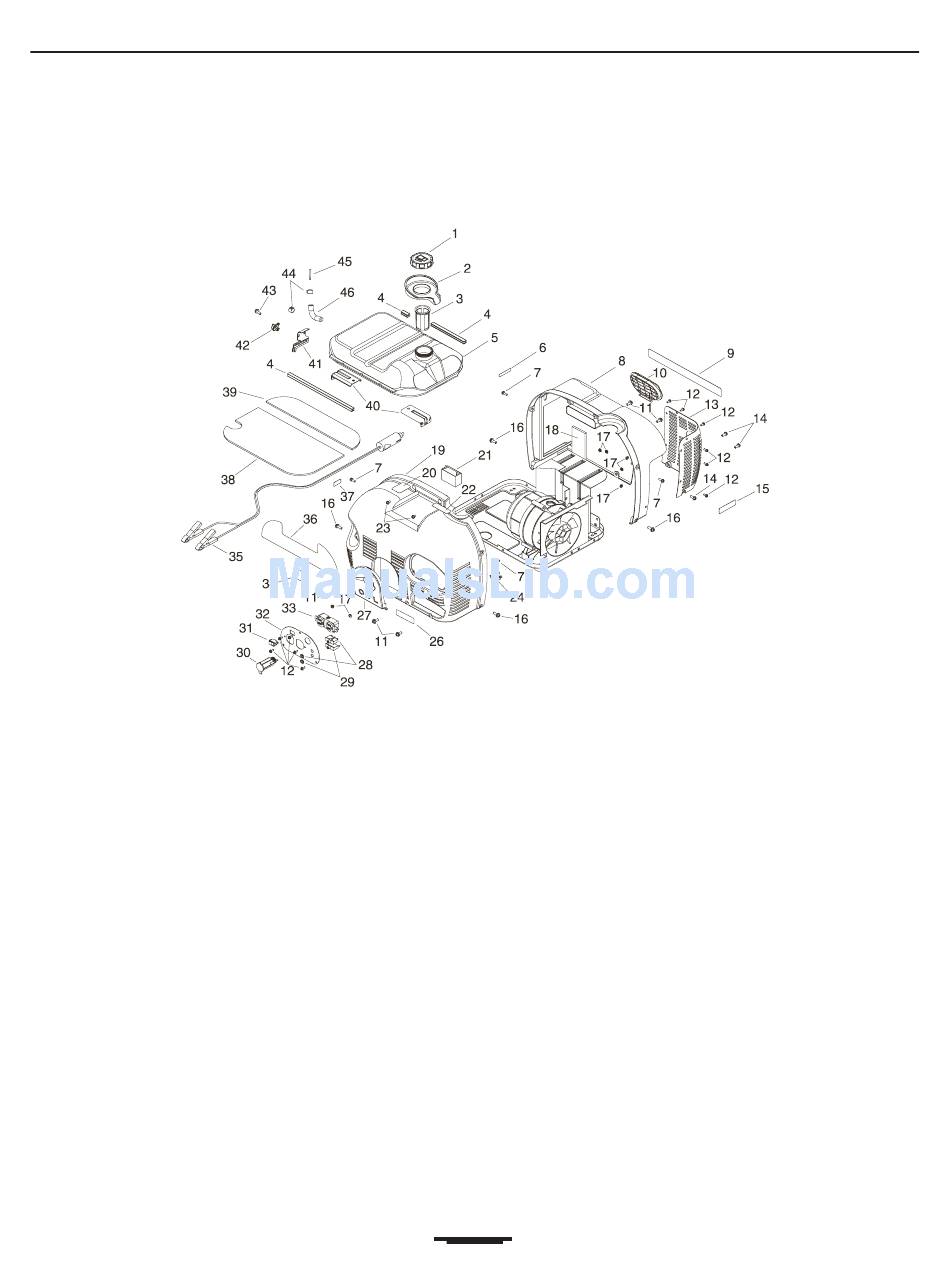

EXPLODED VIEW AND PARTS LIST – MAIN UNIT
Item Part # Description
1 187436GS CAP, FUEL
2 187439GS PACKING,TANK
3 187438GS FLTR, FUEL
4 187769GS U-PACKING
5 187437GS TANK, FUEL, 4.5L
6 187766GS DECAL, CHOKE
7 187756GS BOLT, COVER (M5-16)
8 187832GS HSG, GEN, MFFLR
9 190200GS DECAL,WARNING
10 187772GS COVER, SPARK PLUG
11 187757GS BOLT, COVER (M6-16)
12 187760GS PHMS, M4-12 W/FW
13 187435GS CVR, MFFLR, GEN
14 187775GS BOLT, MFFLR CVR (M6-16)
15 187768GS DECAL CAUTION HOT
16 187774GS BOLT, COVER (M6-20)
17 187761GS NUT, M4X0.6 W/FW
18 187463GS INSLTN, MFFLR
19 187833GS HSG, GEN
20 NSP DECAL, EMISSIONS
21 187457GS CONDENSER, 300V
22 187765GS DECAL, CAUTION FUEL
23 187759GS BOLT, COVER (M5-10)
24 187462GS DIODE, BRIDGE
26 190089GS DECAL, GEN, SNAPPER
G1000 Portable Generator
Item Part #
27 187773GS
28 196624GS
29 196623GS
30 187873GS
31 187450GS
32 187812GS
33 187456GS
34 187763GS
35 187876GS
36 190201GS
37 187764GS
38 187447GS
39 187448GS
40 187442GS
41 187758GS
42 187443GS
43 187770GS
44 187579GS
45 187440GS
46 187578GS
Items Not Illustrated
BB3061BGS
196735GS
MS6669
3
Description
COVER, OIL FILL
CB, DC
CB, 8A, 125V
OUTLET, ACCESSORY DC
SWITCH, ENG, ON/OFF
CPNL
RECPTCL, 15A, 125V
DECAL, CAUTION OIL
CABLE, BATTERY CHARGE
DECAL, MODEL
DECAL, FUEL SHUTOFF
INSLTN, HTSHLD,TANK #1
INSLTN, HTSHLD,TANK #2
BRKT,TANK, FUEL
BRKT, FUEL COCK
COCK, FUEL
PHMS, M5-10 W/FW
CLIP, FUEL HOSE
FLTR, FUEL
HOSE, FUEL
BOTTLE, Oil
MANUAL, Owners
MANUAL, Engine
