Snapper 01666-1 Illustrated Parts List page 2

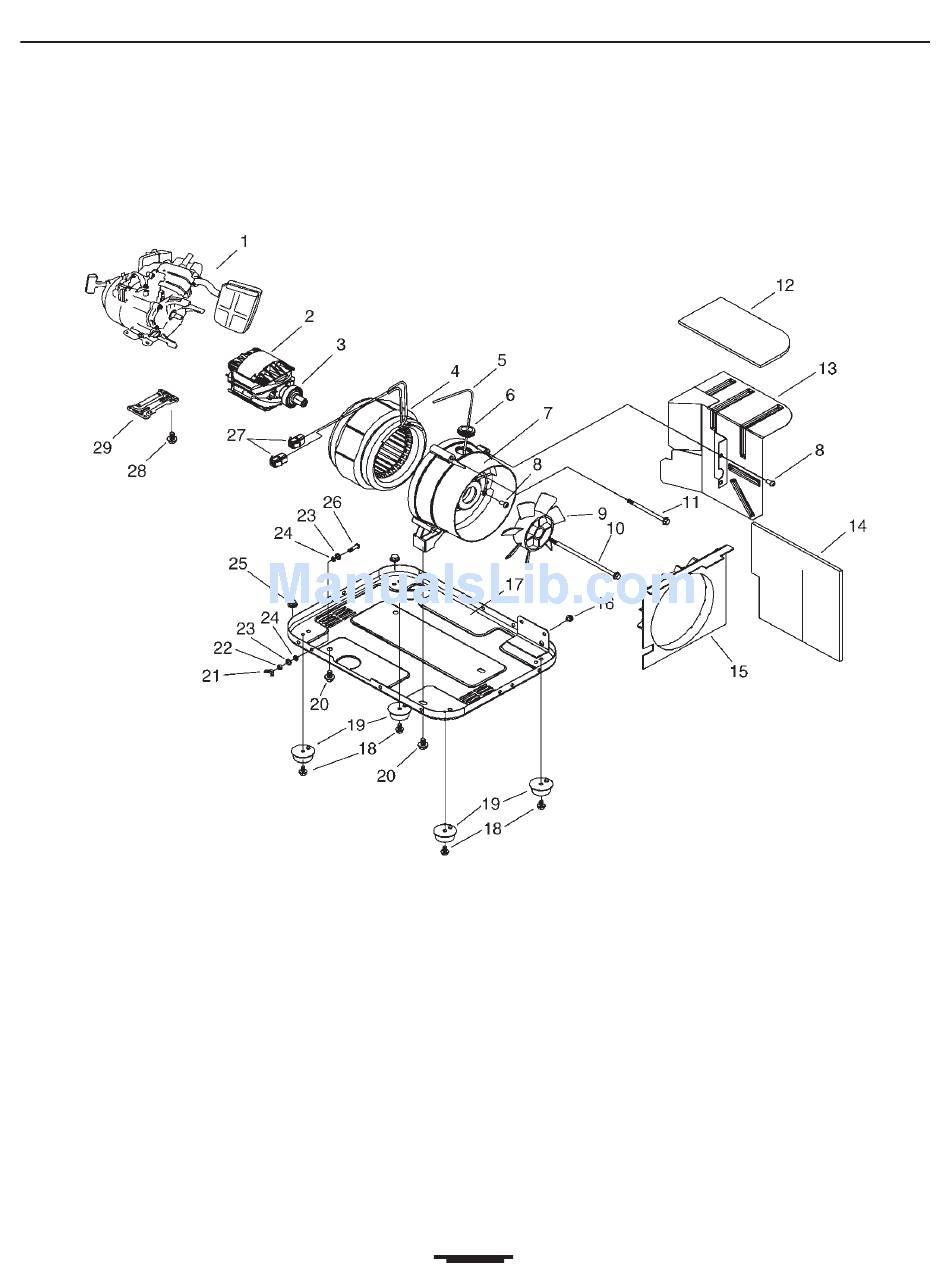

EXPLODED VIEW AND PARTS LIST – MAIN UNIT
Item Part # Description
1 § ENG, 2.4HP (050032-0113-E1)
2 187378GS ROTOR
3 187411GS BRG
4 187379GS STATOR
5 187430GS LEAD, GREEN
6 187409GS BUSHING, LEAD WIRE, G790B
7 187381GS RBC, 1K
8 187399GS SCREW, SELF TAP, M6-12
9 187382GS FAN, COOLING
10 187388GS BOLT, RTR
11 187389GS BOLT, STATOR
12 187405GS INSLTN, HEAT SEALED, #1
13 187384GS MFFLR, SEALED
14 187407GS INSLTN, HEAT SEALED, #2
15 187403GS DUCT, AIR
G1000 Portable Generator
Item Part #
16 187392GS
17 187383GS
18 187390GS
19 187385GS
20 187427GS
21 187424GS
22 187423GS
23 187419GS
24 187420GS
25 187401GS
26 187415GS
27 187413GS
28 187434GS
29 187431GS
§ - Contact Engine Manufacturer
2
Description
PHMS, M6-1.0,W/L/FW
BASE, GEN
BOLT, FLNG, M6-1.0 X 10
MNT,VIBR
HHCS, FLNG, M8-1.25 X 12
NUT,WING, M5 X 0.8
NUT, M5 X 0.8
WSHR, LOCK
WSHR, FLAT
NUT, M8-1.25, FLANGE
PHMS, M5-0.8 X 20
CNNCTR
HHCS, FLNG
STND, ENG
